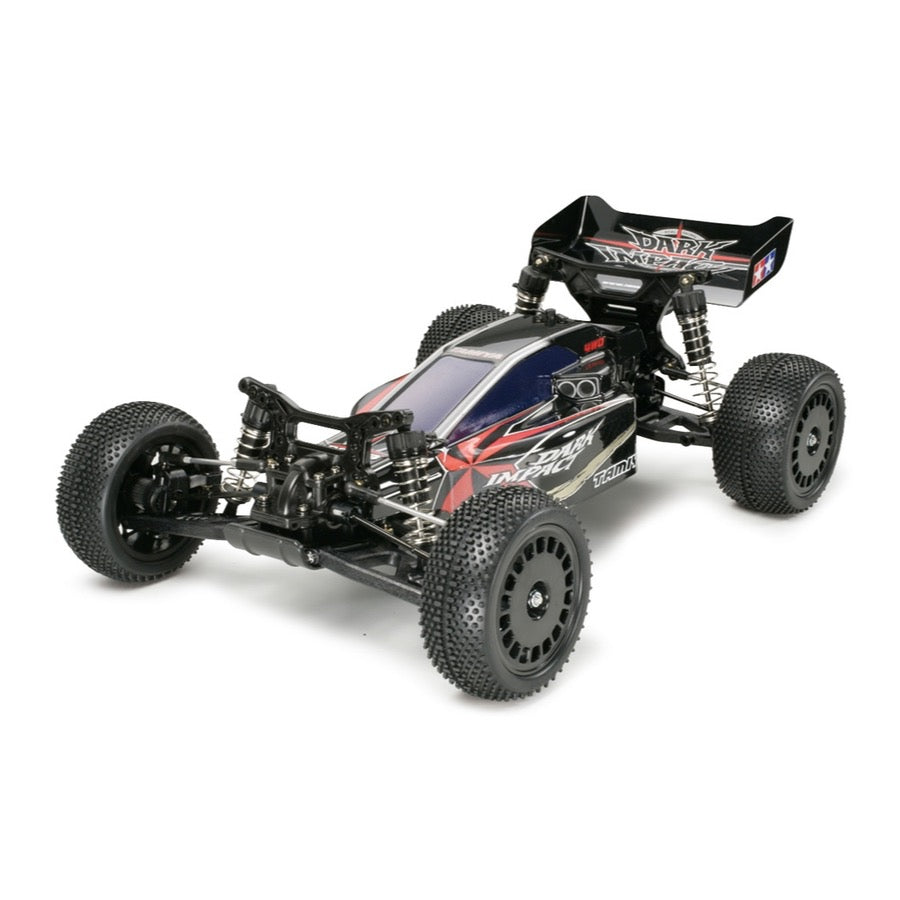

Tamiya Dark Impact Off-Road RC Kit

Born & Bred on the Circuit

Even while still in prototype form, the Dark Impact was already hitting the track at competitions as part of the research and developement process. Using Tamiya's traditional shaft-driven chassis formula, the Dark Impact features a highly efficient drivetrain and optimized vehicle balance. Its stylish slim body styling includes a large rear wing for maximum downforce and combines with high-density spike tire K at all four corners for stable off-road performance.

DF-03: Refined Shaft-Drive 4WD Chassis

Durable monocoque bathtub frame sees the heavy battery and R/C mechanism components mounted low and central for the best vehicle balance. Even the oil dampers are located within the wheelbase for greater stability and cornering performance. Compact gearboxes are equipped with ball differentials, and the propeller shaft directly links to the front bevel gear to decrease power loss during transmission. 4-wheel double wishbone suspension with long suspension arms provides excellent shock absorption, and a variety of attachment positions gives the driver many options when tuning.

Features

• High performance 1/10 4WD buggy chassis designed for off-road running.
• 4-wheel independent double wishbone suspension features CVA oil dampers and extra-long suspension arms for improved stability and handling
• Sealed diff gearbox indispensable for off-road running
• Features full ball bearings
• Electronic Speed Controller (Not Included)
• 540 type motor
• Newly designed off-road tires and wheels featured larger diameter and width, and new tread pattern designed for excellent running and control on hard dirt tracks
• Tires: High Density Spike Tires K (4WD/Front, 62/25), High Density Spike Tires K (Rear, 62/35)
• Wheels: Large Dish Wheels (4WD/Front, 62/25), Large Dish Wheels (Rear 62/35)
• 2.94 internal gear ratio.

Requires

• 2-channel radio
• Steering servo
• ESC
• 7.2volt battery pack with compatible charger
• Tamiya PS paint
