Get Metal!

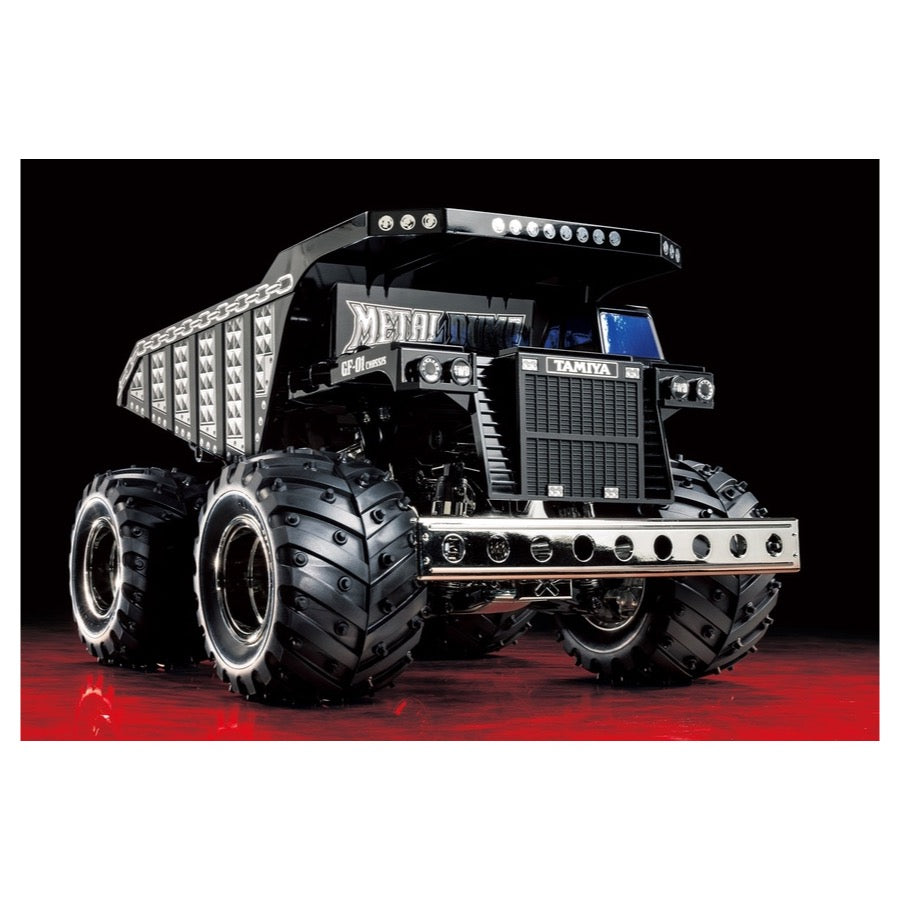

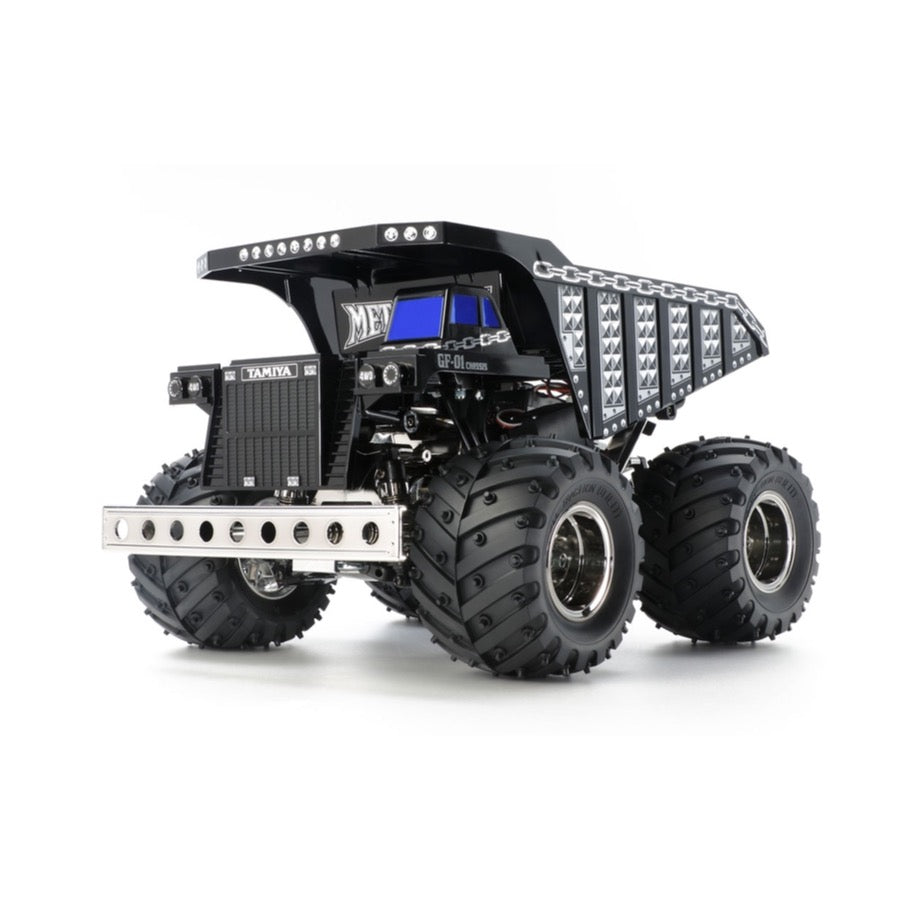

Dump trucks earn their living in some of the toughest workplaces around: large-scale construction sites, mines and quarries to name but a few. This R/C model assembly kit has a unique and exciting color scheme: rather than the yellow typical of such construction vehicles, it is black-based with numerous chrome-plated parts. The cab and rear bed are molded in black, and metallic stickers are provided to depict logos and markings including stud and chain motifs, to give the model some real attitude. Chassis monocoque, front bumper, rear support bar with roller and wheels are all chrome-plated. Spike tires round off the look.
GF-01: Square Set-up, Excellent Performance
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. It utilizes a 'square' setup with similar tread and wheelbase lengths. Sealed gearbox is integrated into the frame and protects from dust and debris, while the built-in front and rear differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension and friction dampers plus a 2-piece tie rod steering setup with the servo on the left for excellent response. Furthermore, it has chrome-plated wheels to match the chassis, fitted with big 115mm diameter soft compound lug pattern spike tires, plus a rear support bar with roller to prevent the model from flipping.
- An extensive image overhaul includes black cab and rear bed parts, now combined with new metallic stickers.

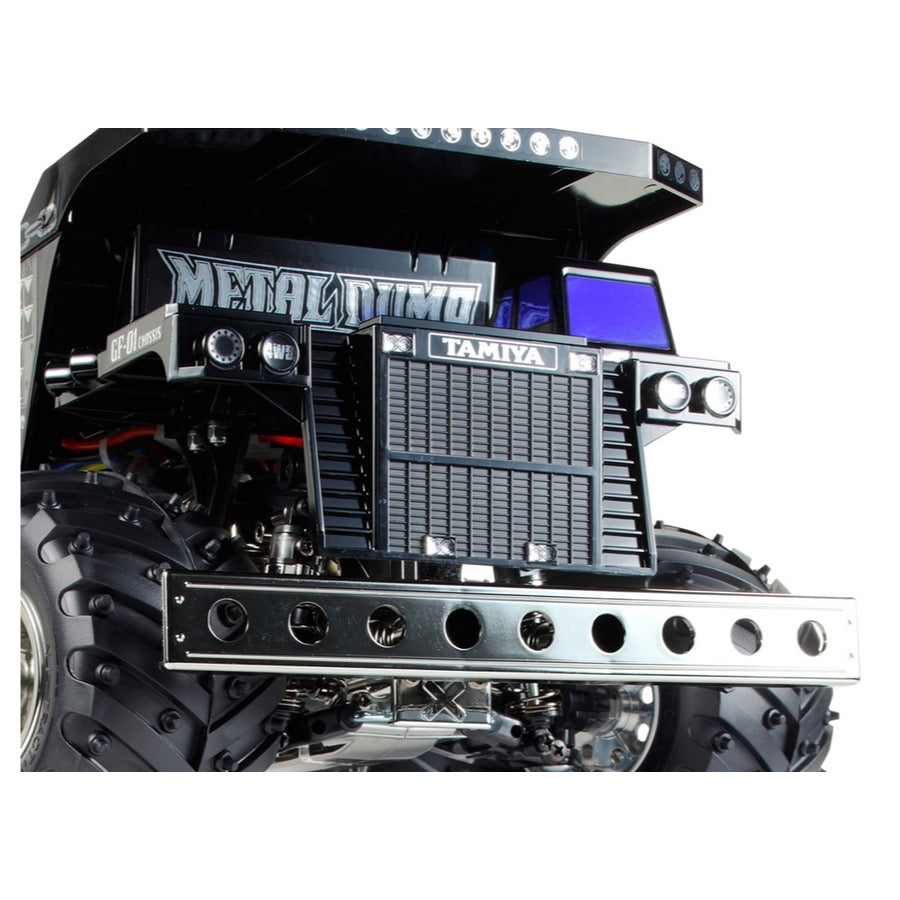

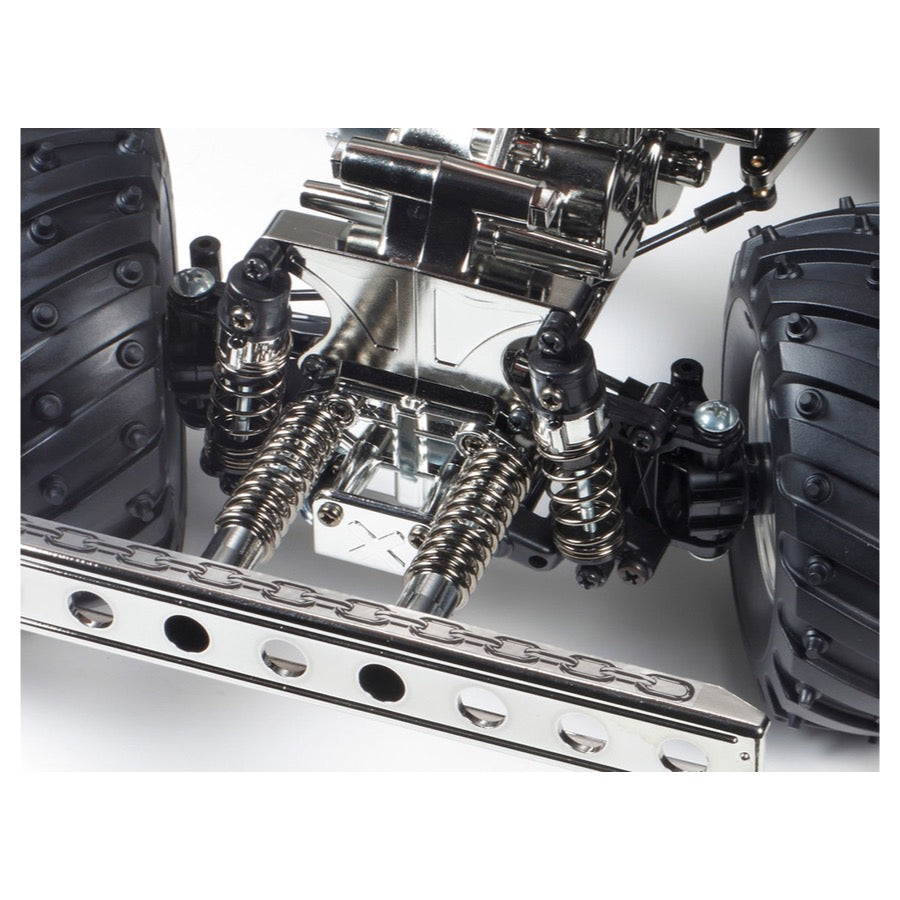

- Stable 4-wheel double wishbone suspension comes with friction dampers. The bumper is chrome-plated.

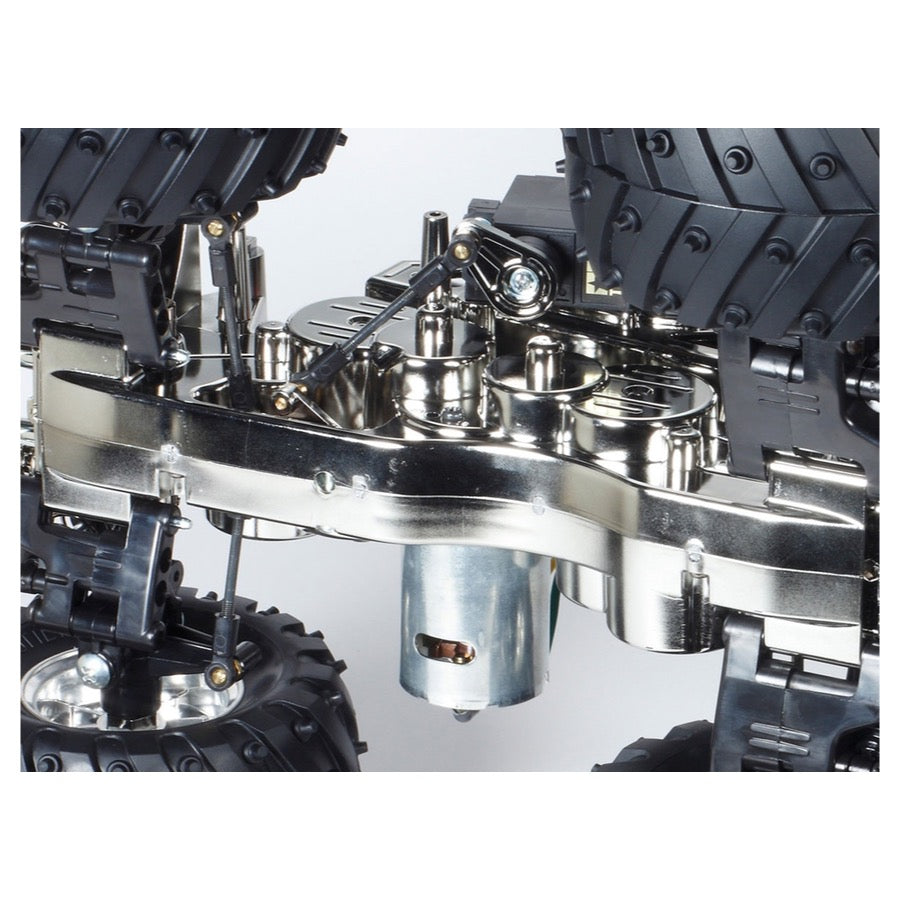

- The gleaming chrome-plated monocoque, pictured with steering servo and 2-piece steering tie-rod.

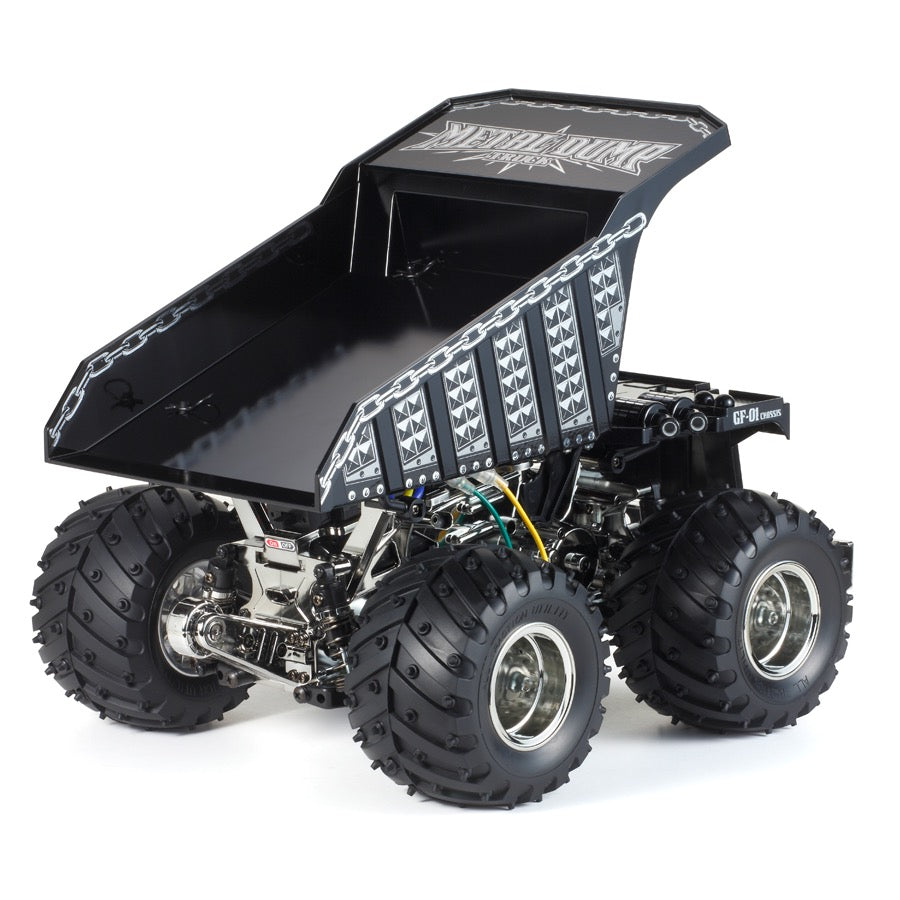

- The twin stay parts can be used to display the model with its rear bed posed in the raised position.
Features
- 1/24 scale 4WD R/C model assembly kit.
- Cab and rear bed are injection-molded in black plastic.
- Alternate rear bed between flat and raised positions by changing the position of the two stays and snap pins in the body mounts. Note: It is not advised to put objects in the rear bed, or drive the model with it raised.
- Metal-plated wheels.
- Tire Width/Diameter: 68mm/115mm
- The 4WD GF-01 chassis monocoque and (stays, bumper, wheelie bar, etc.) are metal-plated.
- The sealed gearbox is integrated into the frame, while the built-in differential gears provide smooth cornering.
- 4-wheel double wishbone suspension with friction dampers.
- The 'square' setup chassis uses similar tread (194mm) and wheelbase (174mm) lengths.
- Torque-tuned motor included.
- Monocoque Frame
- Gear-Driven 4WD
- Gear Ratio = 18.03:1
Includes
Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
Requires
2-channel radio, steering servo, and 7.2volt battery with compatible charger.
