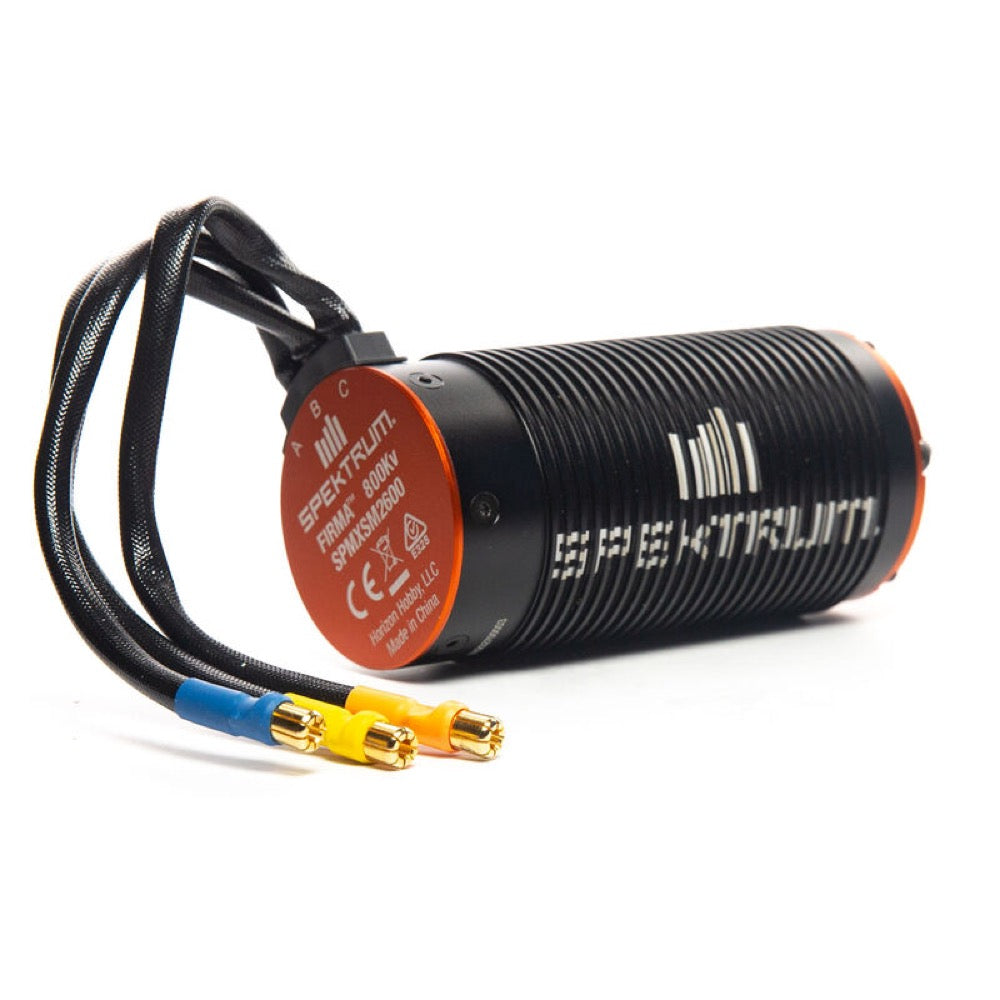

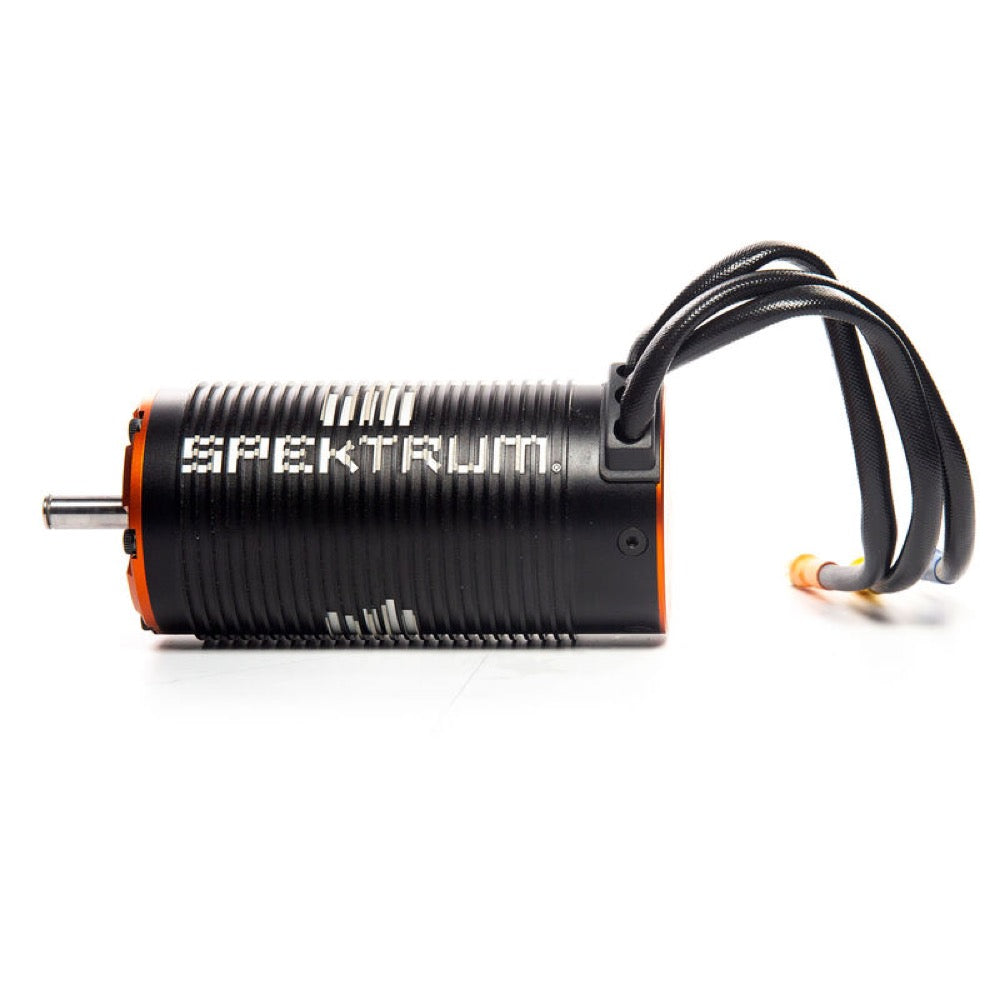

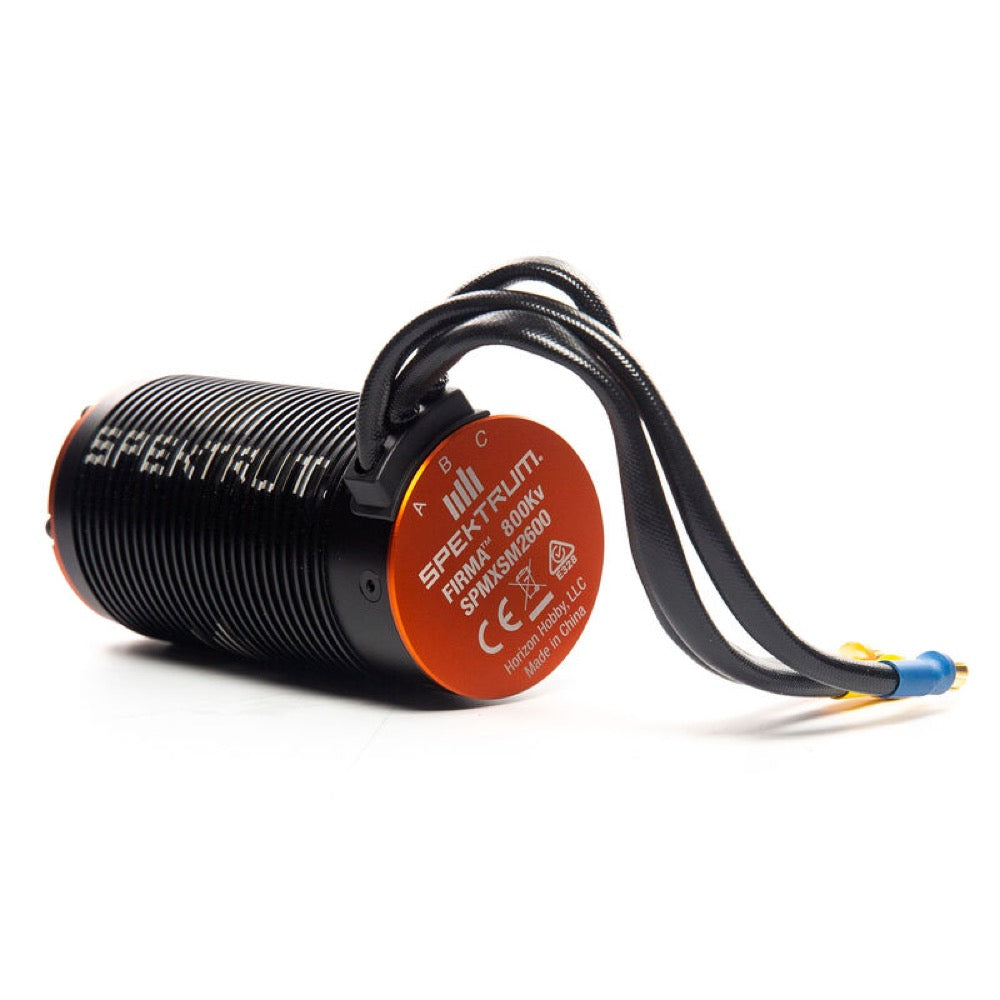

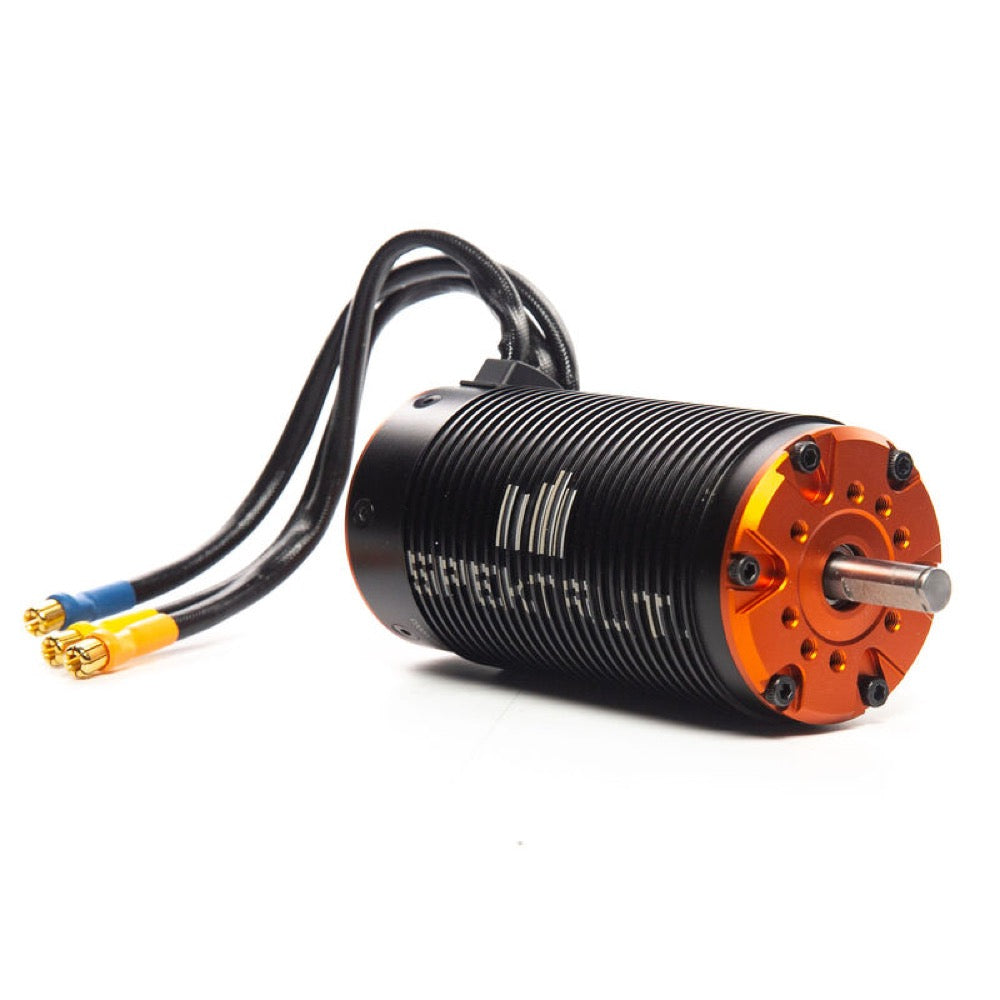

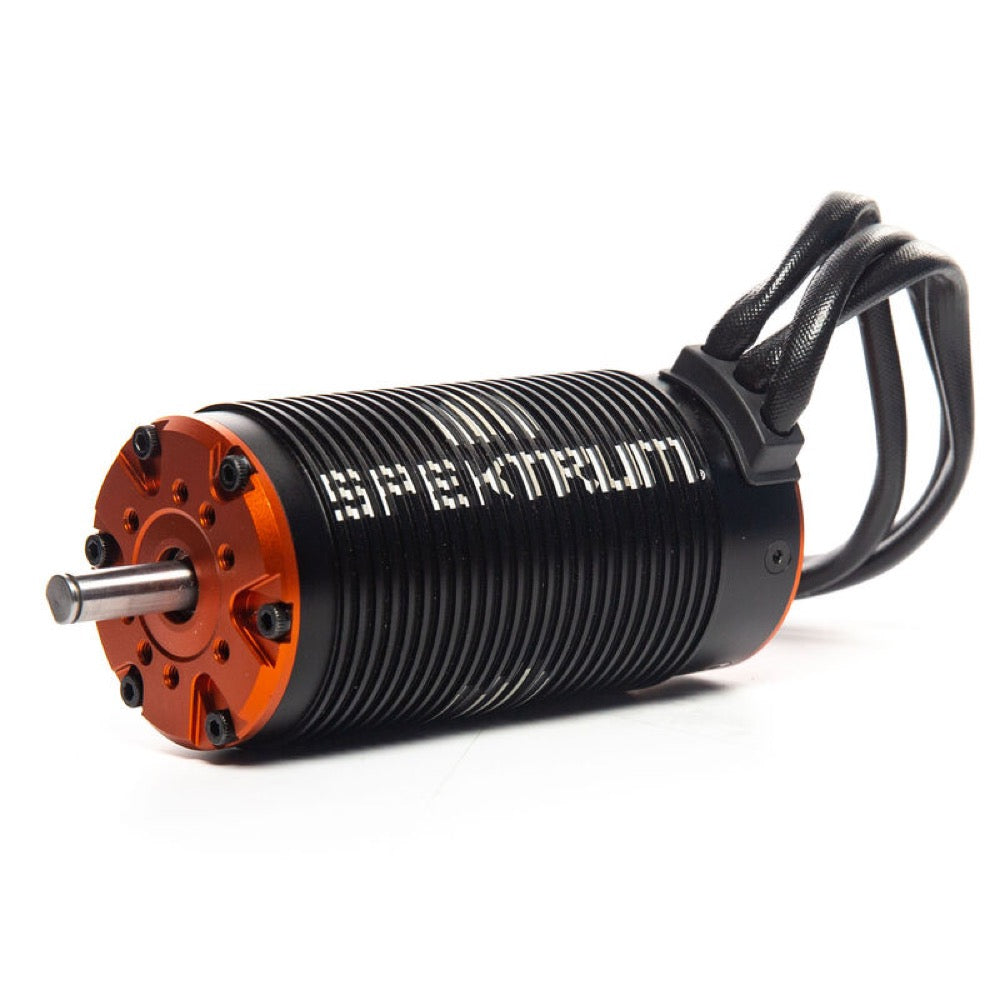

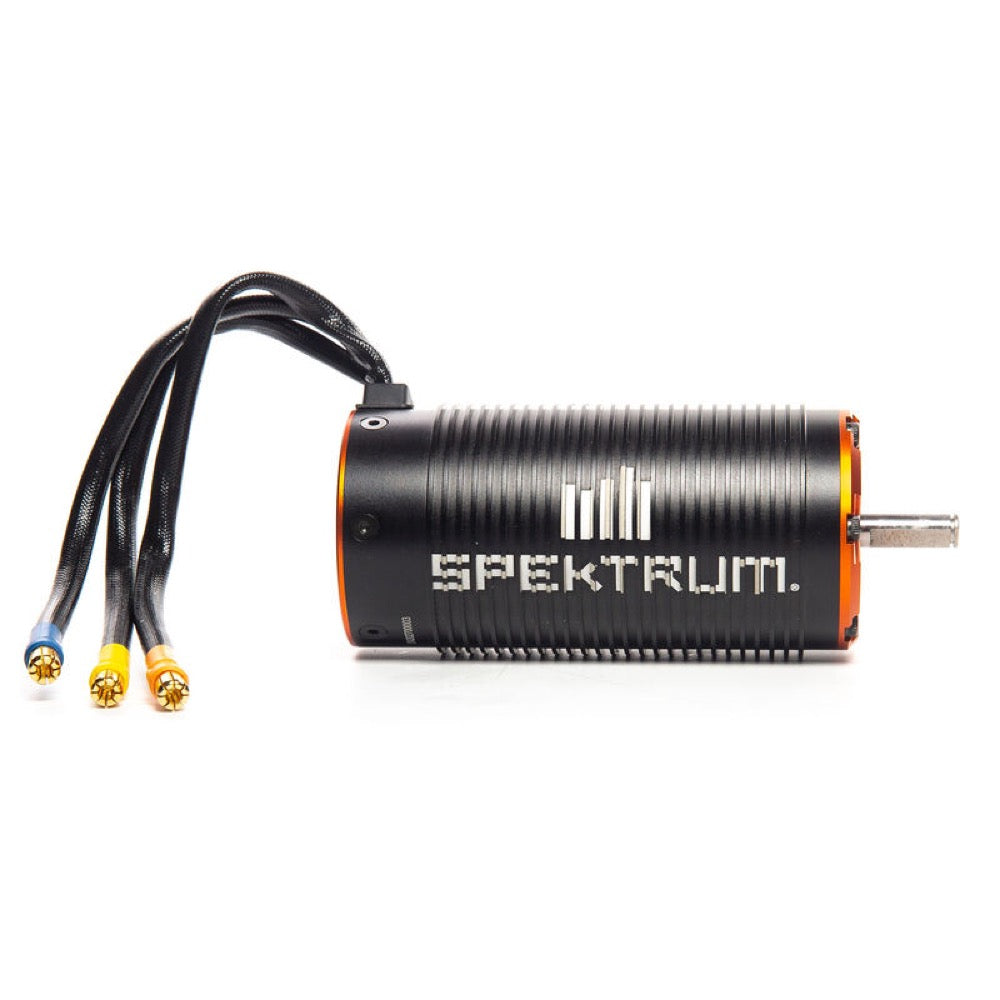

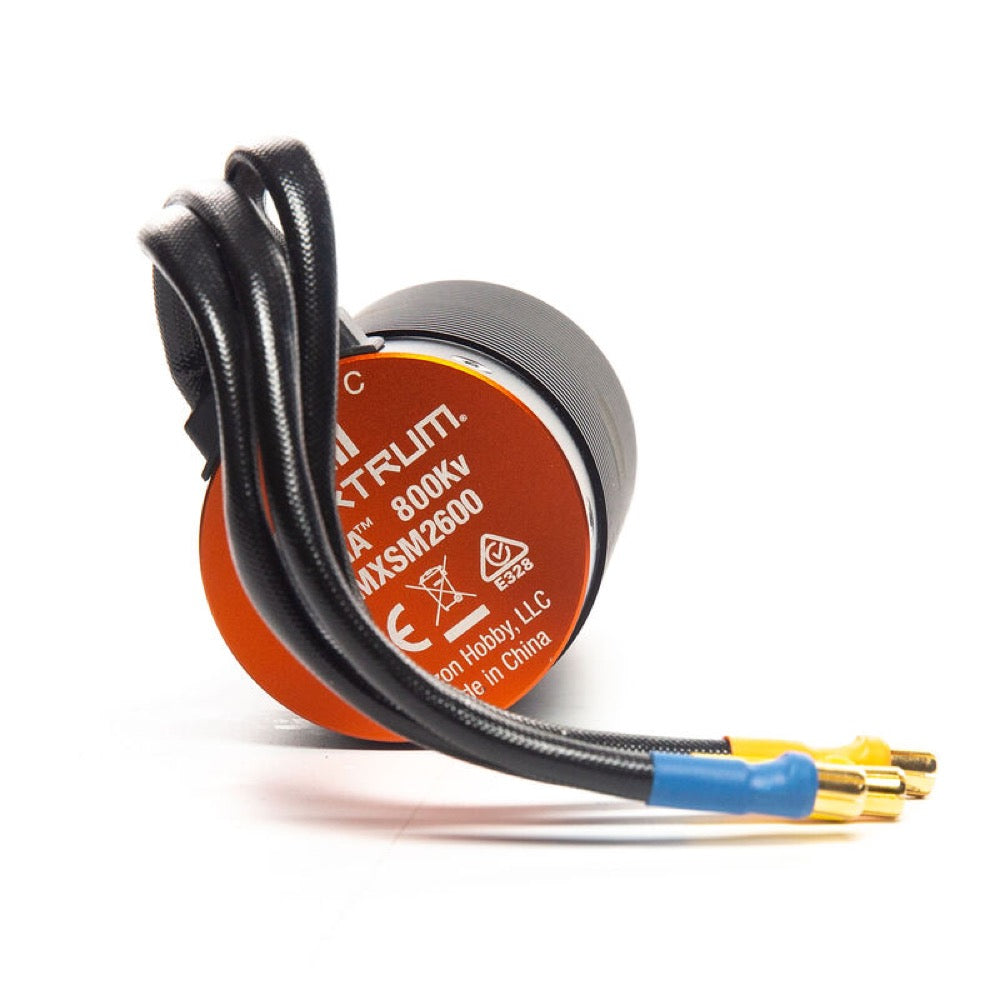

Spektrum SPMXSM2600 Firma 800Kv 4-pole BL Motor

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

• Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
• High efficiency design
• 8S LiPo power capable
• High-quality 4-pole sintered rotor
• 6.5mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 8mm shaft
• Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Specification

• Adjustable Timing: No
• Application: Arrma Roller Kits
• Bushing Or Bearing: Bearing
• Connector Type: 6.5mm Bullet
• Connector Wire Length: 7.48" (190 mm)
• Constant Wattage: 3000W or more
• Efficiency: 87%
• Input Voltage: 11.1 - 29.6V (3 - 8S)
• Integrated ESC: No
• Kv Rating: 750-999Kv
• Maximum Continuous Current: 110A
• Motor Class: 1/5 Scale
• Motor Design: Inrunner
• Motor Output Lead: 6.5
• Motor Size: 5611
• Number of Poles: 4
• Outer Diameter: 2.2" (56 mm)
• Product Length: 4.4" (112 mm)
• Product Weight: 39.86oz (1130g)
• Recommended Speed Control: Spektrum Firma 160A Brushless Smart
• Resistance: .0049 ohms
• RPM/Volt (Kv): 12,475 / 15V
• Sensor Type: Sensorless
• Shaft Diameter: 0.3" (8 mm)
• Shaft Length: 0.867" (22 mm)

Contents

• Firma 800Kv 4-Pole Brushless Motor

Requires

• 160A ESC
