SPEKTRUM (105)

Pilots and drivers enjoy more Smart benefits with Spektrum™ Smart G2 100C LiPos. Not only are charging parameters and performance data stored and uploaded automatically to Smart chargers, but no balance lead is needed — just one easy IC® connection! Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 100C LiPo batteries to power their vehicles. New "Generation 2" features make these LiPo packs — featuring a 100C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger. For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required. Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Smart G2 30C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations. As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest. Spektrum™ Smart G2 100C LiPo batteries store a wide variety of essential information, including:  Battery Brand Battery Type Battery Capacity Battery C Rating Individual Cell Voltage Battery Temperature Charge/Discharge Cycles Spektrum™ Smart G2 LiPo 100C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 100C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology! Note: Smart G2 batteries require the use of a Spektrum Smart Charger. Update your Spektrum Smart Charger for all the latest advancements in Smart Technology. Features Simpler and safer to use Powerful 100C continuous discharge rating to deliver maximum performance and longevity 100C battery packs are available in a variety of capacities and cell counts that are perfect for almost any application Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance Thicker internal metal side plates protect cells and improve heat dissipation Integrated microchip stores unique parameters for each battery IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles Spektrum Smart Charger Required Smart Battery Technology — One Smart Connection When connected to a Spektrum™ Smart charger, a Smart G2 battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically, and no separate balance lead is needed Data Rich An integrated microchip allows each Smart G2 battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready to go out and have fun Smart Auto Storage Discharge Spektrum™ Smart G2 batteries practically take care of themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The results are longer battery life, better performance over the life of the pack and peace of mind that your Smart battery comes maintenance-free. The battery's Auto Storage settings can be changed by the user based on preferences. Simple and Quick Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum™ Smart G2 battery to your Smart charger, making charging as simple as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect. IC3® and IC5® Connectors The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there's no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious. 100C Performance Spektrum Smart G2 100C LiPos come in a variety of popular sizes and are ready to drop into your RC car or boat for maximum performance, power, and reliability. These battery packs are a great upgrade for those looking to get more punch and off the line power on nearly any setup. Specification Application: Surface Auto Storage: Yes Battery Balance Connector: Smart G2 Battery Type: LiPo (3.7V per cell) Battery Voltage: 7.4V Capacity: 5000mAh Cell Configuration: Flat Charge Protection Circuitry: Yes Connector Type: IC5 Discharge: 100C Hard Case: Yes Material: Hard Case Maximum Burst Discharge Rate: 100C Maximum Charge Rate: 5C Normal/Standard Charge Current: 5A Normal/Standard Charge Rate: 1C Number of Cells:2 Product Application: Surface Product Height: 0.98" (25 mm) Product Length: 5.45" (138 mm) Product Weight: 11.99oz (340g) Product Width: 1.8" (46 mm) Roar Approved: No Smart Technology: G2 Technology Watt Hours: 37 Wire Gauge: 10 AWG

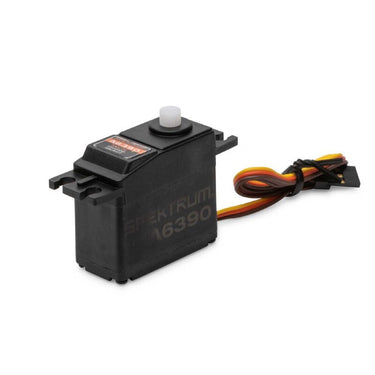

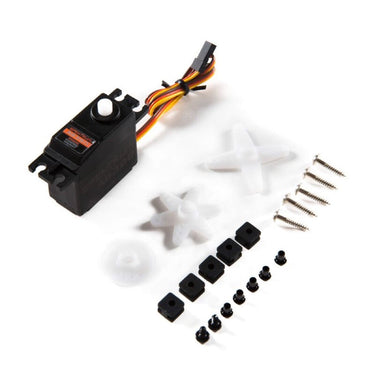

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project. Specs Application: Air Bearing: Single Bushing Or Bearing: Bearing Connector Type: Universal Connector Wire Length: 12" (305 mm) Deadband: 3µs Gear Type: Nylon Input Voltage: 4.8V to 6.0V Material: Plastic Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V Maximum Servo Torque: 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V Product Application: Air Product Height: 1.36" (35 mm) Product Length: 1.52" (39 mm) Product Weight: 1.3oz (37g) Product Width: 0.74" (19 mm) Programmable: No Rotation Range: 120 deg Servo Operating Voltage: 4.8 - 6.0V Servo Size Category: Standard Servo Type: Analog Spline Count: 23 - Tooth Water-Resistant: No Wire Gauge: 22 AWG

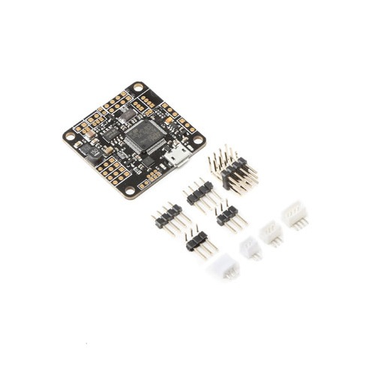

Spektrum has combined a state of the art F4 processor with proprietary Raceflight One firmware to bring you the cutting edge in FPV racing performance. Featuring an integrated 5v regulator, pilots will no longer worry about providing regulated power to your flight controller. The Spektrum F400 flight controller makes wiring the receiver simple by only needing one connection for power, signal, and telemetry information. Pair it with a SPM4649T Serial Telemetry receiver and the pilot can feed all available telemetry data to their Spektrum radio transmitter. The processer in the Spektrum F400 is capable of a lighting fast 180MHz update speed; giving the pilot uncompromised speed, precision, and power. Connect the F400 Raceflight Flight Controller with a 32KHz capable ESC for optimal performance. Features Compatible with all Spektrum receivers, and other brands (Futaba, Frsky, Etc) No Built in SBUS Inverter Ready for the New SPM4649T Telemetry Quad Racing Receiver for Full Telemetry Output Support Standard form Factor 36mm x 36mm Mounting holes: 30.5mm squared to center hole RaceFlight One dedicated support and Development High Speed 32khz gyro Leading Edge F4 Processor LED Driver for WS2812b programmable LED ESC flashing and configuration built into configurator Built in 5V Regulator, 2 – 6S battery input Dedicated port for Spektrum Telemetry laptimer 16mb Flash Memory for Black Box

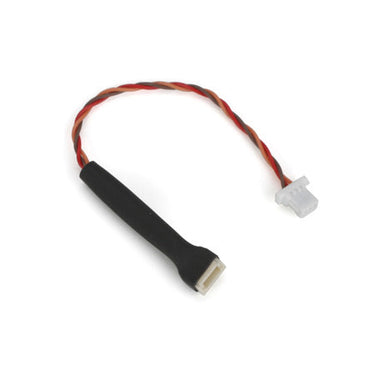

Overview The AS2000 Servo Reverser installs between the AR6400 Receiver (SPMAR6400) and the optional AS2000 servo (SPMAS2000) to reverse the direction of travel.

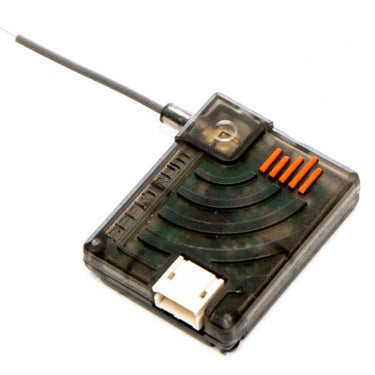

The next generation of Spektrum remote receivers are here with the SPM9745 and SPM9746 Receivers. Featuring a user friendly antenna setup that allows for the antenna to be placed in 2 positions, making installation into those tight projects easier than ever. Fully compatible with DSMX and DSM2 Transmitters*. Use these to add more receiving points on any Spektrum receiver that has 1 or more Remote receiver ports. The remote receiver includes one 24-inch extension; however, various lengths of receiver extensions can be purchased allowing various placement options for mounting purposes. Additional remote receiver extensions are available in 6", 9", 12", 24" and 36" lengths. *DSMX Remote Receivers must be used with a DSMX Main Receiver. Repositionable Antenna This antenna design allows for easy repositioning with the option to exit the case from the side or top. It also offers added strain relief to the antenna wire, and is optimized to fit into the tightest of Remote control aircraft. Features Case design offers better strain relief on antenna lead DSMX with DSM2 Backward compatibility* 22ms and 11ms Compatible Upgrade for any Spektrum receiver with available remote receiver ports Great addition to AR636, AR7350, AR9350, Telemetry Receivers and PowerSafe receivers Includes 24 inch extension

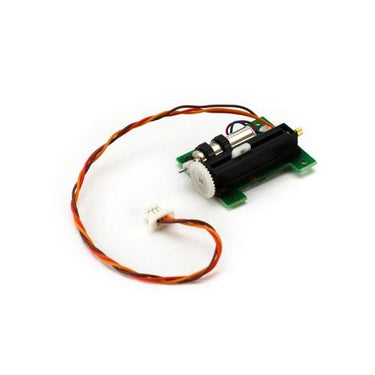

PRODUCT SPECIFICATIONS Size Category:Specialty Type:Analog Application:Ultra-micro helicopter, cyclic Torque:11.6 oz (329 g) force Speed:0.13 sec end-to-end Length:0.9 in (24mm) Width:0.7 in (19mm) Height:0.4 in (9mm) Weight:0.1 oz (2.9 g) Bushing Or Bearing:Bearing Bearing:Single Motor Type:Brushed Connector Type:JST-SHR 1.0mm Gear Type:Nylon Voltage:3.2 - 4.2V

7.4V 1400mAh 2S 30C Smart G2 LiPo Battery: IC2 Connector

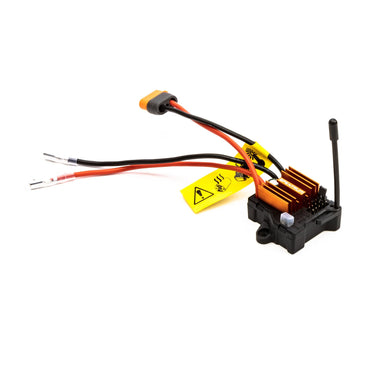

40 Amp Brushed 2-in-1 ESC and SLT Receiver Specifications Output Connector: 3.5mm Brushed Bullet Product Weight: 1.83oz (52g) Water-Resistant: No Product Width: 1.49" (38 mm) Connector Type: 4mm Bullet,IC3 Product Length: 1.77" (45 mm) BEC Voltage: 5V Input Voltage: 2S lipo, 6-7 cells NiMH Product Height: 1.37" (35 mm) Maximum Continuous Current: 40A

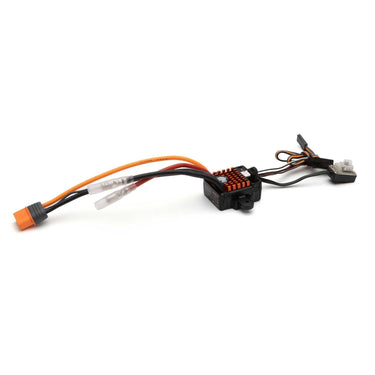

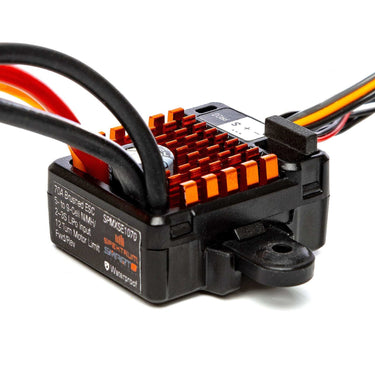

The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers. Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable. Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best. With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as temperature, battery voltage and capacity. Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior! Features Smart all-in-one telemetry Smart Lite functionality Provides Spektrum Smart ESC data such as input voltage, esc temperature, esc amperage, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data. Integrated LED light power outputs for simple installation without the need of additional receiver ports 70 Amp continuous power – ideal for 1/10 scale crawlers and scalers 2S-3S LiPo Compatible Multiple options for easy programming: Smart ESC Programming Box SmartLink USB Updating and Programmer application Programming from Transmitter via Text Gen Telemetry Waterproof ESC* Multi-point protection: Over-current protection Automatic LiPo low-voltage cutoff Thermal protection Failsafe protection Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer Compact for easy installation in most applications Ready to install — no soldering required Aluminum heat sink for high efficiency Adjustable high-power BEC (6V or 7.4V, 4amp) Firmware updatable through the Smart ESC Programming Box High heat-resistant IC™ connectors, backwards compatible with EC™ connectors Limited 1-year warranty PRO-LEVEL DRAG BRAKE ADJUSTMENT The Spektrum Firma 60 amp Brushed Smart ESC features a huge range of drag brake adjustability, allowing for drivers to expertly tune their models depending on their driven train and vehicle weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is perfect for tuning your crawlers and scalers for expert level rock crawling performance. WATERPROOF The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water. ONE-WIRE TELEMETRY No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including voltage, temperature, balance, capacity, and speed.** MULTIPLE PROGRAMMING OPTIONS Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed! SMART TECHNOLOGY BATTERY DATA When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more! *Please see manual for Waterproof Usage Guidelines Contents (1) Spektrum Firma 70A Brushed Smart ESC (2) Light Strings (red and white) (1) Product Manual Requires Spektrum™ Surface Receiver 540 – 550 size Brushed motor 2S or 3S Lipo Battery with EC3 or IC3 Connector Spektrum Transmitter

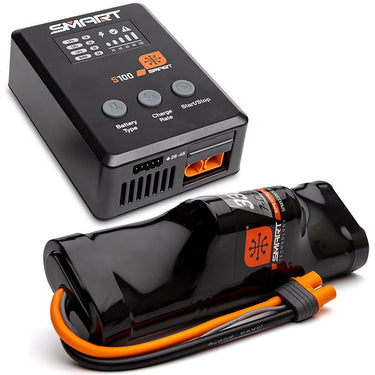

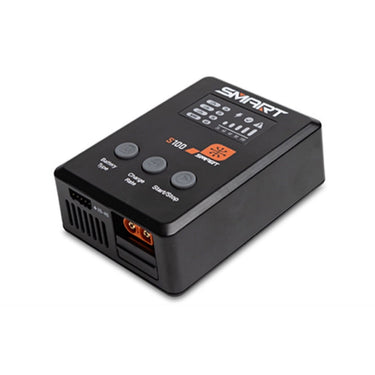

The Spektrum™ Smart Powerstage™ Bundle is a one-box solution for vehicles requiring top performance, offering the total package with the ease of use of Smart Technology, less hassle, and maximum fun. Spektrum Smart technology Powerstage bundles bring the latest Smart technology in one package for first-time drivers and enthusiasts. With the Smart Powerstage bundles, users get the most advanced and easiest-to-use battery and charging technology. Features Advanced, user-friendly Smart charging technology that fits into any hobby budget Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features) Includes an efficient, low-noise cooling fan Sleek, sturdy case fits nicely on a workbench and in pit or field bags Integrated microchip stores unique parameters for the battery Automatic charging ensures safe and accurate charge parameters Internal Battery Temperature Monitor helps guarantee safe Charging and Discharging Save time and hassle while improving battery life. No soldering required, equipped with IC3 Connectors that are compatible EC3. Spektrum™ S100 1x100W USB-C Smart Charger With its up to 100W power, new user interface, and ability to fast charge Smart batteries on the IC3® or IC5® integrated output port, the S100 charger offers a versatile and hassle-free charging experience. You can charge virtually any RC battery with the S100 charger. Use it together with the included 8.4V 3300mAh NiMH Smart battery, and you'll be amazed by its incredible functionality and performance. The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and automatically begins safe, correct charging when the charge lead is connected. Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required. Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. All you need is a common USB-C power adapter, and you're ready to go. Spektrum™ 8.4V 3300mAh 7-Cell Smart NiMH Hump Battery: IC3 You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When the 8.4V 3300mAH NiMH Smart battery is connected to the S100 Spektrum Smart charger, unique parameters and health of that Smart battery upload from the Smart memory microchip integrated into the battery. The 3300mAh Smart NiMH battery is factory assembled with the next-generation IC3 output connector conveniently compatible with older devices equipped with robust EC3™ and connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious. Spektrum Smart NiMH batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. Contents (1) S100 1x100W USB-C Smart Charger (SPMXC2090) (1) 8.4V 3300mAh 7-Cell Smart NiMH Hump Battery: IC3 (SPMX33007C3H)

The Total Package For beginner pilots who purchased a Blade®, HobbyZone®, or E-flite® Ready-to-Fly Basic model, the best way to complete their purchase is with the new Spektrum™ Smart Air Powerstage™ bundles. The latest in RC battery charging technology, the new Spektrum™ Smart Air Powerstage™ bundles offer the complete package for top performance with less hassle and maximum fun. Spektrum Smart technology G2 Powerstage bundles bring the latest Smart technology in one package for first-time pilots and enthusiasts. With the Smart Air Powerstage bundles, users get the most advanced and easiest-to-use battery and charging technology. Features A money-savings one-box solution for RTF Basic aircraft The Smart Air Powerstage Bundles will complete the purchase of RTF Basic aircraft and makes them ready to fly Smart Technology is the easiest to use and safest battery charging technology available and completes the Smart Technology ecosystem in RTF Basic aircraft that features an Avian or telemetry capable ESCs with one-wire telemetry Smart Battery Technology When connected to a Spektrum™ Smart charger, a Smart battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically. Smart Auto storage discharge ensures a longer battery life. Smart Auto Storage Discharge Spektrum™ Smart G2 batteries practically take care of themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The results are longer battery life, better performance over the life of the pack and peace of mind that your Smart battery comes maintenance-free. Simple and Quick Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum™ Smart battery to your Smart charger, making charging as simple as plugging in the pack. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.

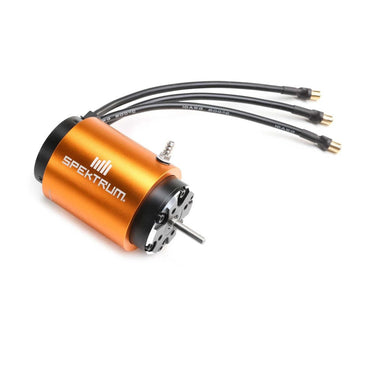

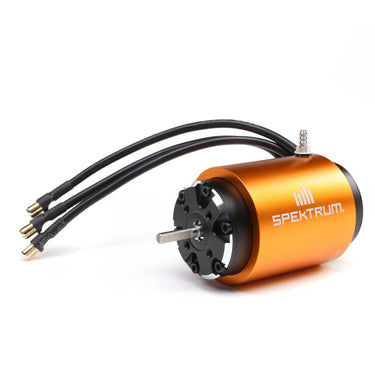

Spektrum 4685 4 pole Brushless Marine Motor 1350Kv Motor Type: Brushless Water-Resistant: Yes RPM/Volt (Kv): 1350Kv

The Spektrum™ One Piece Battery Adapters are simple solutions to mismatched plug types. For hobbyists who require the flexibility to use batteries with different connectors, these adapters offer solid and reliable connections between normally incompatible components. Each is a single piece, low resistance, gold plated adapter. Additionally, each adapter contains an internal Smart connection wire on IC connectors. These adapters are a great solution for Chargers, Cars and Trucks, Airplanes, Boats, Drones and more! Features Simple, small, and convenient Allows for solid and reliable connection between mismatched components Compatible with EC2, IC2, EC3, IC3, EC5 and IC5 plug types* Contains internal Smart connection wire on IC connectors One-piece adapter NOTE: IC2 battery is not compatible with EC2 device

Adapter: IC5 Battery / 5mm Male Bullets with 6" wire: 2S/4S Smart Pro Race Batteries

Connector: IC5 Battery Bulk (25) Specification Connector Type: IC5

Features Adapts PH/UMX connector 2S 7.4v LiPo batteries to common “Red JST” JST-RCY Battery Connector
