Spektrum SPMSA5080 A5080 Mid Torque High Speed Mini Digital HV Servo

A5080 Mid Torque Mid Speed Mini Digital HV MG Servo

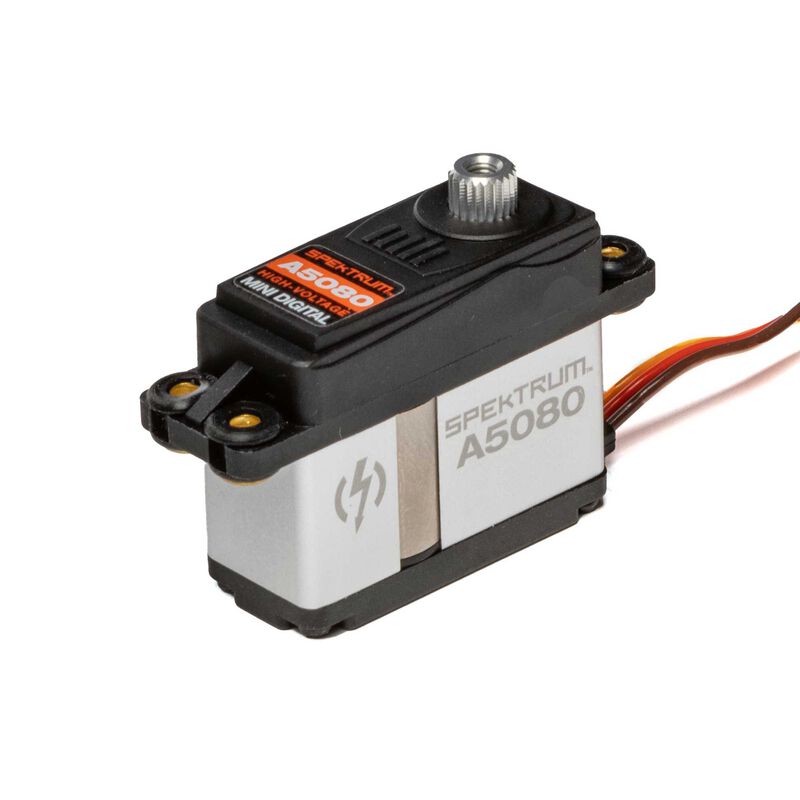

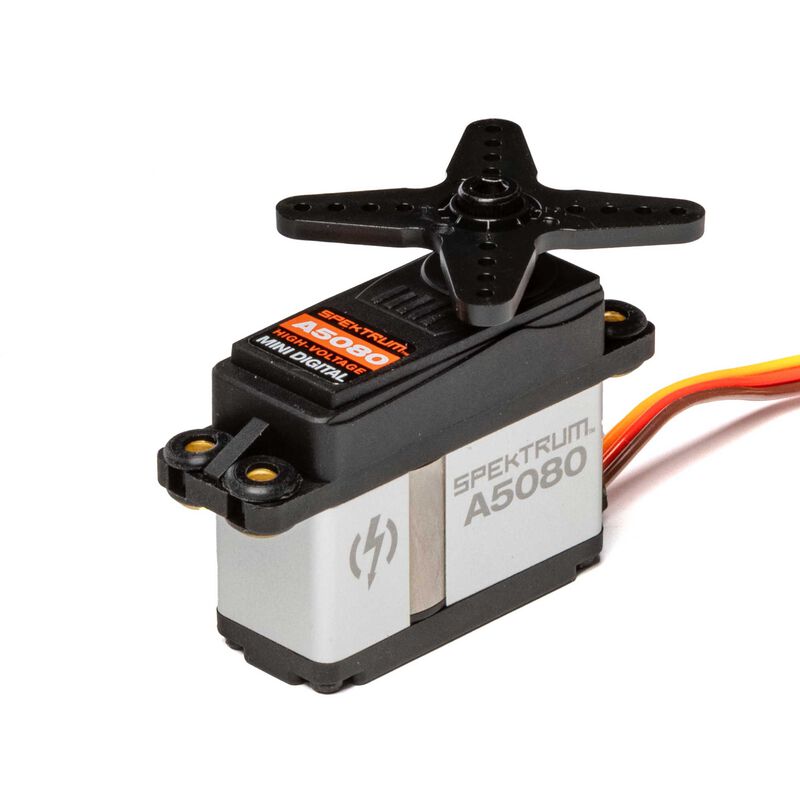

The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.

Features

• High Voltage (HV) capable (4.8 8.4v input range)
• Mini size is perfectly suited for parkflyer and sport size model aircraft
• Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
• Aluminum servo case helps keep operating temperatures low
• Low wear and tightly meshed all metal gear train
• Bearing supported drive train helps maximize smooth operation
• Over Current and Temperature protection
• Operating Frequency: 200hz to 333hz

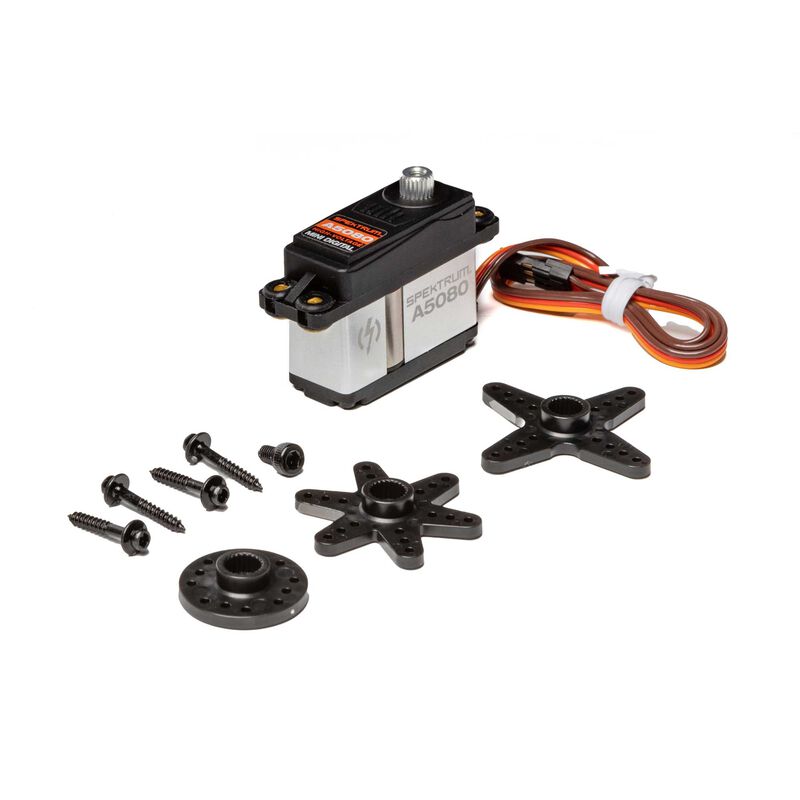

Contents

• (1) A5080 Mini Digital Servo
• (4) Pre-installed Mounting Grommets and Eyelets With Hardware
• (3) Plastic Servo Arms and (1) Screw
