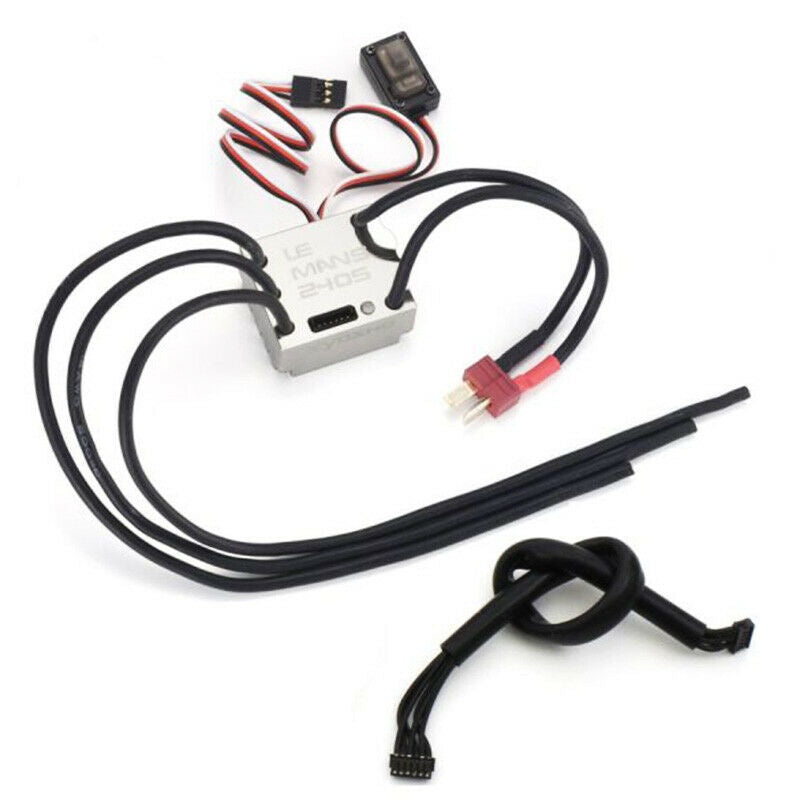

Kyosho 37051B Le Mans 240s ESC 60A

Le Mans 240S ESC is optimized for Le Mans 240S brushless motors. This new design locates all 6 FETs on the base and uses fins shaped into the underside of the aluminum case to dissipate heat and negate the need for a cooling fan. In addition to its excellent heat control and durability, the hard aluminum case is finished with nickel plating and lazer etched with the “LE MANS 240S” and “KYOSHO” logos. With all 14-gauge wires covered in black silicon, the design aligns its superior performance with quality presentation. Using a superplug (Deans) battery connector, the compact design eliminates difficult wiring with the capacitor built into the case. The simple design also allows six setting parameters to be set with only the Set key, without using the program card.

Sensor cable is not included. Please purchase separately.

Standard lengths of the sensor cables are as follows (according to ESC mounting position)

• TF-7/ FAZER/ PLAZMA F1: 100mm

• PLAZMA Lm/ PLAZMA Ra/ Gambado R246: 150mm

• OPTIMA/ TOMAHAWK: 170mm

• SCORPION/ BEETLE: 190mm

Specifications

• Resistance：0.0011Ω

• Amps：60A

• Peak amps：80A

• MAX KV（2S：13.5T 3200KV, （3S）：15.5T 2200KV

• Function：Forward／Brake, Forward／Brake／Reverse

• Input Voltage：7.2V-11.1V 6S NiMH／3S LiPo

• Motor Type：Sensor＆Sensorless 2-pole／4-pole

• BEC：6V／2A

• Dimensions（mm：37.5×30.8×18.7

• Weight（g：About 80
