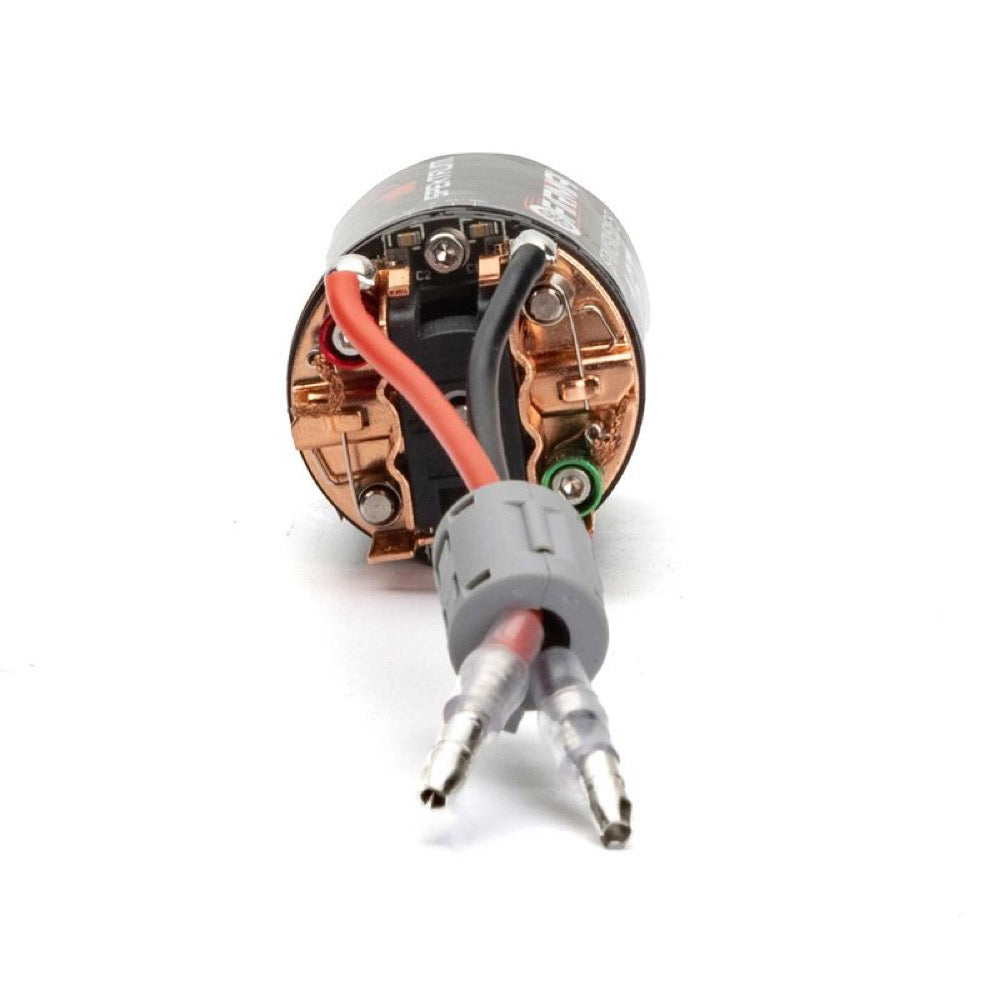

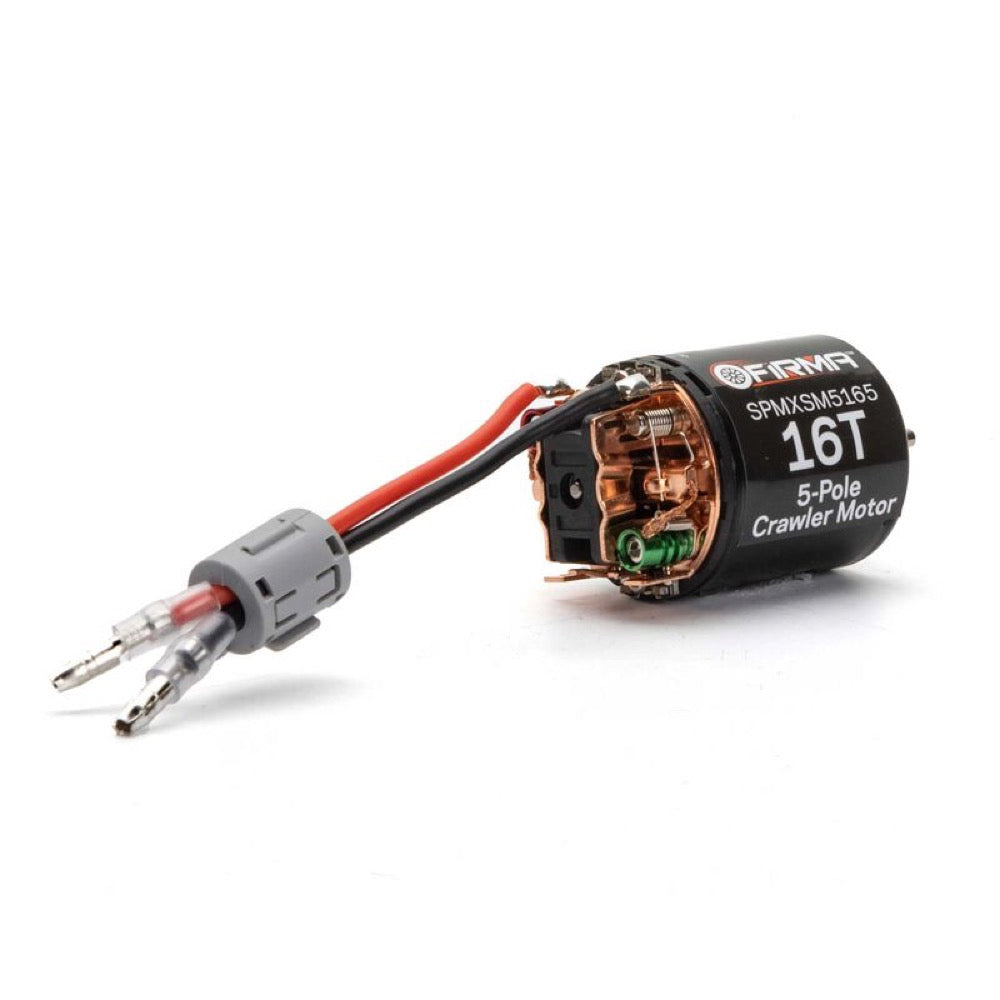

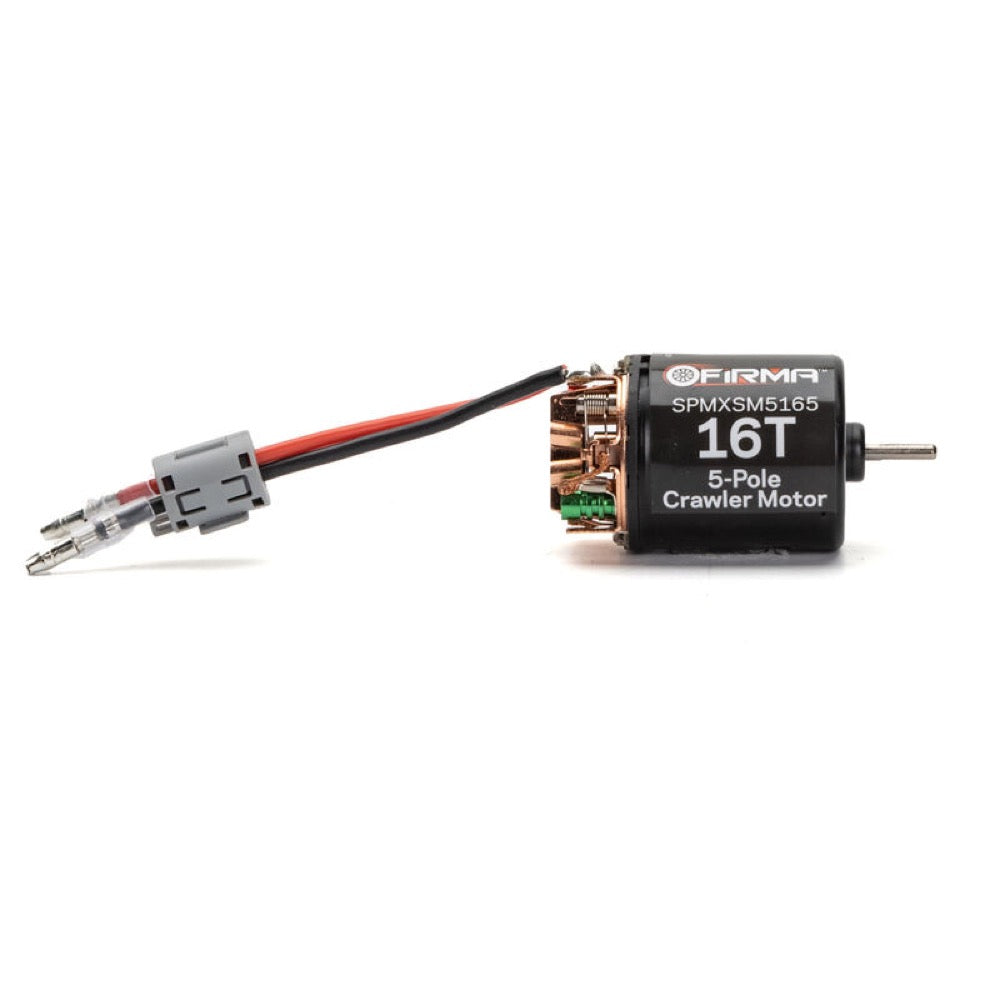

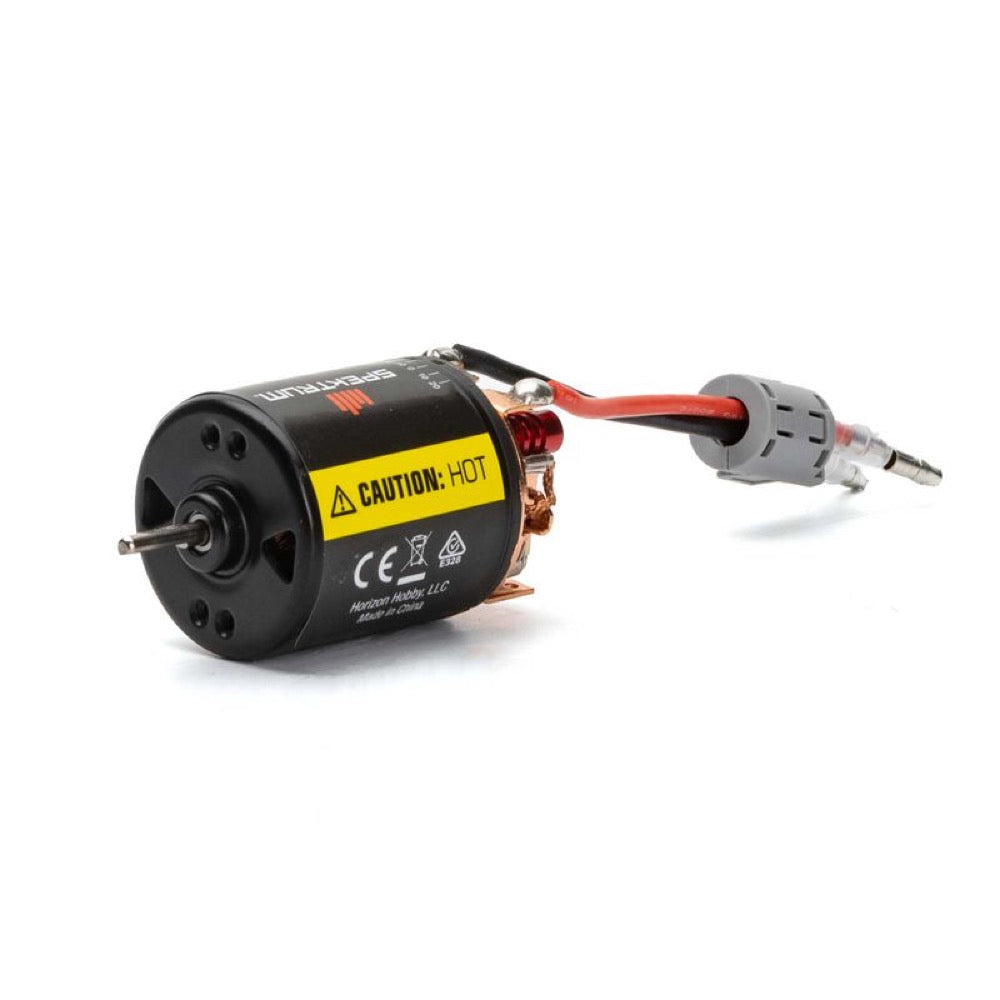

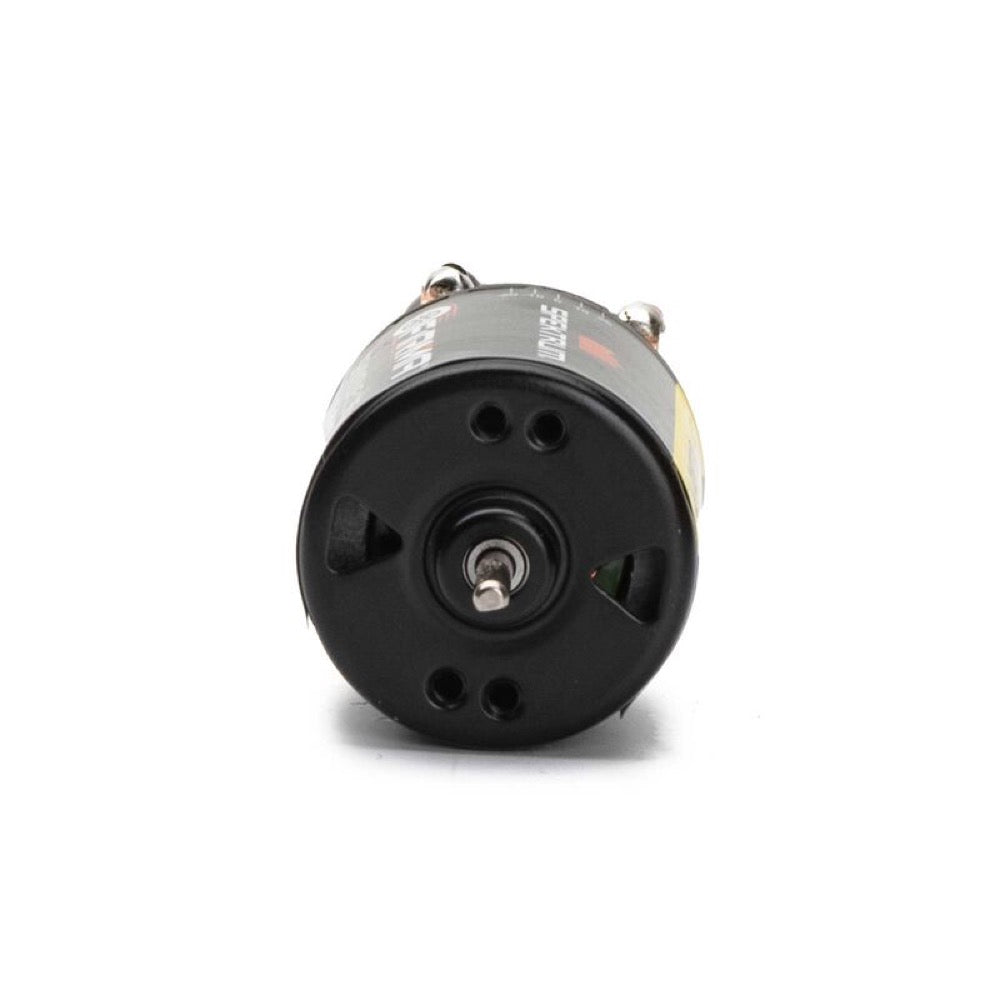

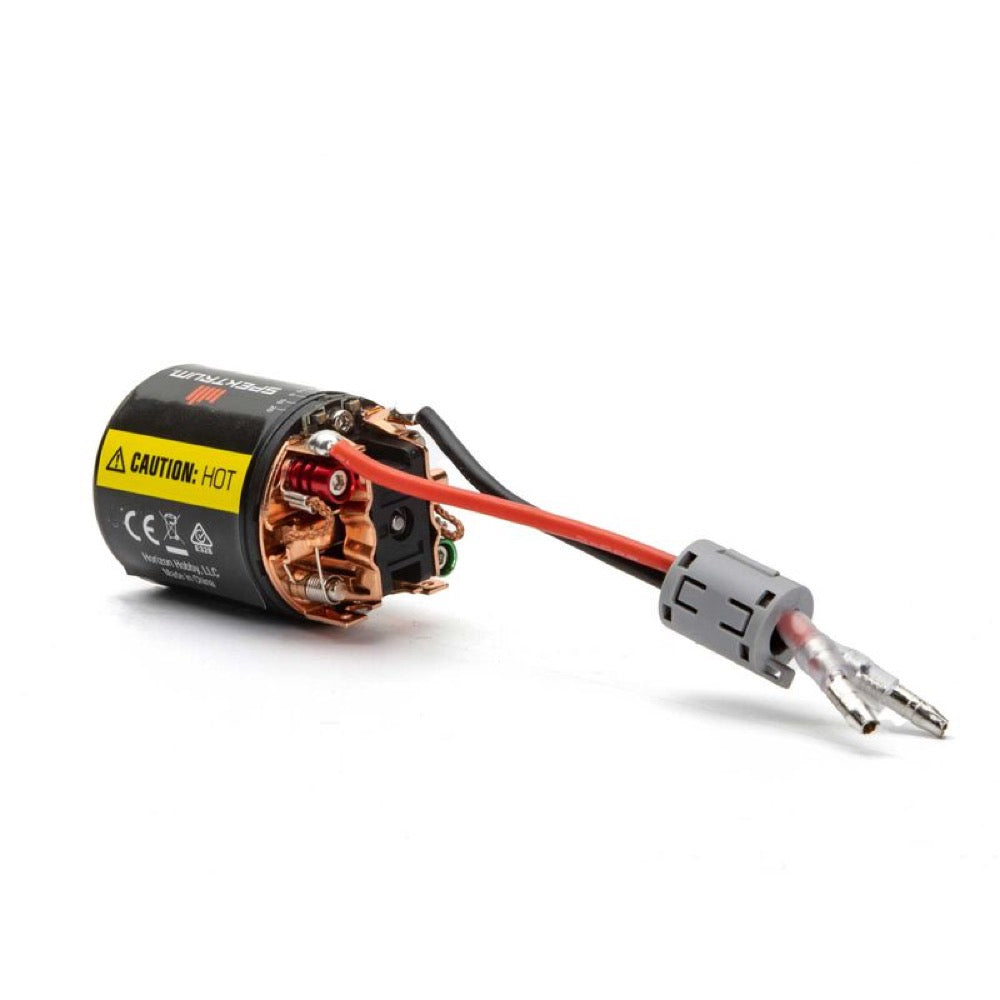

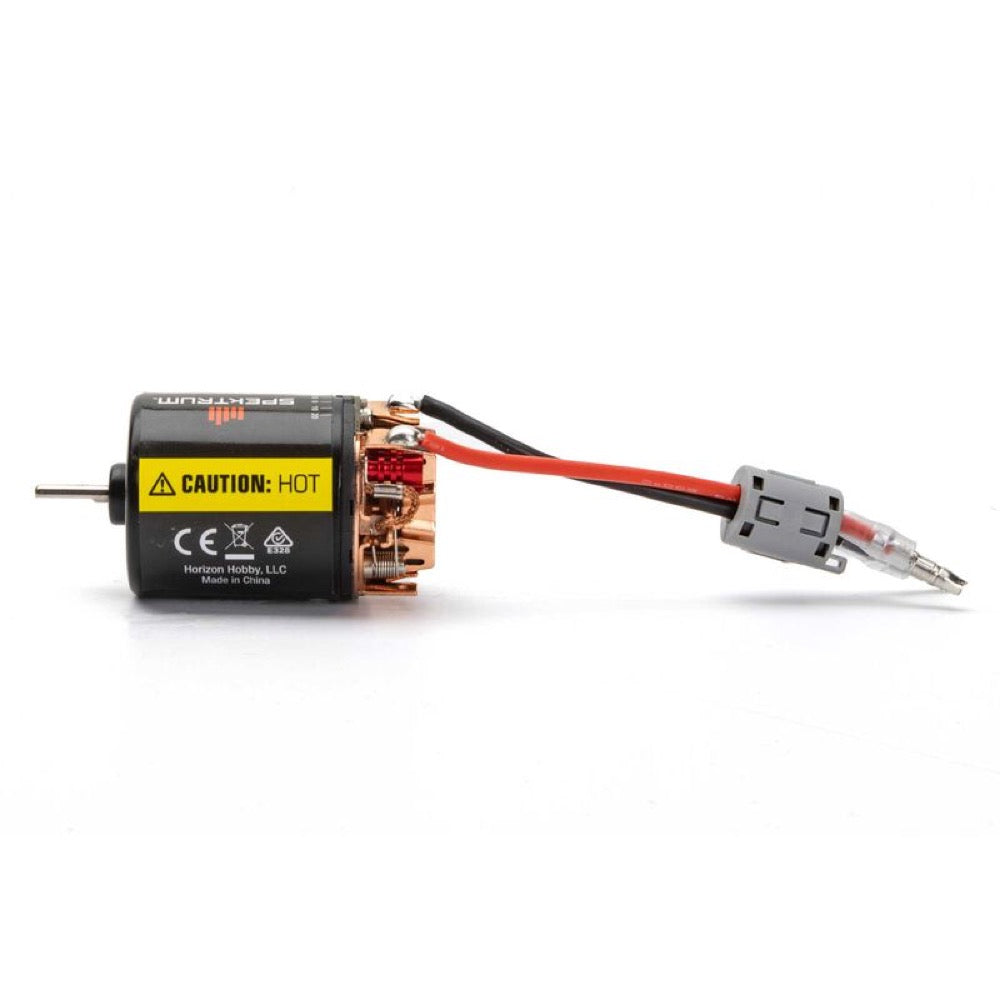

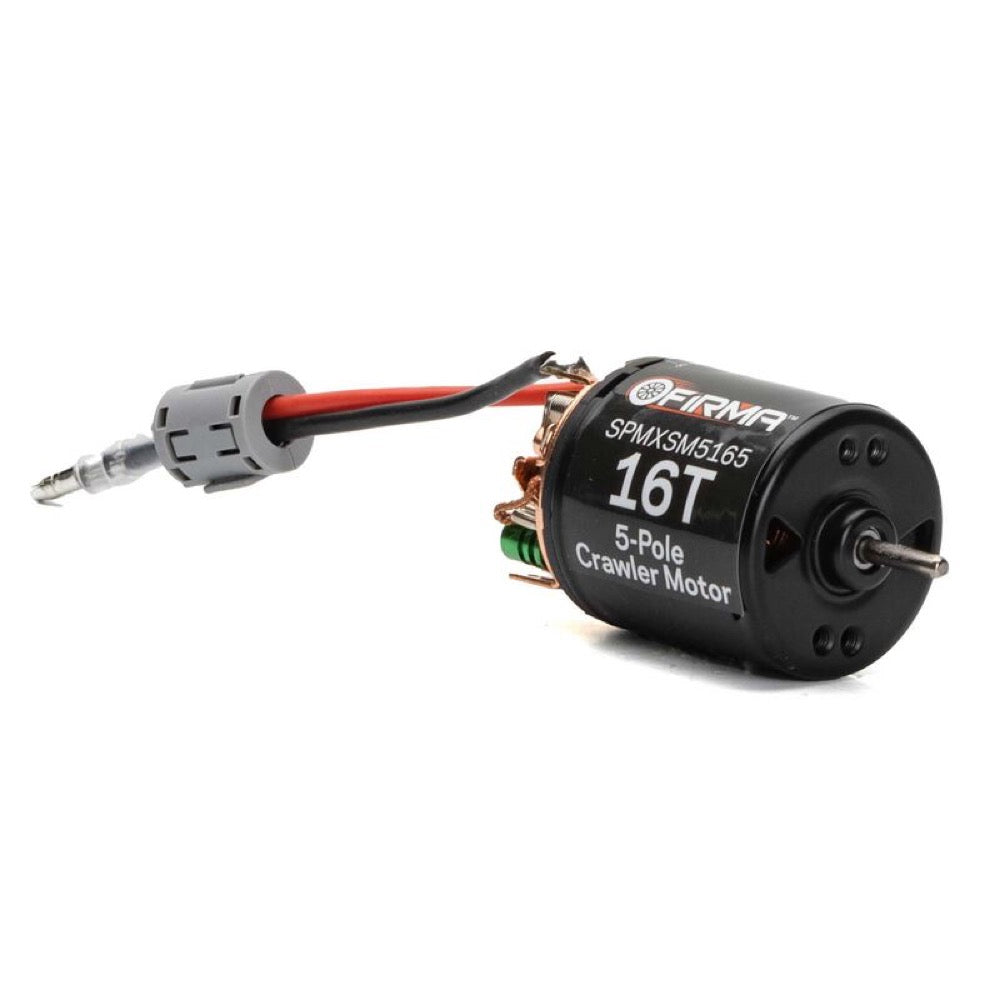

Spektrum SPMXSM5165 Firma 16T Rebuildable 5 Pole Brushed Crawler Motor

The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring fully rebuildable design, impressive low-end torque and control, and excellent efficiency.

Next-level Slow Speed Control

The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring a fully rebuildable design, impressive low-end torque and control, and excellent efficiency.

Features

• Available in 16T and 20T configurations
• 5-pole design provides half the speed of 3-pole design counterparts
• Adjustable timing for clockwise and counterclockwise motor rotation
• 540 can size – perfect upgrade for most 1/10th scale
• Pre-shaped curved face brushes – No break-in period required!
• Wires and 3.5mm bullets installed – No soldering required!
• Dual rubber sealed bearings
• Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings
• 2S LiPo/6Cell NiMH recommended battery

Specification

• Adjustable Timing: Yes
• Application: 1/10 Scaler/Crawler
• Bushing Or Bearing: Bearing
• Connector Type: 3.5mm Bullet
• Forward: Yes
• Motor Size: 540-Size Brushed
• Motor Type: Brushed
• Number of Poles: 5
• Outer Diameter: 1.4" (36 mm)
• Product Application: Crawling, Surface
• Product Length: 2.1" (53 mm)
• Product Weight: 169g (6.0 oz)
• Reverse: Yes
• Shaft Diameter: 0.125" (3 mm)
• Turns: 16T
• Water-Resistant: No

Contents

• (1) Spektrum Firma 5–Pole Rebuildable Brushed 16 Turn Motor
• (1) Product Manual

Requires

• (1) Brushed ESC 40 Amp or Higher
