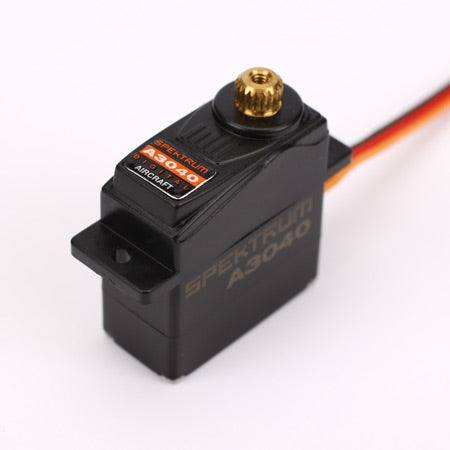

Spektrum SPMSA3040 A3040 Sub-Micro Servo Digital Hi Torque Metal Gear

Overview

This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come. Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.

Product Specifications

Type:Digital

Application:Slow and park flyer aircraft

Torque:23 oz-in (1.7 kg-cm) @ 4.8V / 28 oz-in (2 kg-cm) @ 6V

Speed:.12 sec/60° @ 4.8 / .10 sec/60° @ 6V

Length:.93 in (23.6mm)

Width:.45 in (11.5mm)

Height:1 in (25.5mm)

Weight:.44 oz (12.6 g)

Bushing Or Bearing:Bearing

Bearing:Single

Motor Type:Cored

Connector Type:Z-connector

Gear Type:Metal

Voltage:4.8 or 6.0V
