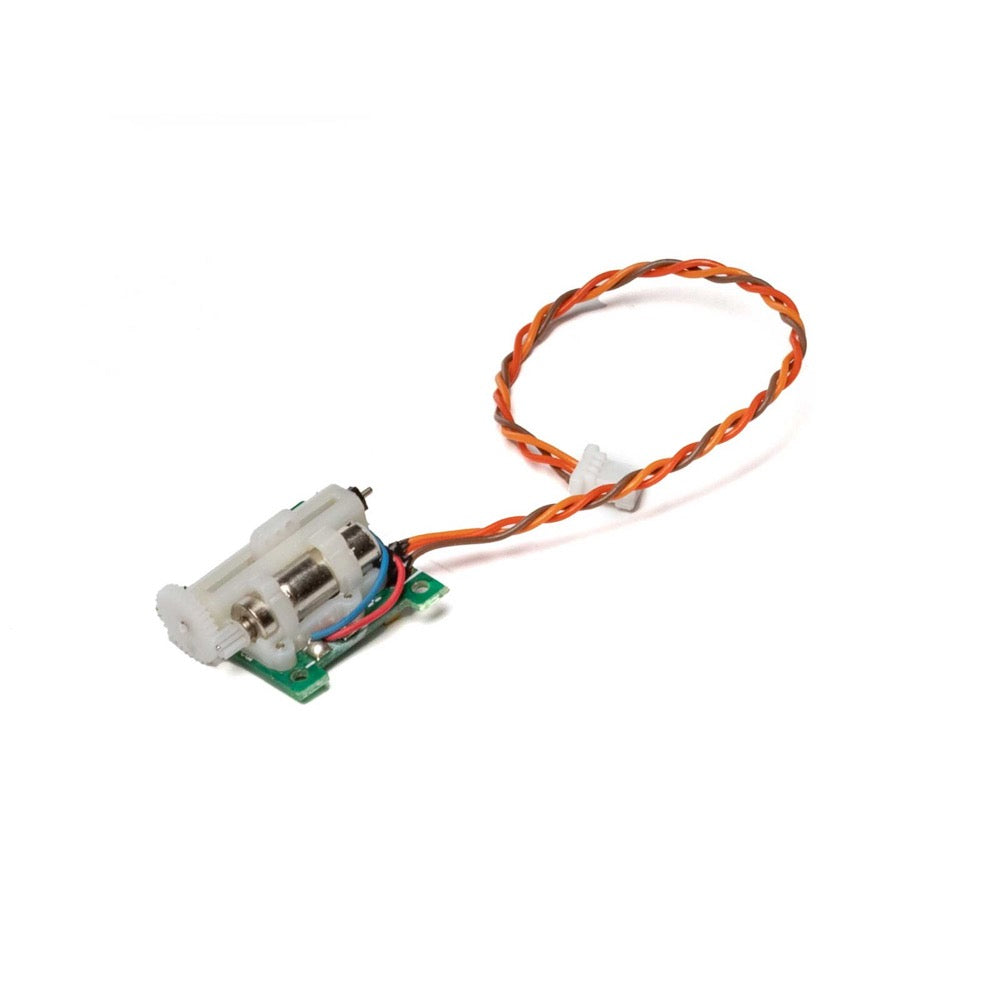

Spektrum SPMSA2005 1.8-Gram Linear Servo

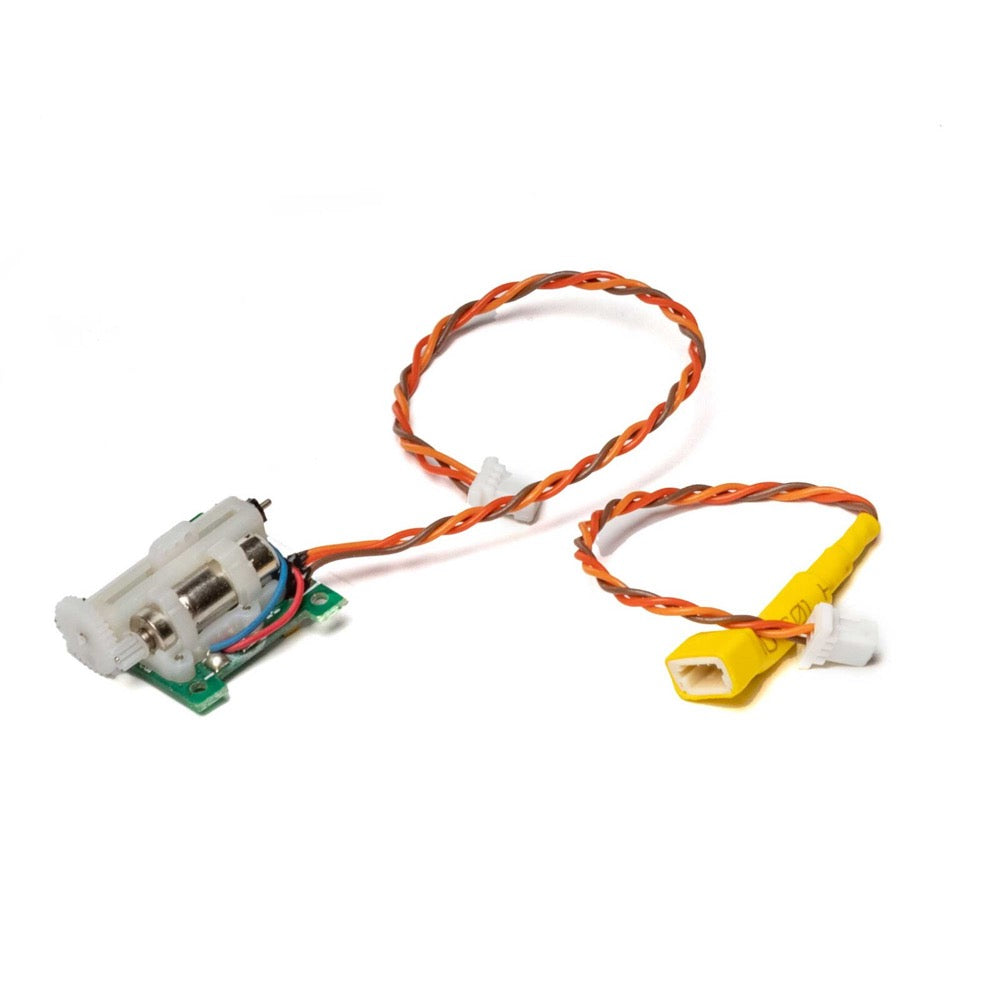

Designed to work in conjunction with Spektrum’s AR6400 & AR6410 series of Ultra-Micro Receiver, this linear servo plugs into an open port to expand the installation options on your Ultra-Micro aircraft. Each servo comes with a linear servo reverser (SPM6825).

Features

• Weighing only 1.8 grams, this servo is incredibly lightweight
• DSM2 technology- can be used with AR6400 and AR6410 series receivers
• Compact footprint makes it extra-versatile in Ultra-Micro applications
• 9.1mm servo throw allows for aerobatic flight performance

Specs

• Application: Air
• Bushing Or Bearing: Bushing
• Connector Type: JST-SHR
• Gear Type: Nylon
• Maximum Servo Speed: 0.14 sec @ 4.2V
• Maximum Servo Torque: 2.8 oz (79.4g) @ 4.2V
• Motor Type: Brushed
• Product Application: Air
• Product Height: 0.33" (8 mm)
• Product Length: 0.6" (15 mm)
• Product Weight: 0.06oz (1.80g)
• Product Width: 0.59" (15 mm)
• Programmable: No
• Servo Operating Voltage: 3.2 - 4.2V
• Servo Size Category: Ultra Micro
• Servo Type: Analog
• Water-Resistant: No
