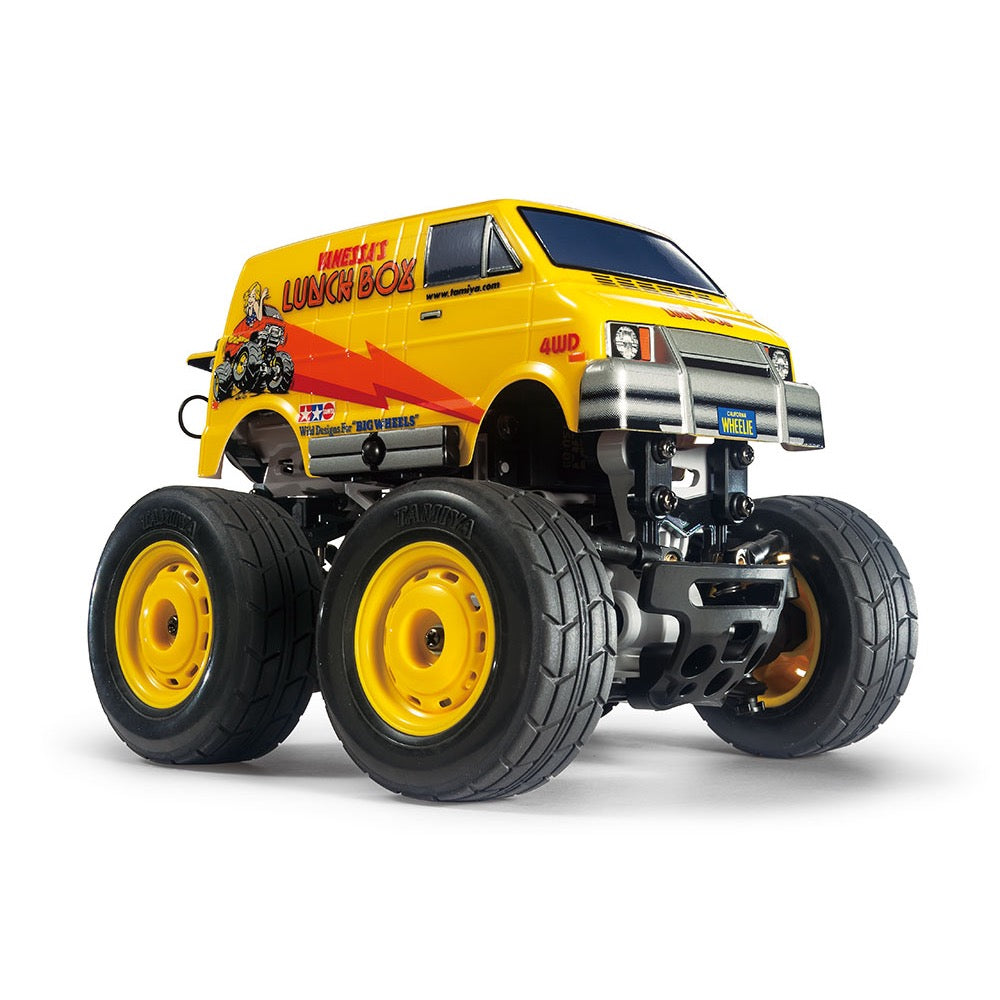

Small yet perfectly formed
The Lunch Box is a famous name in Tamiya R/C and Mini 4WD, delighting many a hobbyist over the years. Now, it is here in brand new mini 1/24 form, as a fascinating R/C model assembly kit! While extremely compact, it is endowed with excellent mechanical design: gear driven 4WD, strut suspension and more! The lightweight polycarbonate body comes pre-painted in yellow, with wheel arches pre-cut and body mount holes already made. Stickers are included to decorate the body.
SW-01: Super-Compact 4WD
190mm long and 150mm wide, the SW-01 is a compact, highly fun 4WD chassis. A Type 370 motor is central in the slim monocoque frame, with gears transmitting its output to the front and rear of the model, where 70mm tires translate it into a powerful drive. The chassis power source is mounted in the top section to allow wild wheelies under acceleration. Strut type 4-wheel independent coil sprung suspension utilizes single piece upper arms to link left and right wheel steering motion, helping suppress roll during turns, and together with front and rear differentials realize a tight turning circle.
This is a compact, maneuverable, and above all super-fun addition to the world of Tamiya wheelie models! It's a familiar face, too, as the legendary Tamiya Lunch Box has been shrunk down to 1/24 scale.
The classic shrunken Lunch Box body sits on top of the 4WD SW-01 chassis. It is capable of 4-wheel steering using separately sold Upper Arm Connectors that not only allows you to steer with all four wheels on the ground, but it also allows the vehicle to steer while doing wheelies!
SWD-01 chassis key Features
- The steering uses 1-piece upper arms for a tight turning circle and the body leans to help suppress tumbles. It can be converted into a 4-wheel steering setup with separately sold Item 54898 SW-01 Upper Arm Connectors.
- The body is attached to the body mounts using magnets for quick attachment.
- The Type 370 motor is located right in the center of the SW-01 chassis, in a gear-driven 4WD setup with a gear ratio of 21.875:1.
- 1/24 scale R/C model assembly kit. Length: 190mm, width: 146mm, height: 140mm.
- The famous Lunch Box body is molded in lightweight and durable polycarbonate and is pre-painted.
- The body leans in the direction in which the model steers, achieving remarkably tight turning circles.
- Responsive 4WD.
- Strut style suspension.
- Can be used with standard size servos and R/C equipment despite its compact nature.
- Big, tread patterned tires give superb traction and add to the overall cartoonish look of the Lunchbox Mini.
- Dish type wheels.
- Compatible with Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) as a power source.
- Aftermarket battery note: Battery pack size must be under 66x36x15mm in size.
- 370-type size motor included.
Requires
- 2-Channel Radio, standard size servo, 7.2-7.4volt battery pack & compatible charger.
- Compatible with: item 51610 RC T301 Battery Case for use with 4 AA batteries if desired.
