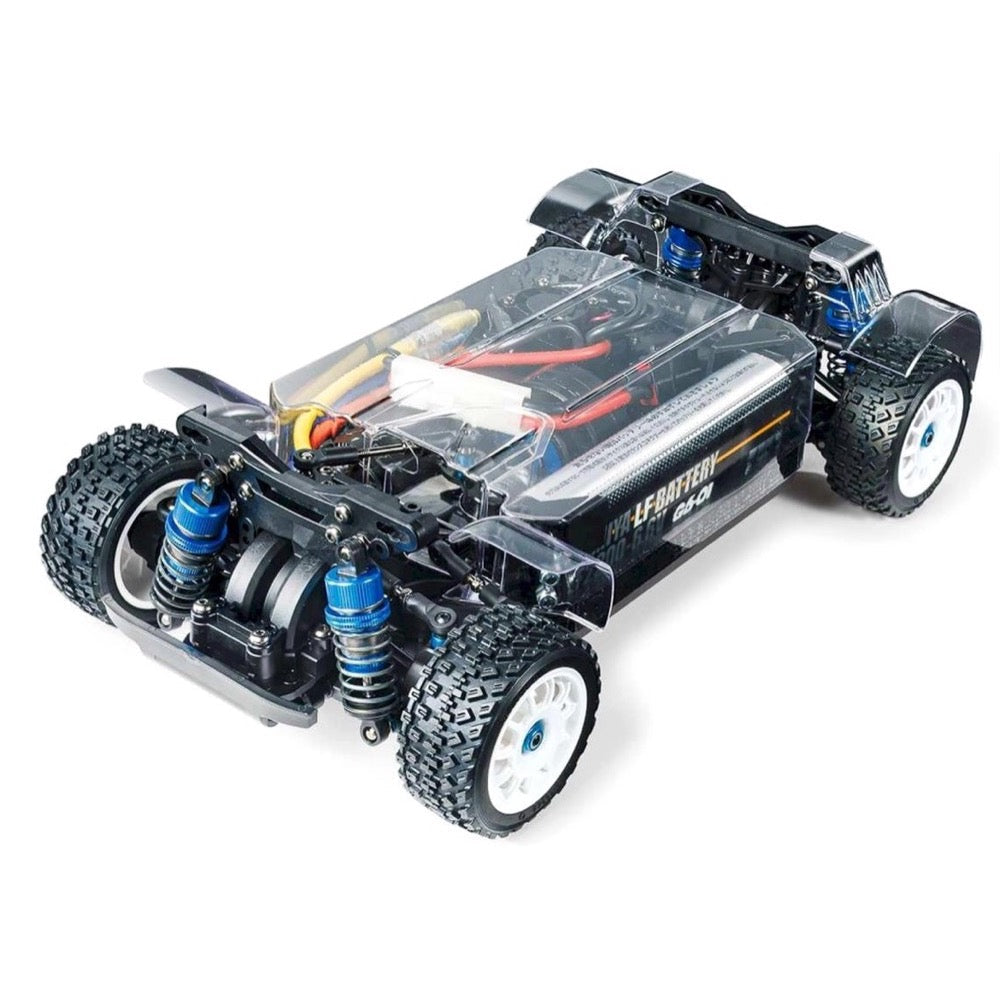

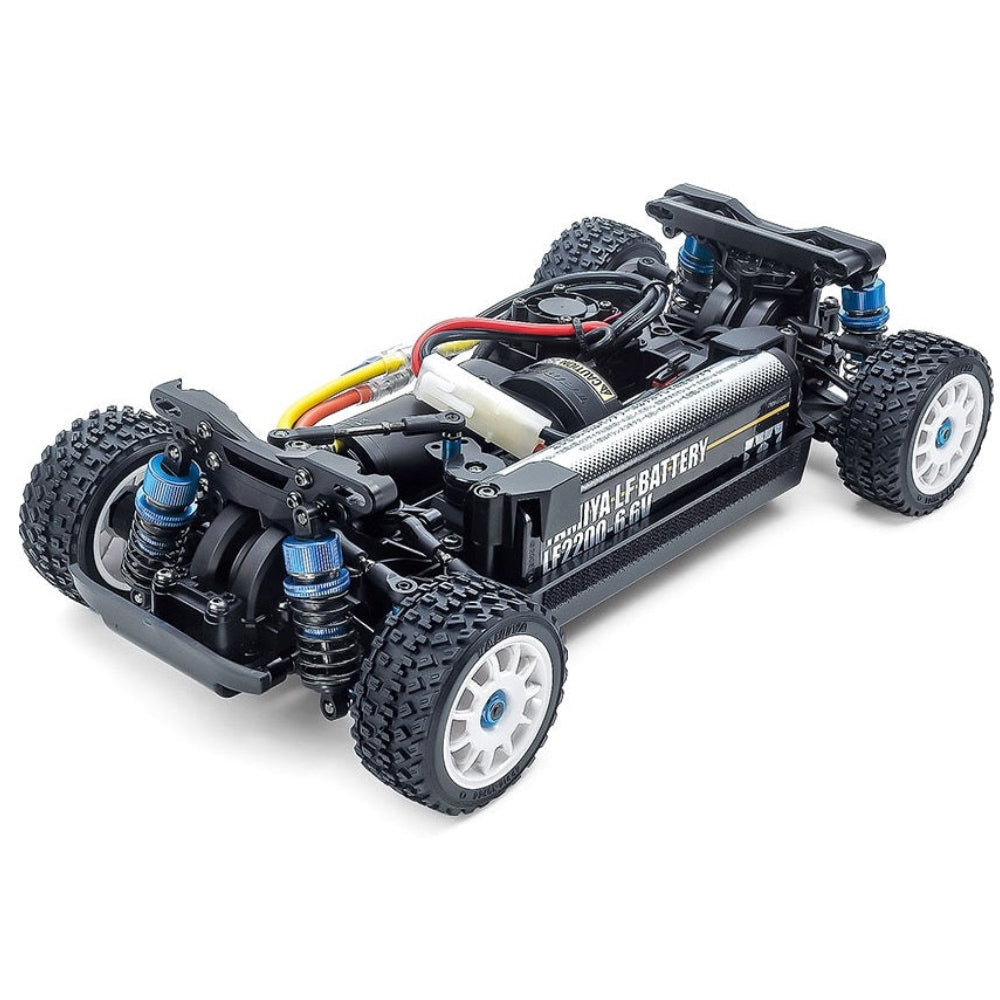

Tamiya 1/10 XM-01 Pro Chassis Rally RC Kit 58738

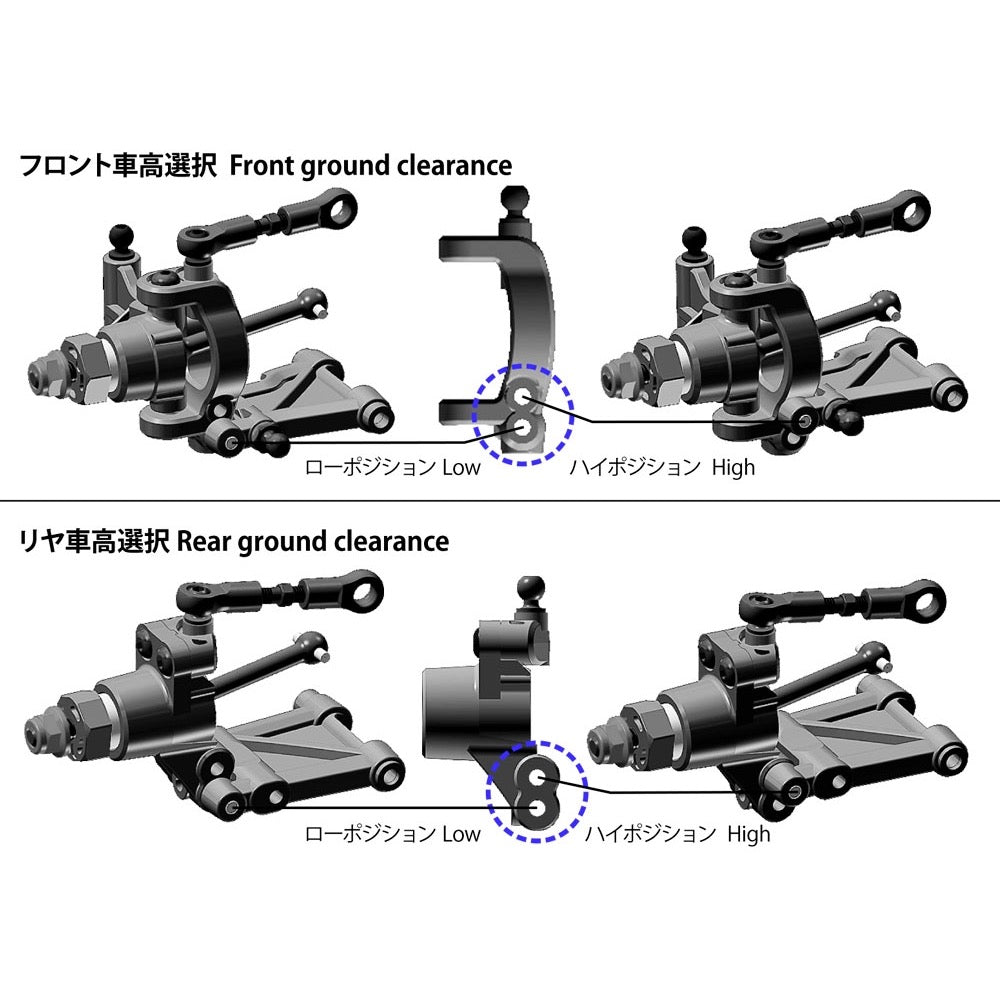

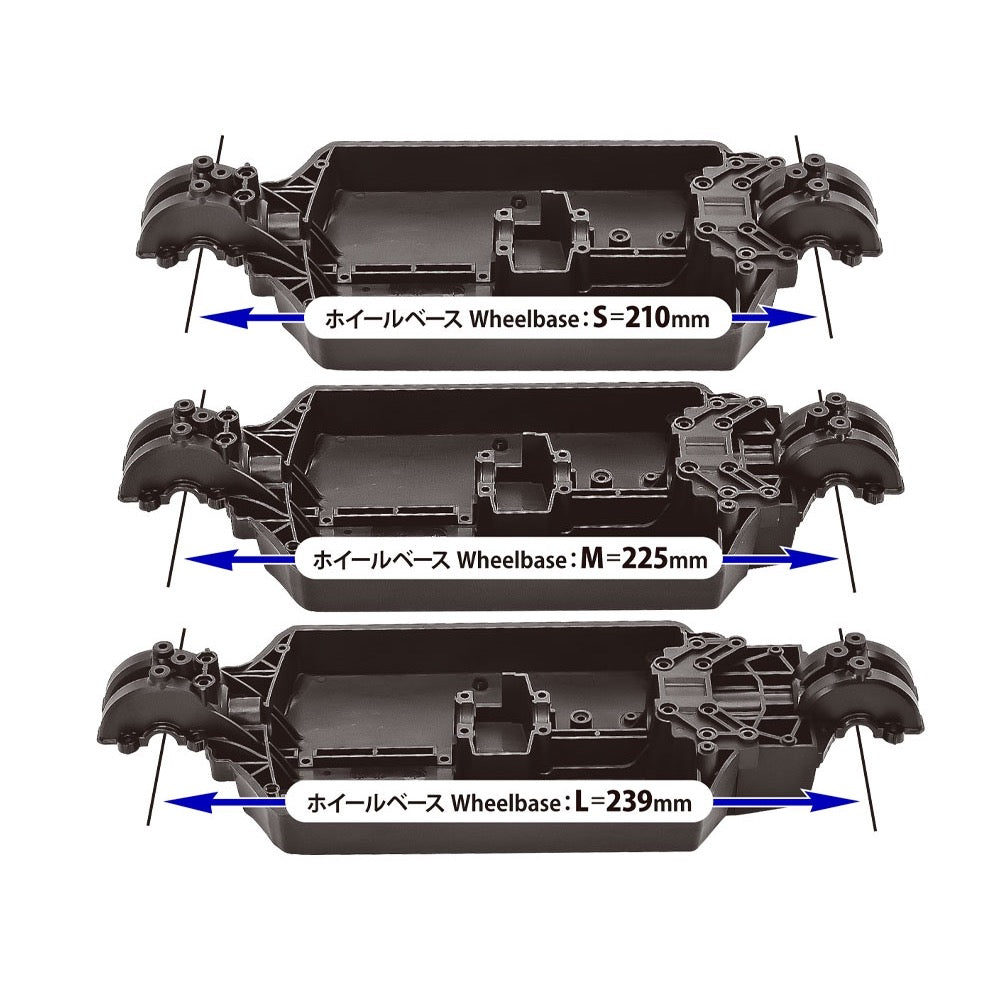

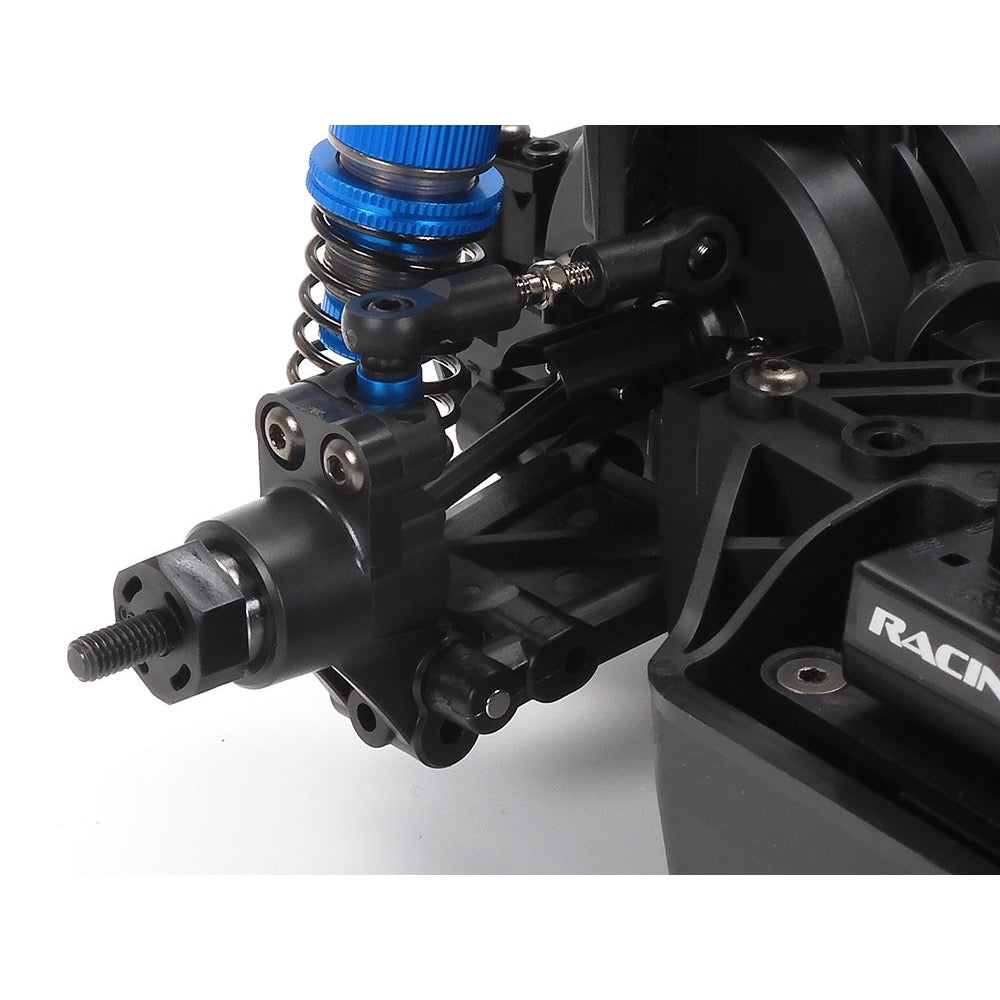

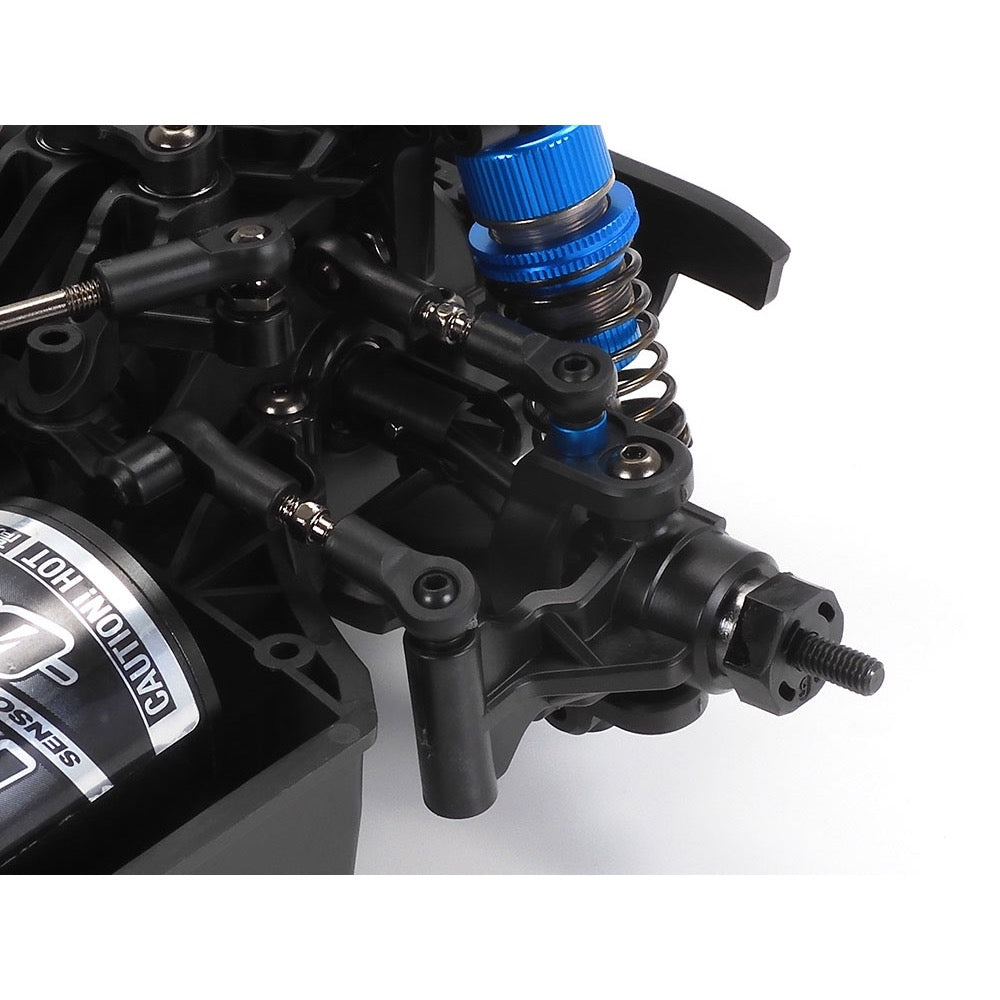

This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.

Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings!

This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!

Features

• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.

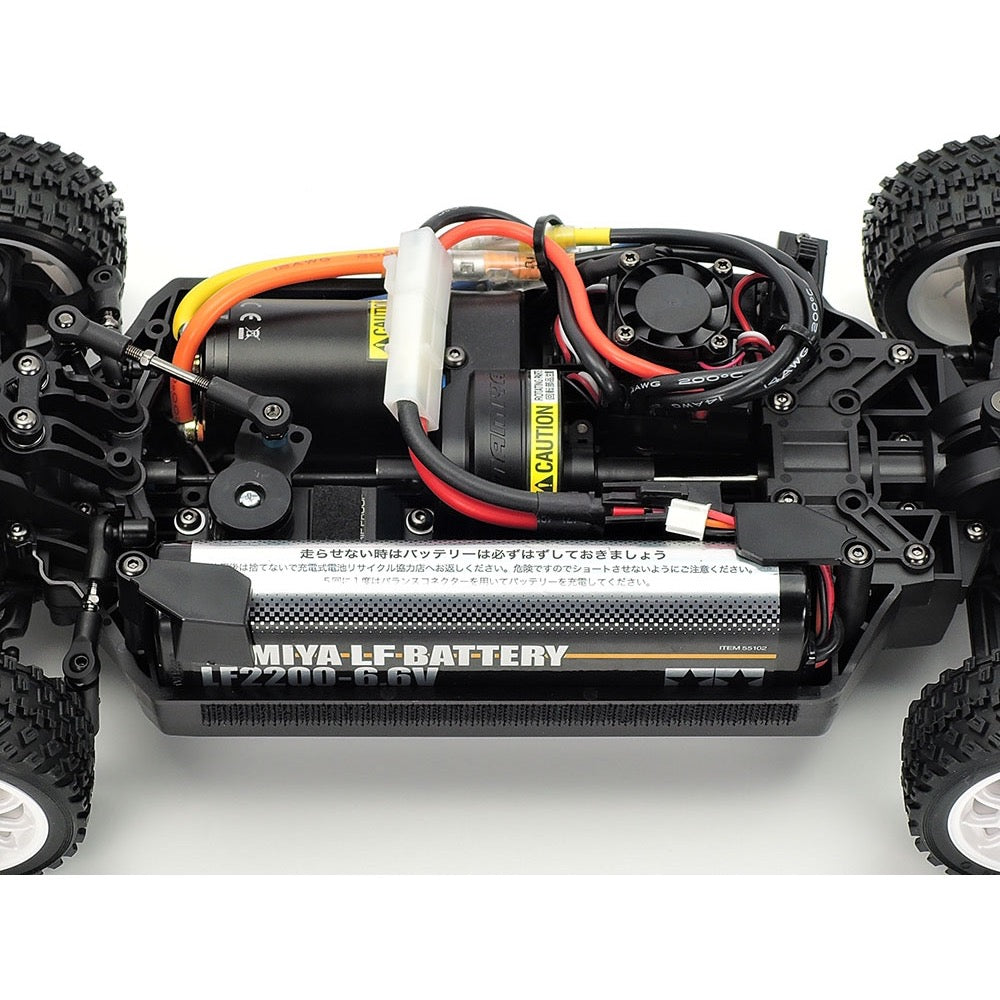

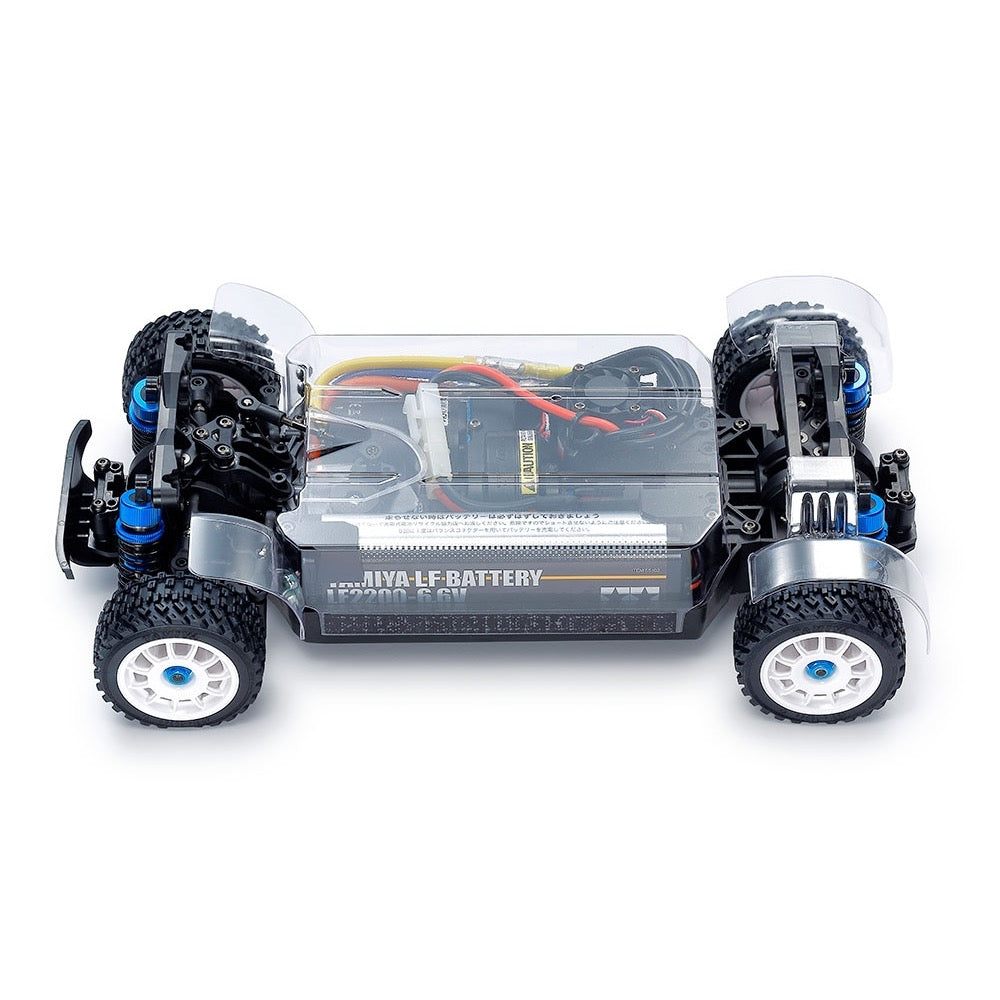

• Features a longitudinal upright battery pack position in the center-left for optimum balance.
• Front bumper with skid angle contributes to reduced surface contact.
• Aluminum dampers included.

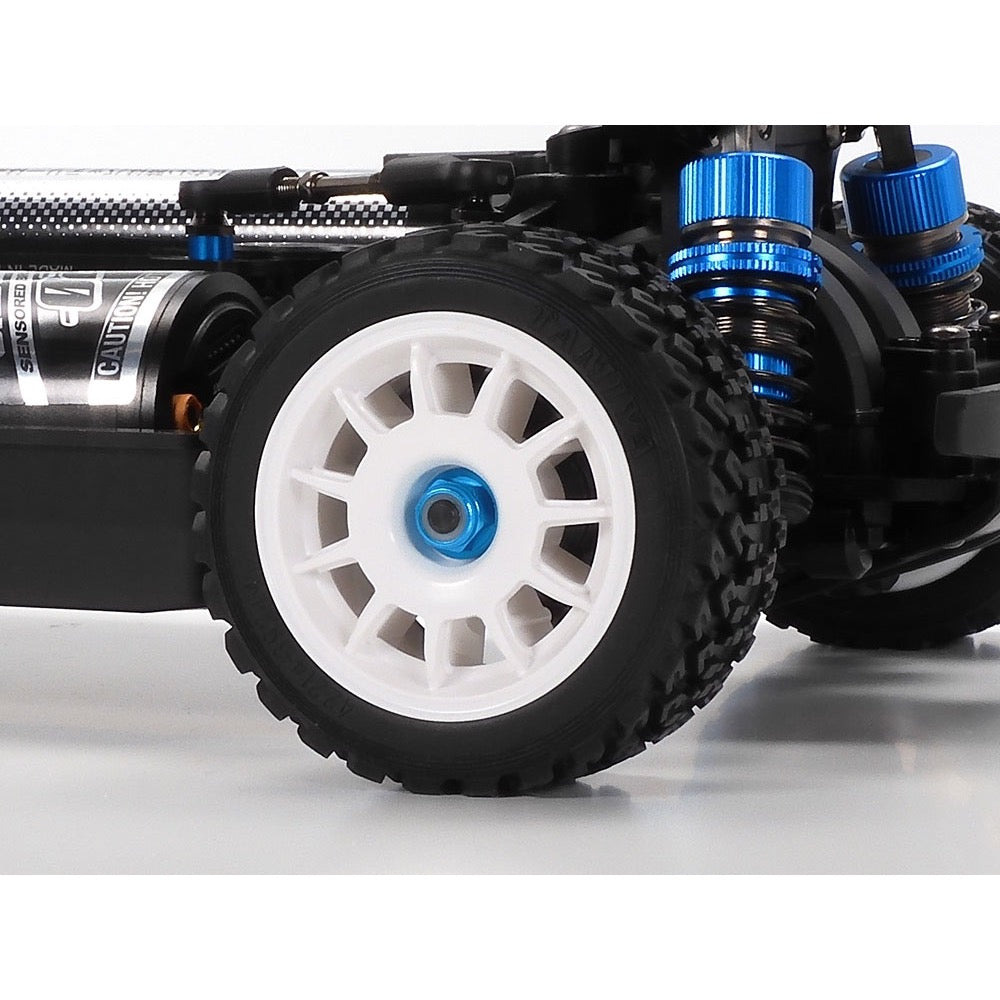

• M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
• Front and rear universal drive shafts included for optimum drive efficiency.
• Compatible with center diff setup and separately sold slipper clutch.
• Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
• Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)
• Required to complete: 2-channel radio, low-profile servo, ESC, 540 size motor, M-chassis size body, 7.2-7.4volt battery with compatible charger.

Featured Components

Drivetrain

• Front & rear oil-filled gear differentials (two 39T and one 40T included)
• Front & rear universal drive shafts
• Full ball bearings

Suspension

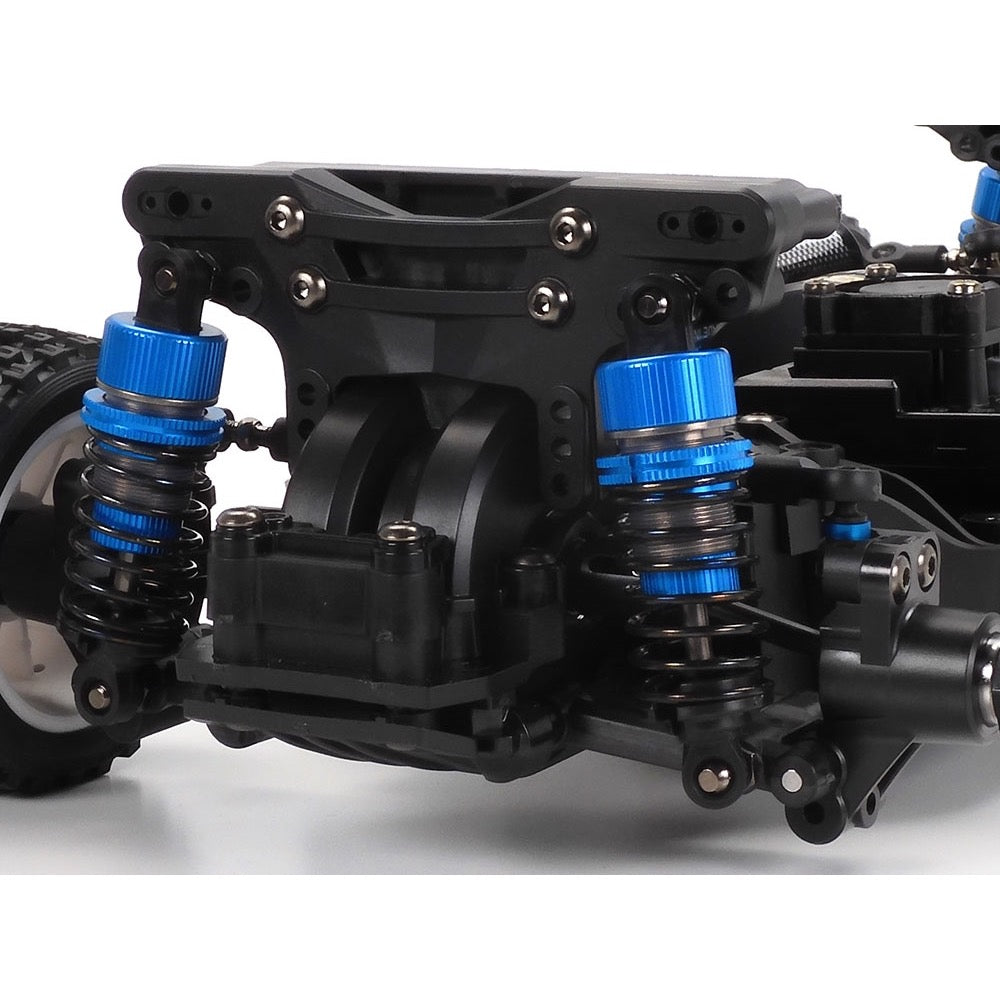

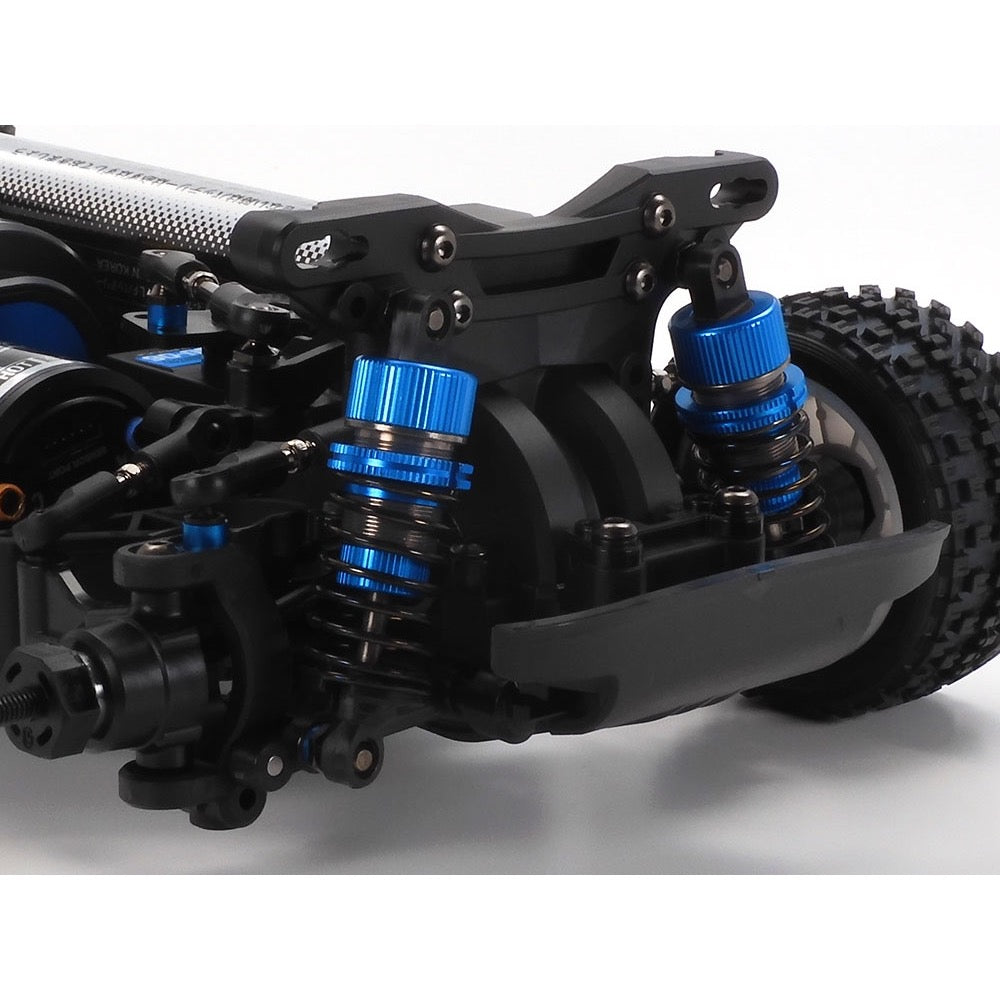

• Aluminum oil dampers (blue caps)
• 5-degree caster suspension mounts
• Turnbuckle upper arms

Chassis

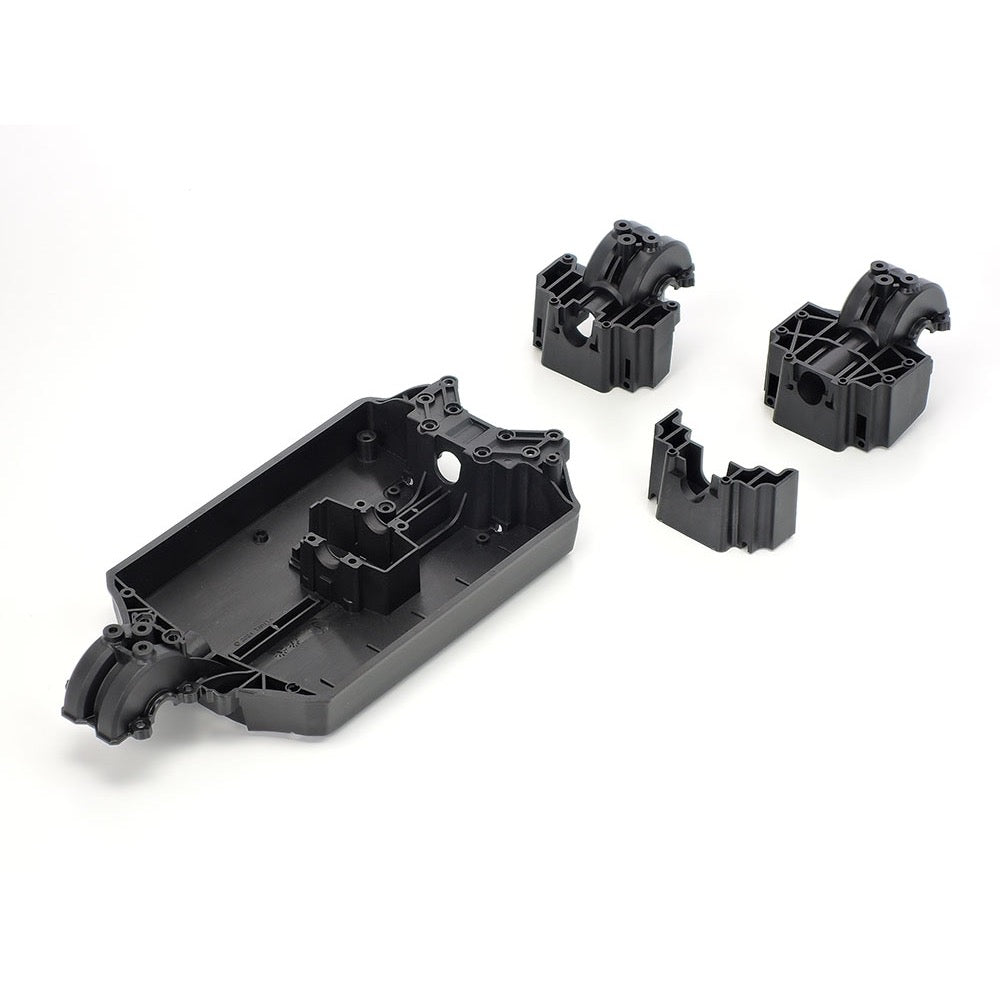

• Polycarbonate chassis cover
• Front bumper with skid angle

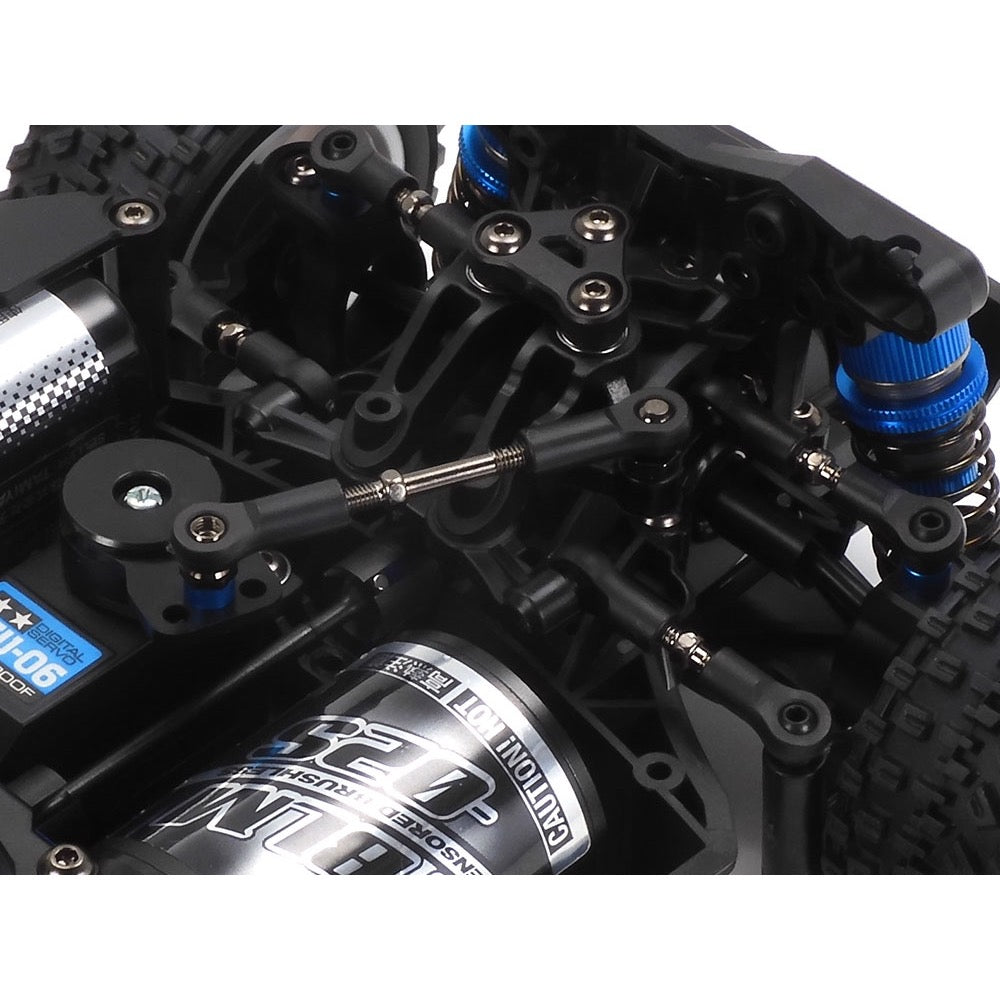

• Hi-torque servo saver

Requires

• Body
• Type 540 motor
• 2-channel R/C system
• Battery pack & charger
