The MF-01X is a compact chassis set to revolutionize the M-Chassis genre, and the all-important first model on this platform recreates the legendary Japanese off-roader, the Suzuki Jimny. The Jimny, of course, has been on sale as one variant or another since 1970, gaining numerous fans thanks to its versatility and toughness. The JB23 depicted by this model is one of the 3rd generation Jimnys introduced in 1998 which had a modernized, rounded body design. It featured a feisty little fuel injected, turbocharged 658cc engine and was a popular car in the domestic Japanese market.
The Compact 4WD Model Ready to Steal Your Heart

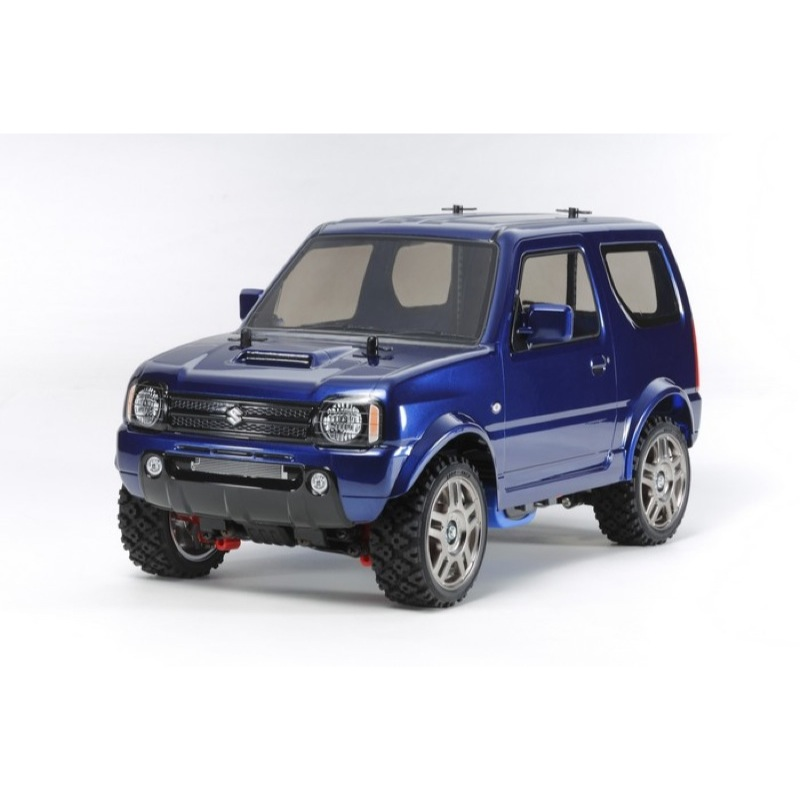

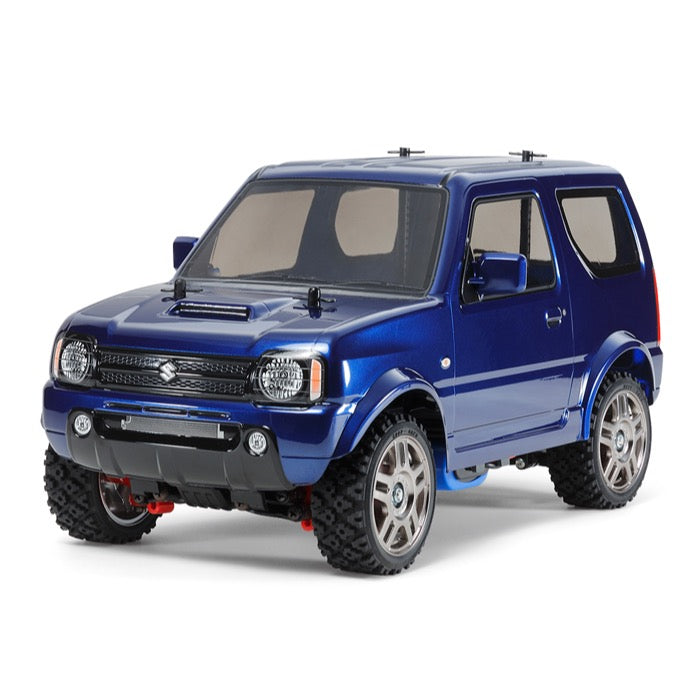

The JB23 is a variant of the Suzuki Jimny, long-selling 4WD model in the Japanese 'kei' class of small cars. Released to coincide with new 'kei' regulations effective October 1998, it inherited the Jimny's trademark tough ladder frame and rigid suspension setup, combining it with a new rounded body. This model accurately captures the JB23 form with a durable polycarbonate body plus separate parts to recreate side mirrors, and stickers depicting front grille and lights.
MF-01X - Compact 4WD At Home on a Range of Surfaces

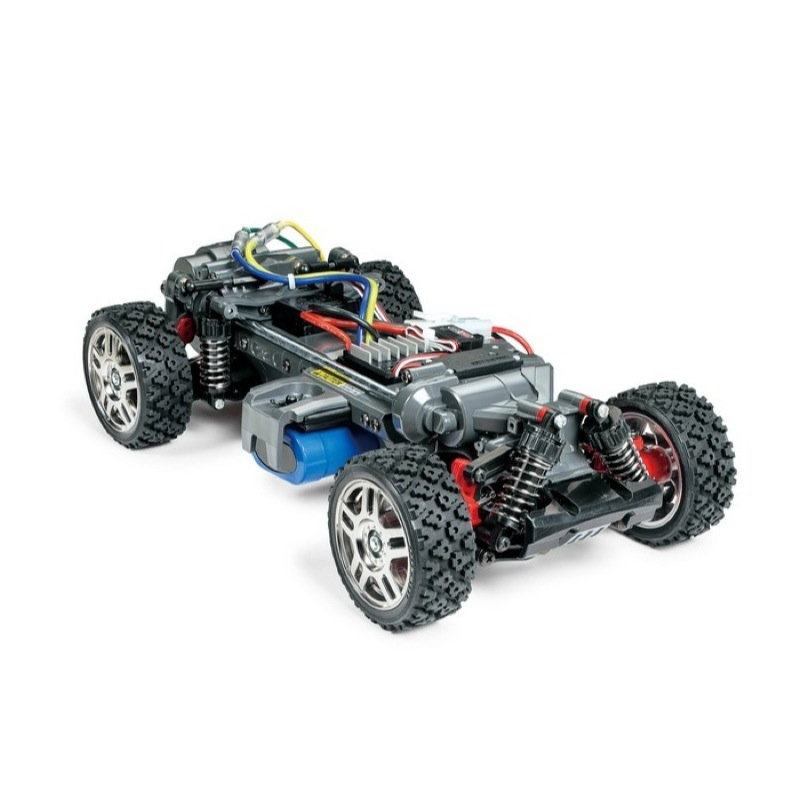

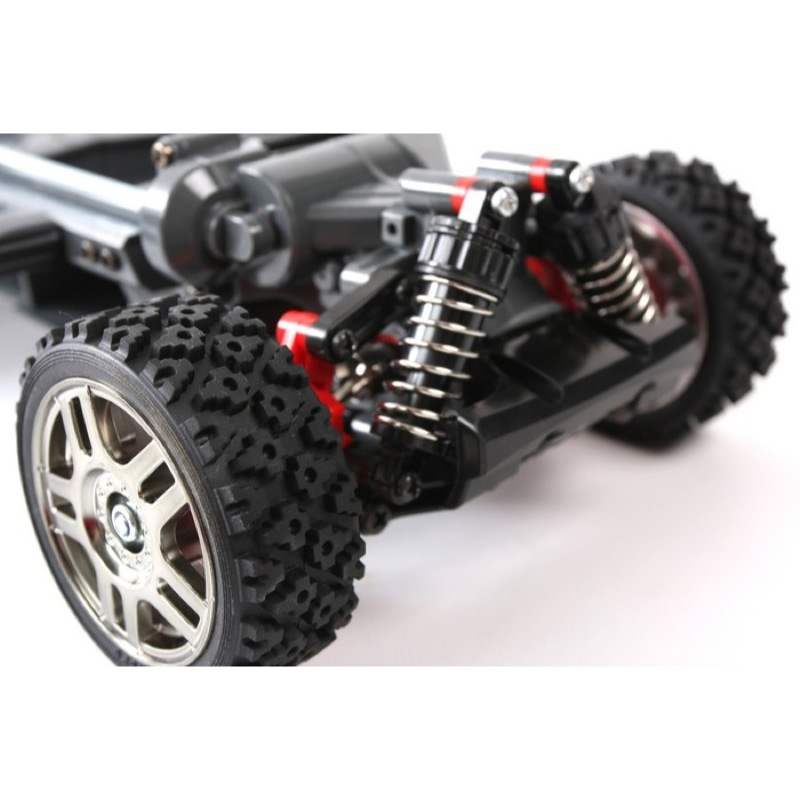

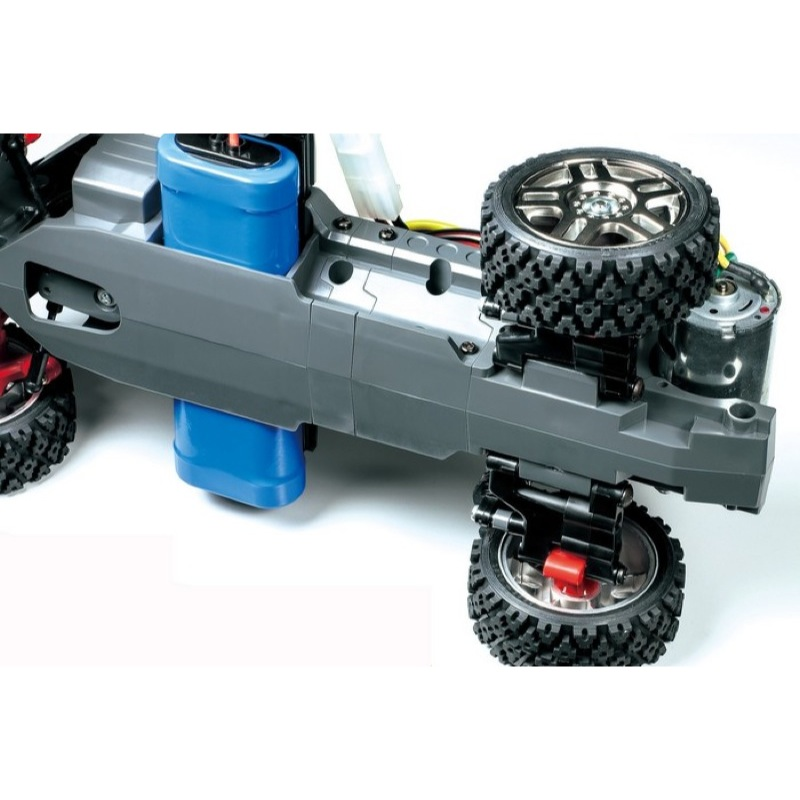

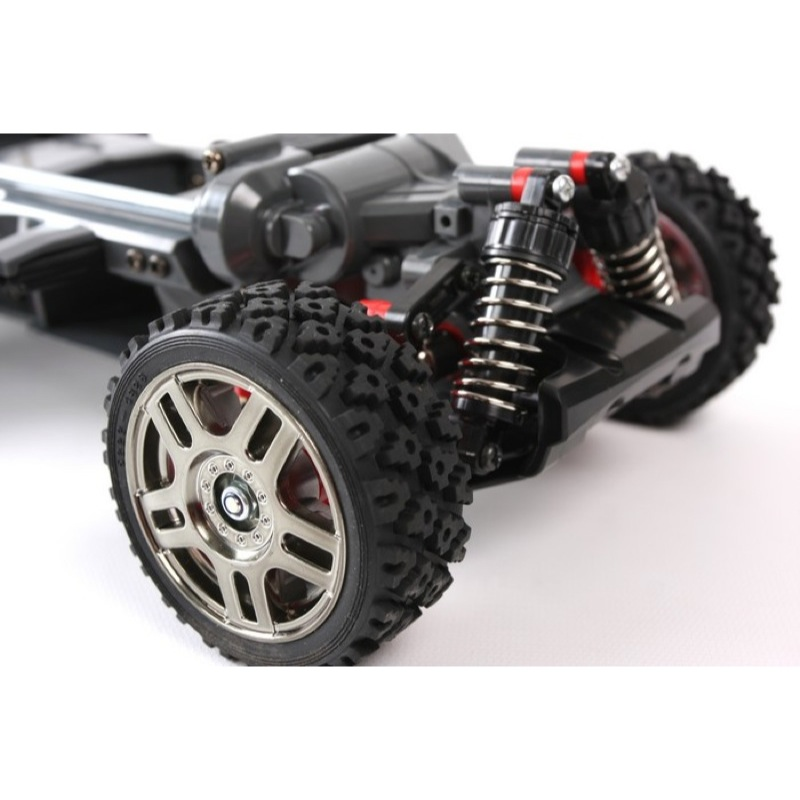

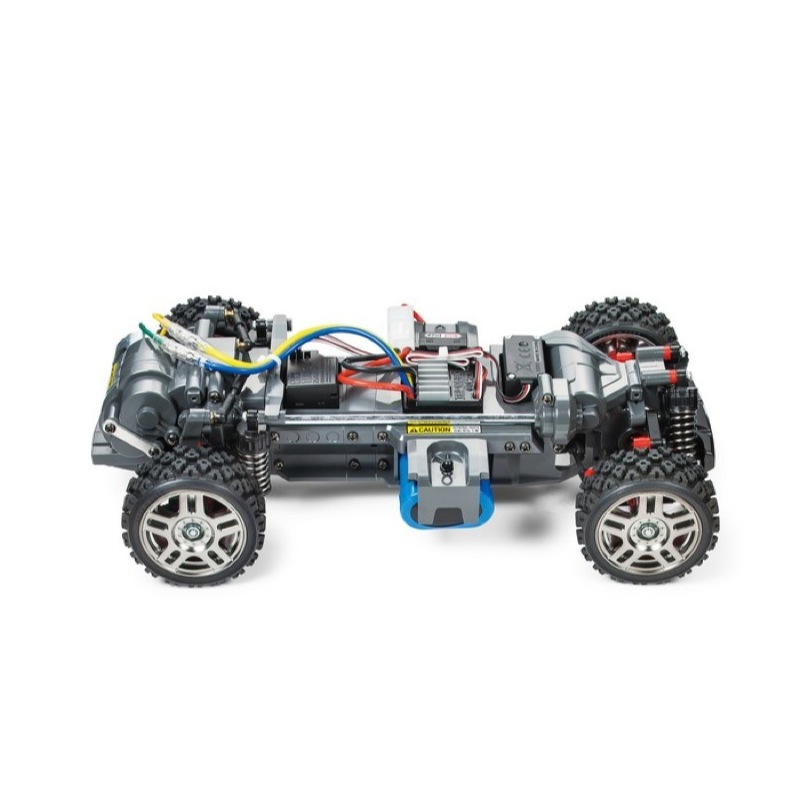

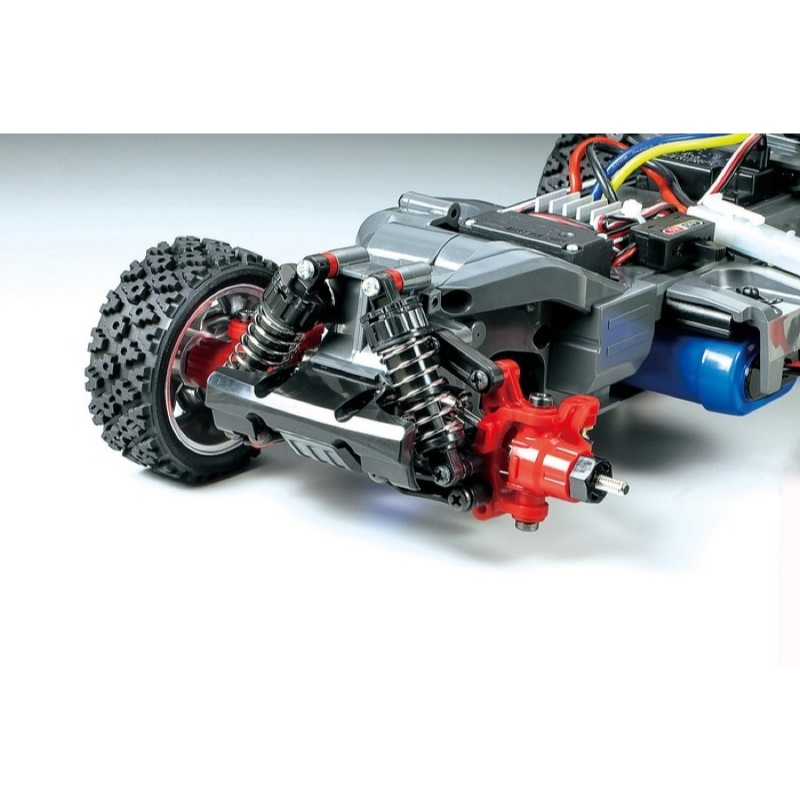

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.
Features

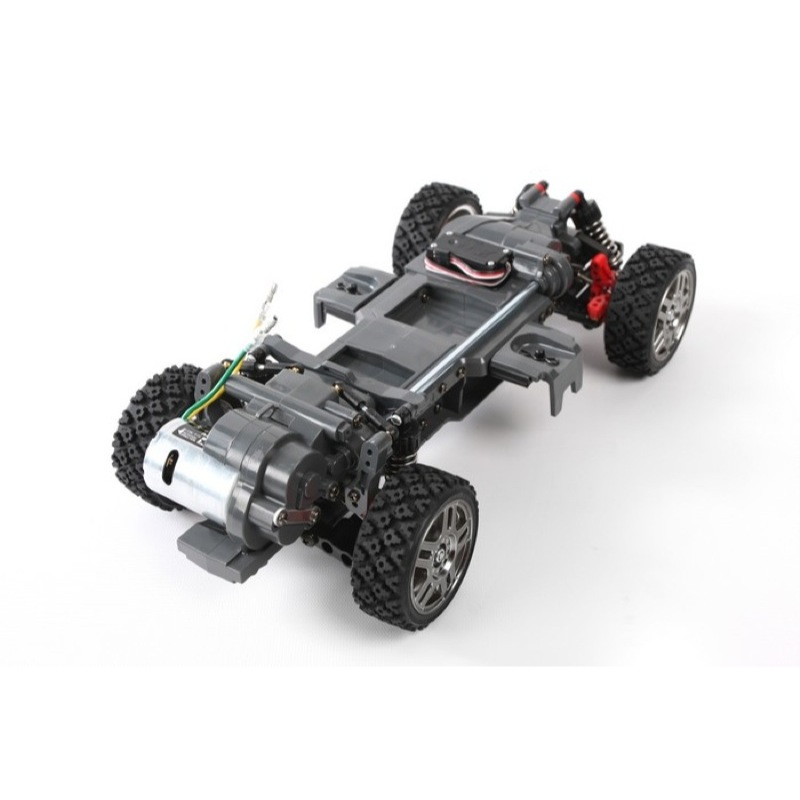

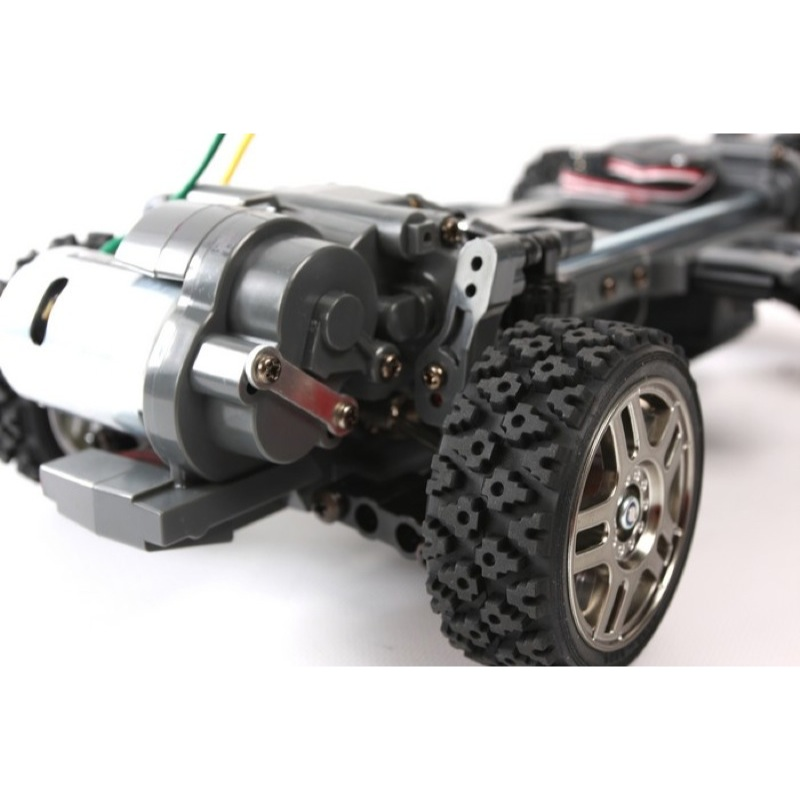

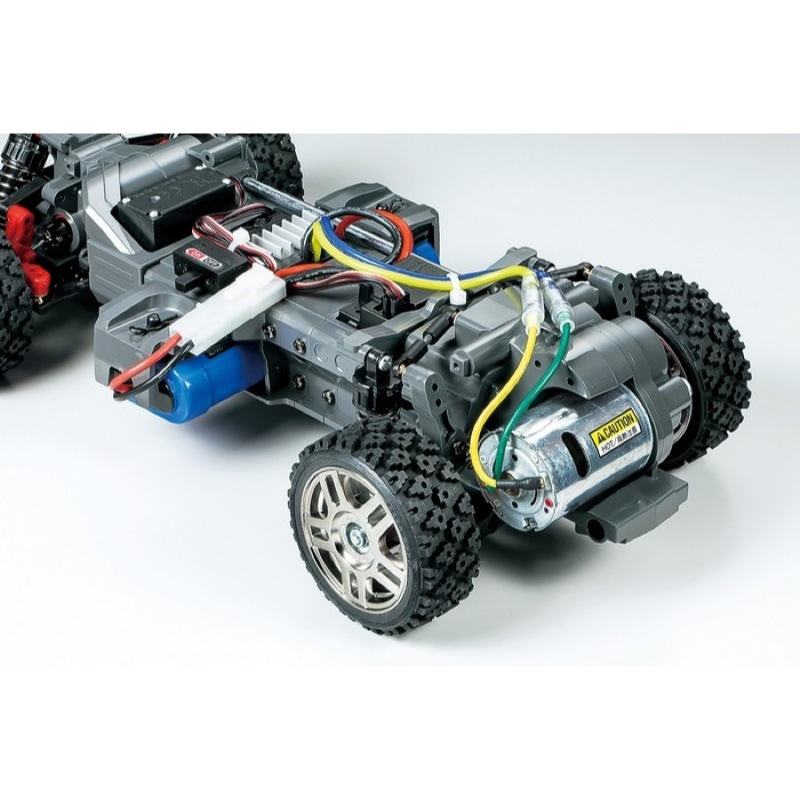

- Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.

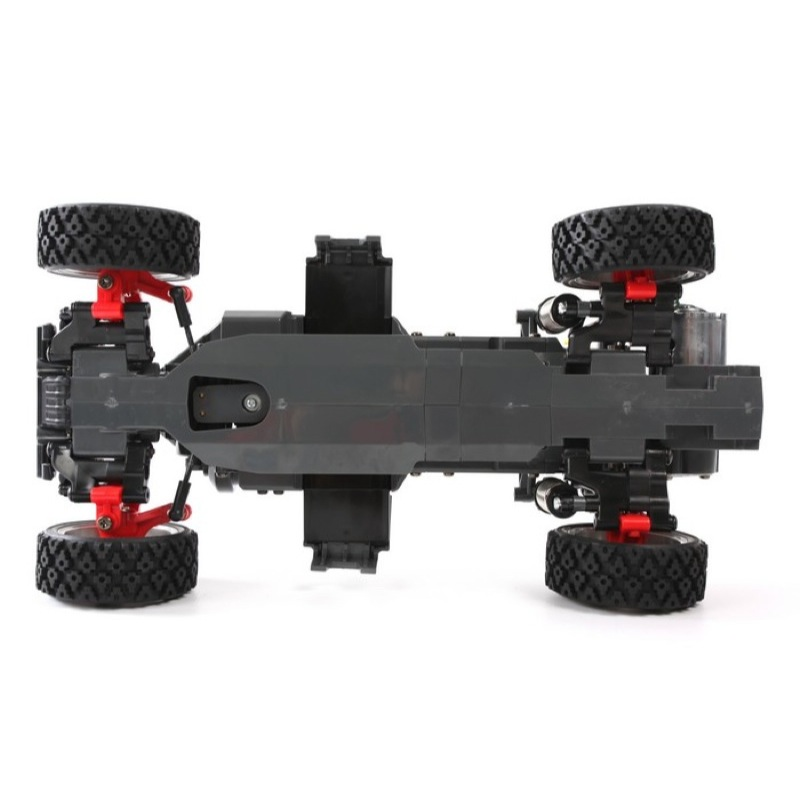

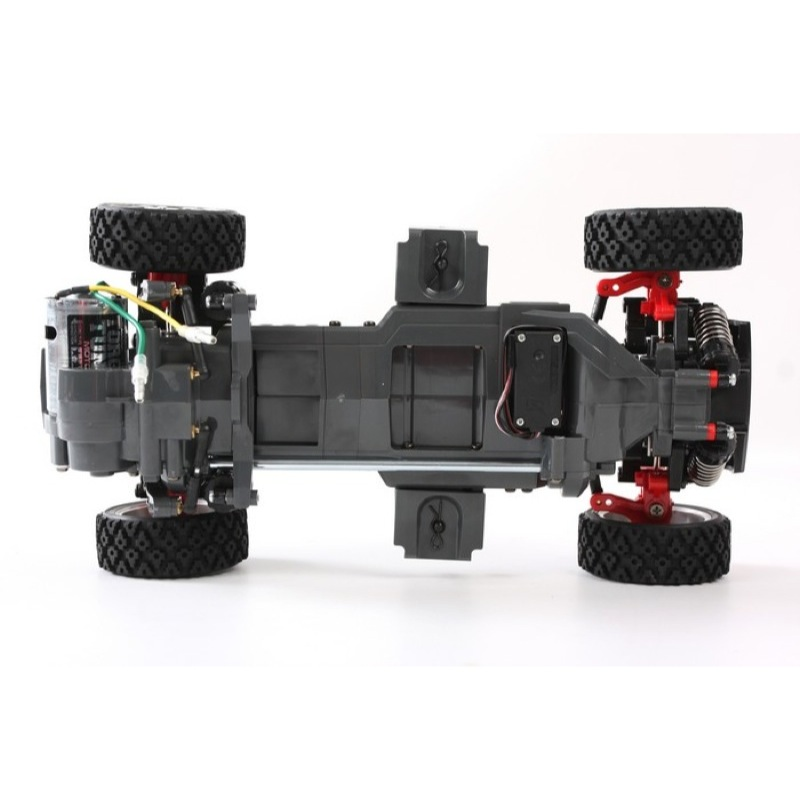

- The MF-01X has a three-section make-up; changing the central spacer section enables short
- (210mm), middle (225mm), and long (239mm) wheelbases. Item 58614 uses a middle wheelbase; option parts Item 54654 is needed to change to a short wheelbase, and Item 54655 when changing to a long wheelbase.
Requires
- 2-channel radio gear, 7.2 volt battery & charger, and Tamiya PS paint
