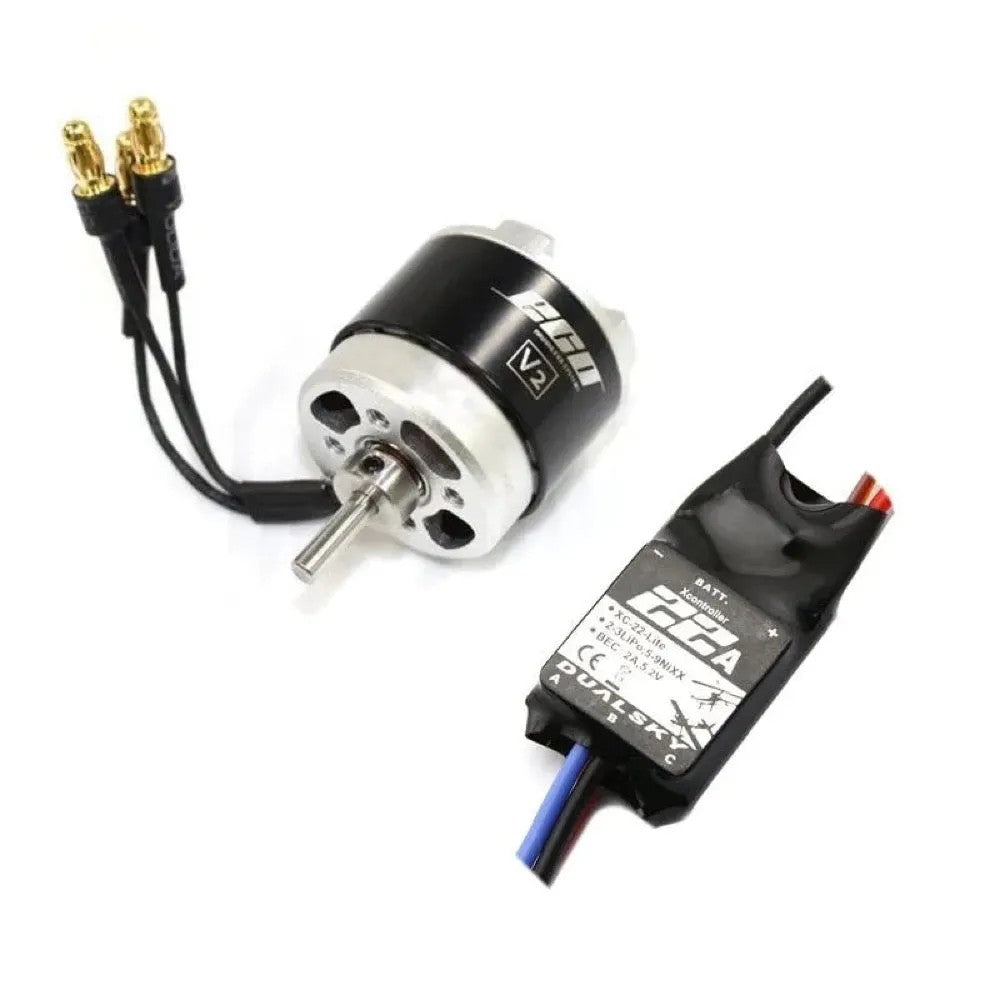

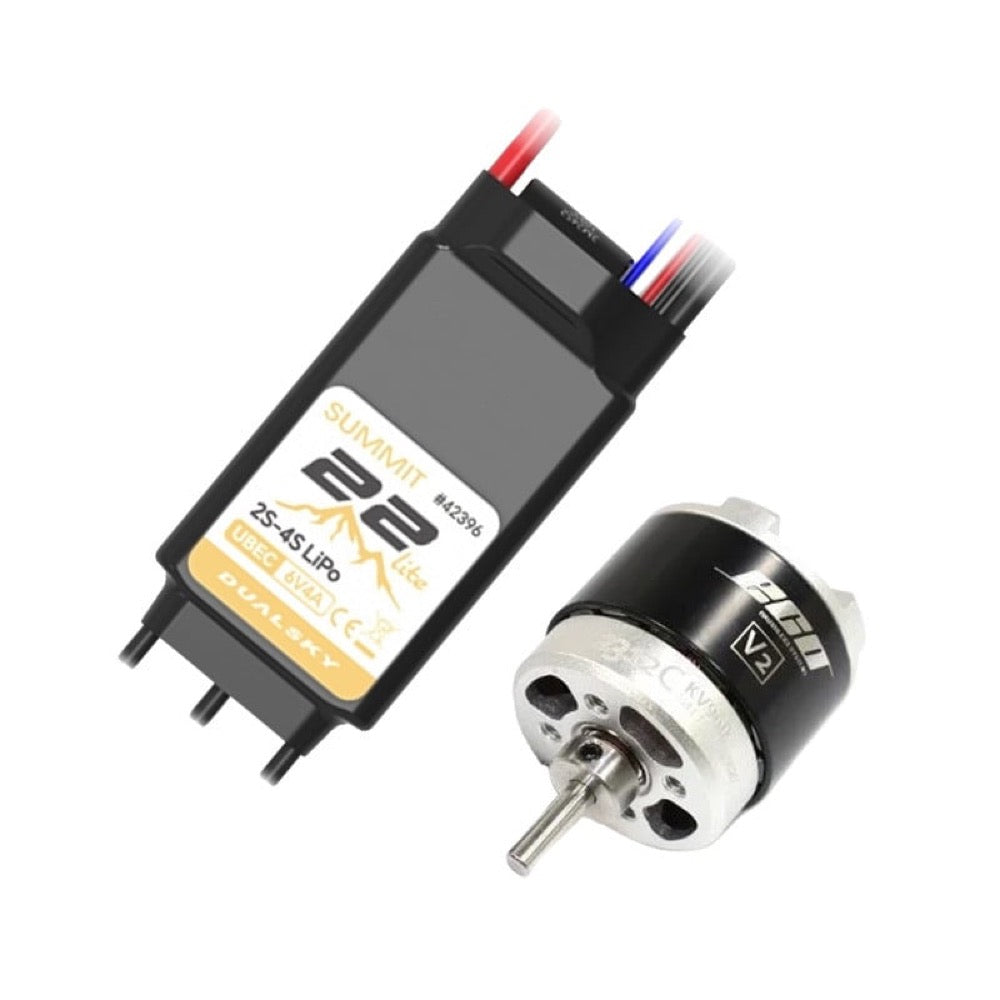

This Dualsky 400 Tuning Combo with 2312C V2 960kv Motor and Summit Lite 22A ESC is compatible with 3S-4S LiPo batteries and is designed for 400-800g sports airplanes, 400 size.
Features
- Includes new generation Summit Lite ESC
- Selectable rotation direction
- Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
- Integrated high-current UBEC with excellent peak performance
- Low voltage, overheat, throttle, current, and low RPM protection.
Specification
Motor
- KV: 960
- Turns: 11.5
- Weight: 58
- Dimensions: 28.8 x 28.9
- Slots & Poles: 12N14P
- Ri (mOhm): 123.5
- Io@10V: 0.5
- No. of cells: 3S-4S
- Max. Efficiency Current [A]: 13
- Max. Burst Current (15S) [A]: 21.5
- Max. Power (15S)[A]: 258
- Max. Torque [N*M]: 0.26
- Shaft diameter: 3.175mm
- Mounting holes pitch: 16/16
- Input Connectors: GC3.5
- Recommended ESC: XC-22-LITE or XC2512BA
- Propeller: 3S: 10x5E, 10x7E
- 4S:9x4.5E, 8x6E
- Class: 400 size, 400-800g sports airplanes
ESC
- Dimensions (LxWxH): 44 x 23 x 7.2mm (w/o wire)
- Weight (w/ wire): 18.2g
- Number of Cells: 2S-4S LiPo, 7.4V-14.8V
- Continuous Current: 22A
- Burst Current: 40A
- Resistance (Ri) (mOhm): ~6.0 milliohms
- Battery eliminate circuit BEC: 6.0V, Switching mode, 4A const./8A peaks
- Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
- Timing System: Programmable (Default=16°)
- Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
- Programming: USBLINK MP (BLHeli32_Suite)
- Start Power: 100% (Programmable)
- Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
- Telemetry: ON (Auto telemetry enabled, protocol=KISS)
- Energy Recovery: YES (Default-Disable, freewheel)
- Brake On Stop: Default=OFF (Adjustable)
- Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
- Low Voltage Protection: Programmable (Default=3.00V/cell)
- Acceleration: Default = Maximum (Programmable)
- Overheat Protection: YES(Default=140 C)
- Water & Dust Proof: IP43
- Beacon Beeps: YES, 20 Mins
- Input Wires: 18AWG, 120mm
- Wires to Motor: 20AWG, 70mm w/ DB2F
- Signal Wires: JR, 200mm + 1pin telemetry
- Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
- Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
