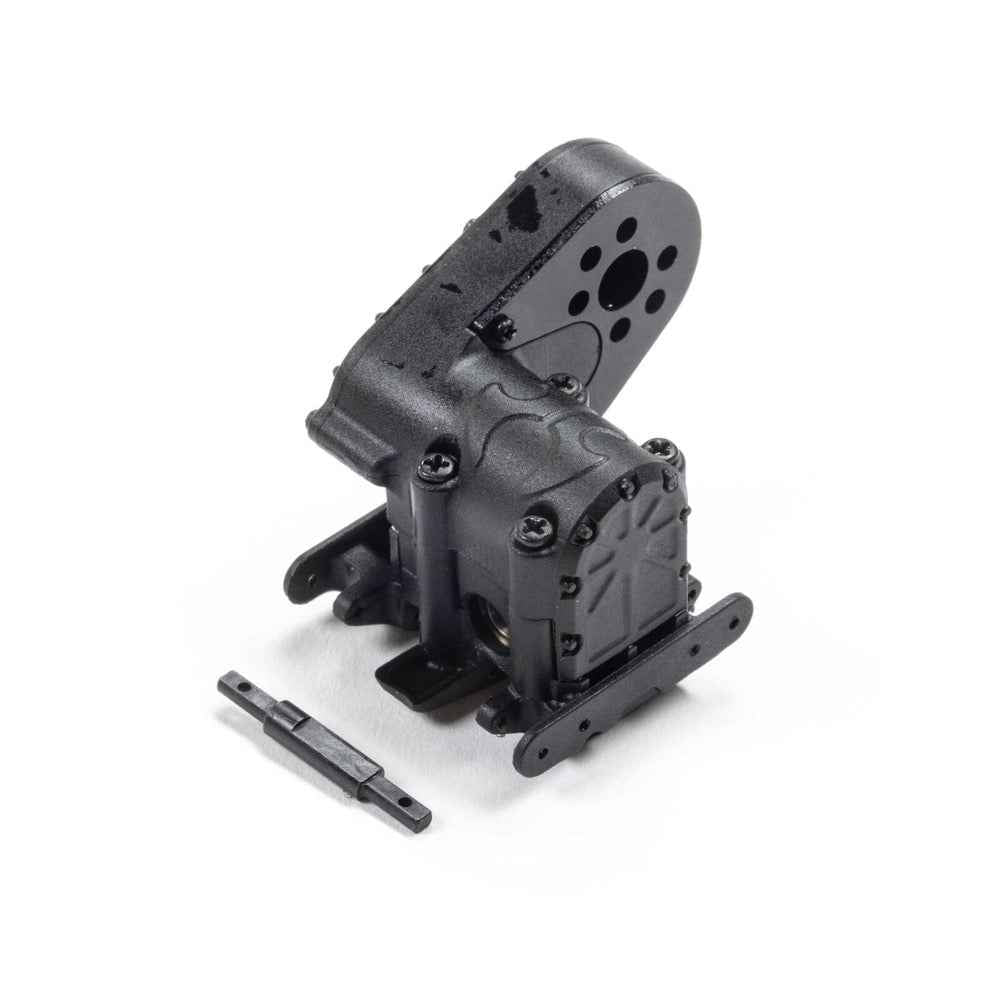

Axial AXI-3311 Transmission Assembled SCX30

Transmission, Assembled: SCX30

Features

• A fully assembled SCX30 transmission
• Includes an idler and transfer gear that drives the 2/12T worm gears

Contents

• (1) Transfer Gear, Mod 0.3, 30T, Trans
• (1) Idler Gear, Mod 0.3, 40T, Trans
• (1) Screw, M1.4 x 0.3mm x 5mm, Button Head
• (1) Pinion, Worm Gear, 2T, 2/12T, Trans
• (1) Ring Gear, Worm Gear 16T, 2/12T, Trans
• (1) Output Shaft, Trans
• (1) O-Ring, 3mm x 0.5mm
• (6) Screw, M1.0 x 0.25mm x 6mm, Button Head
• (4) Screw, M1.4 x 0.3mm x 12mm, Button Head
• (2) Screw, M1.0 x 0.25mm x 4mm, Button Head
• (2) Ball Bearing, 3mm x 6mm x 2mm
• (4) Ball Bearing, 3mm x 6mm x 2.5mm
• (1) Trans Cover
• (1) Trans Case, Upper
• (1) Trans Case, Skid Plate, Lower
• (1) Motor Plate, Trans
