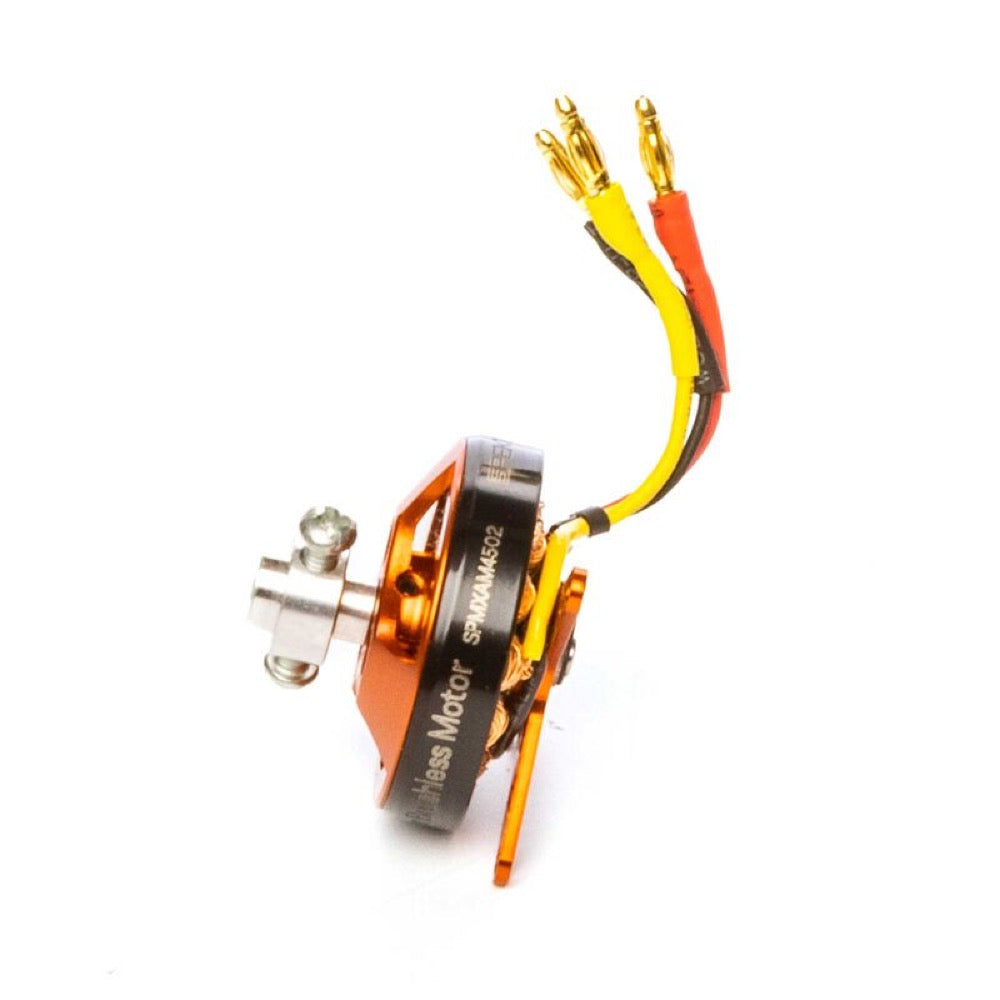

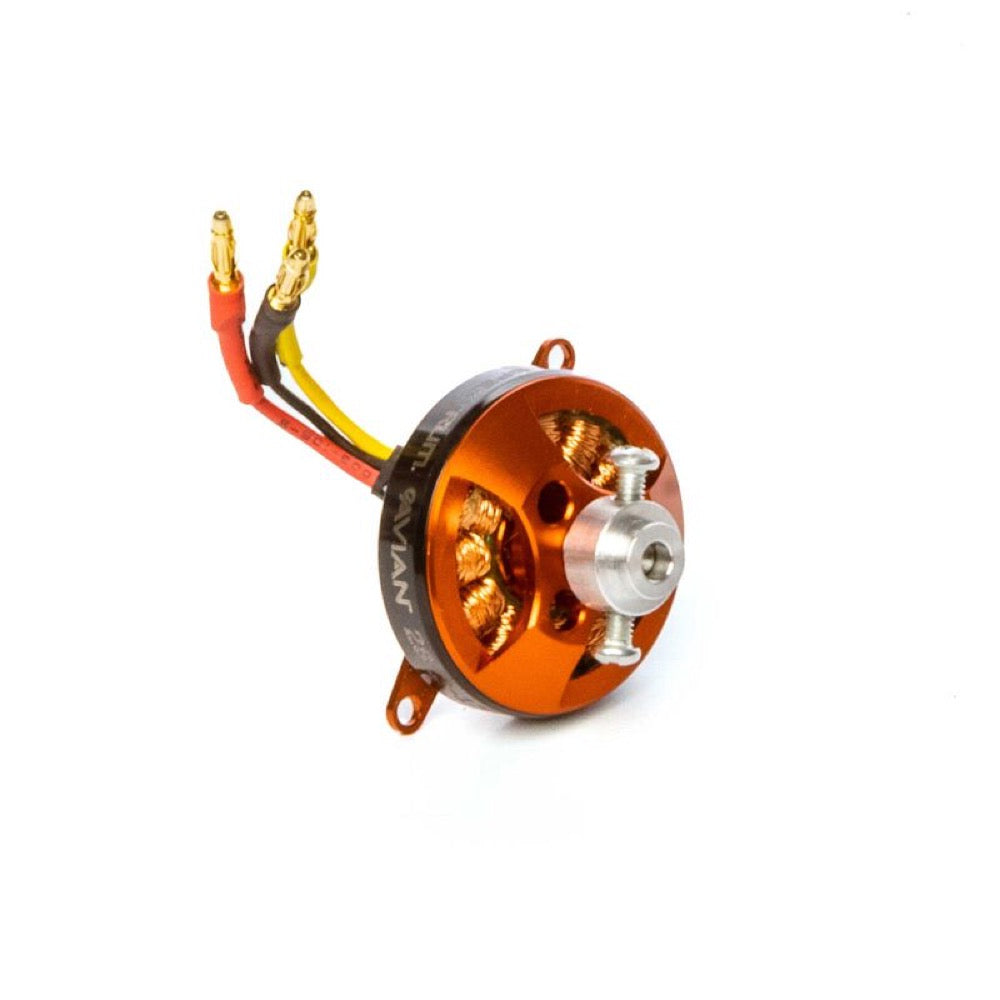

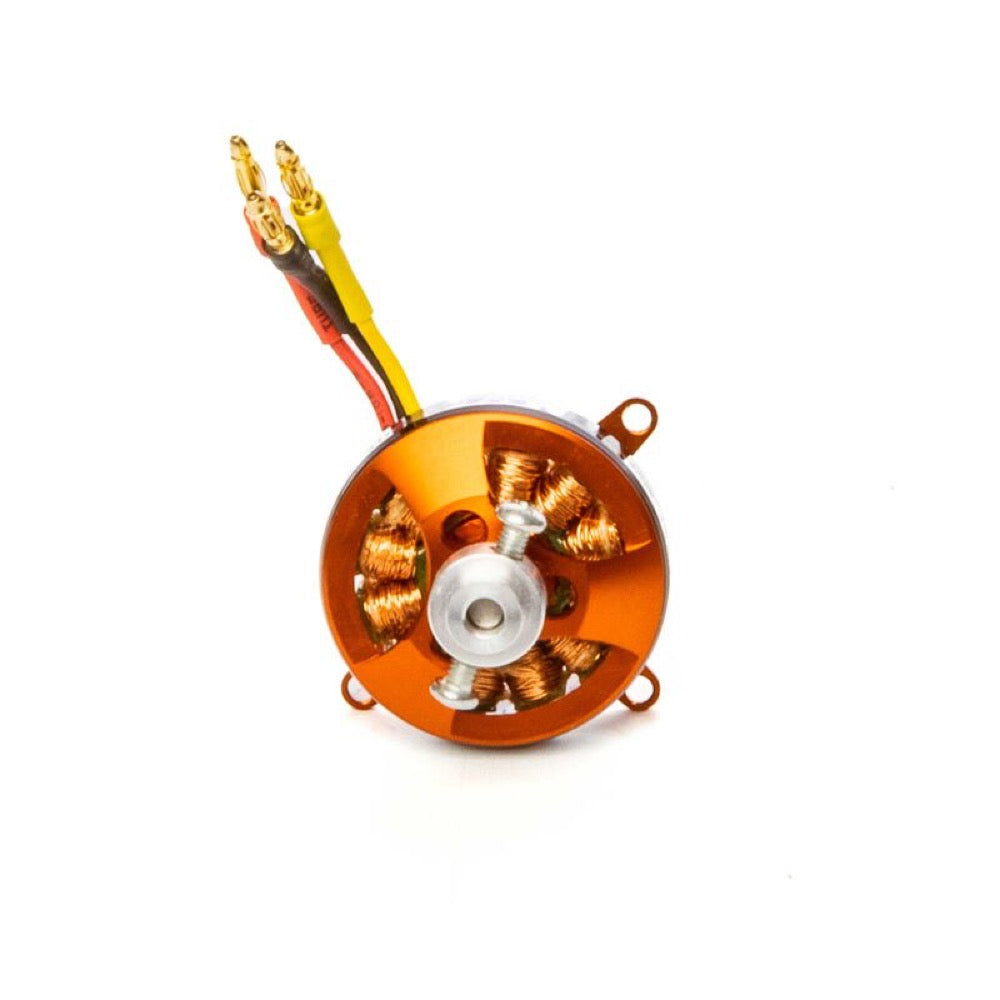

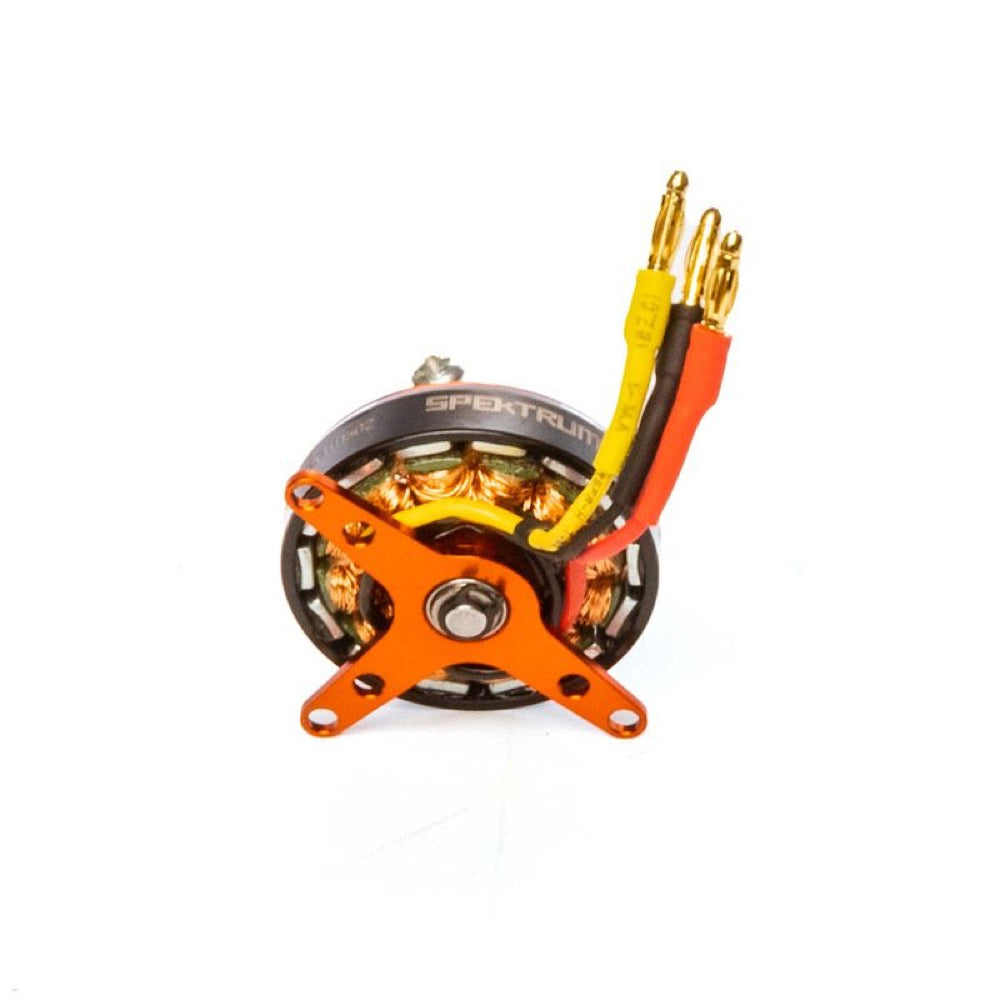

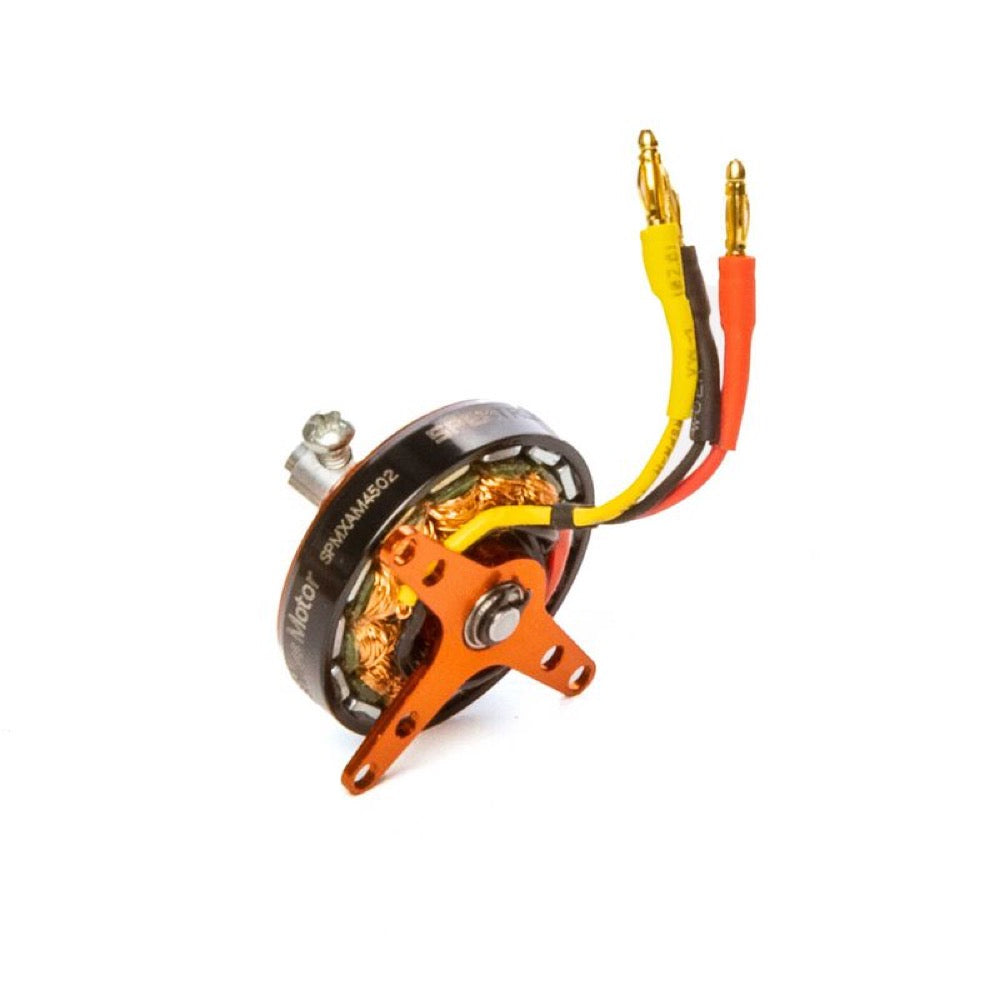

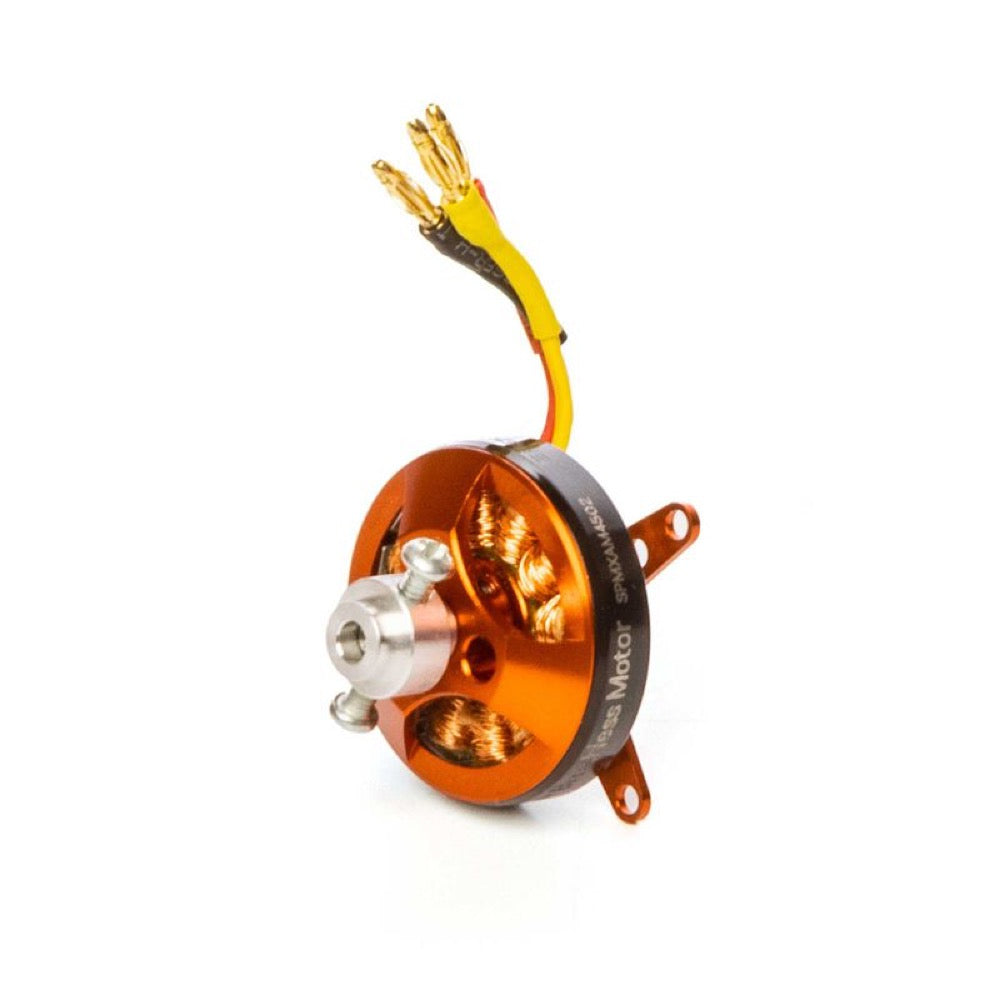

Spektrum SPMXAM4502 Avian 2813-1750Kv Brushless Outrunner Motor

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models!
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion
• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 15 amp ESC

Important Specs

• Recommended Voltage Range – 7.4-11.1V / 2-3S LiPo
• Recommended Propeller Range – 7x6 to 8x4 Slow-fly Prop
• Recommended Model Flying weight – 140g (5 oz) 3D - 225g (8 oz) Sport
• Max Wattage – 60w
• Max Current – Max Burst Amps (12A) Max Continuous Amps (8A)

Specs

• Adjustable Timing: No
• Application: Airplane
• Battery Input Lead: 1.57" (40mm)
• Connector Type: 2mm Bullet
• Idle Current (Io): 0.5A
• Input Voltage: 7.4V - 11.1V (2 - 3S LiPo)
• Motor Class: Parkflyers
• Motor Design: Outrunner
• Motor Type: Brushless
• Number of Poles: 14

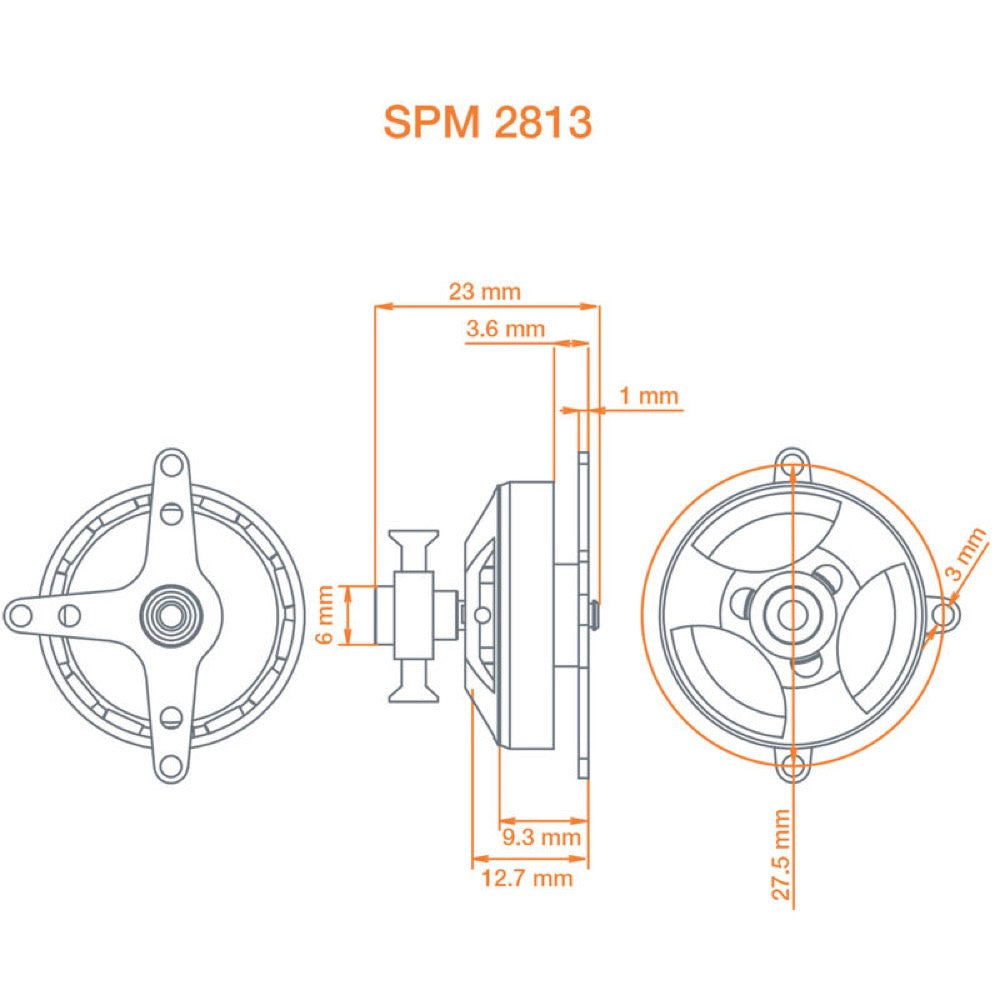

• Outer Diameter: 1.1" (28 mm)
• Output: 60W Constant, 100W Burst
• Product Length: 0.51" (13 mm)
• Product Weight: 0.38oz (10.7g) motor only, 0.44oz (12.4g) motor, mount & prop adapter
• Recommended Prop Range: 7x6 to 8x4 Slow-fly Prop
• Recommended Speed Control: 6A
• RPM/Volt (Kv): 1750Kv
• Shaft Diameter: 0.12" (3 mm)
