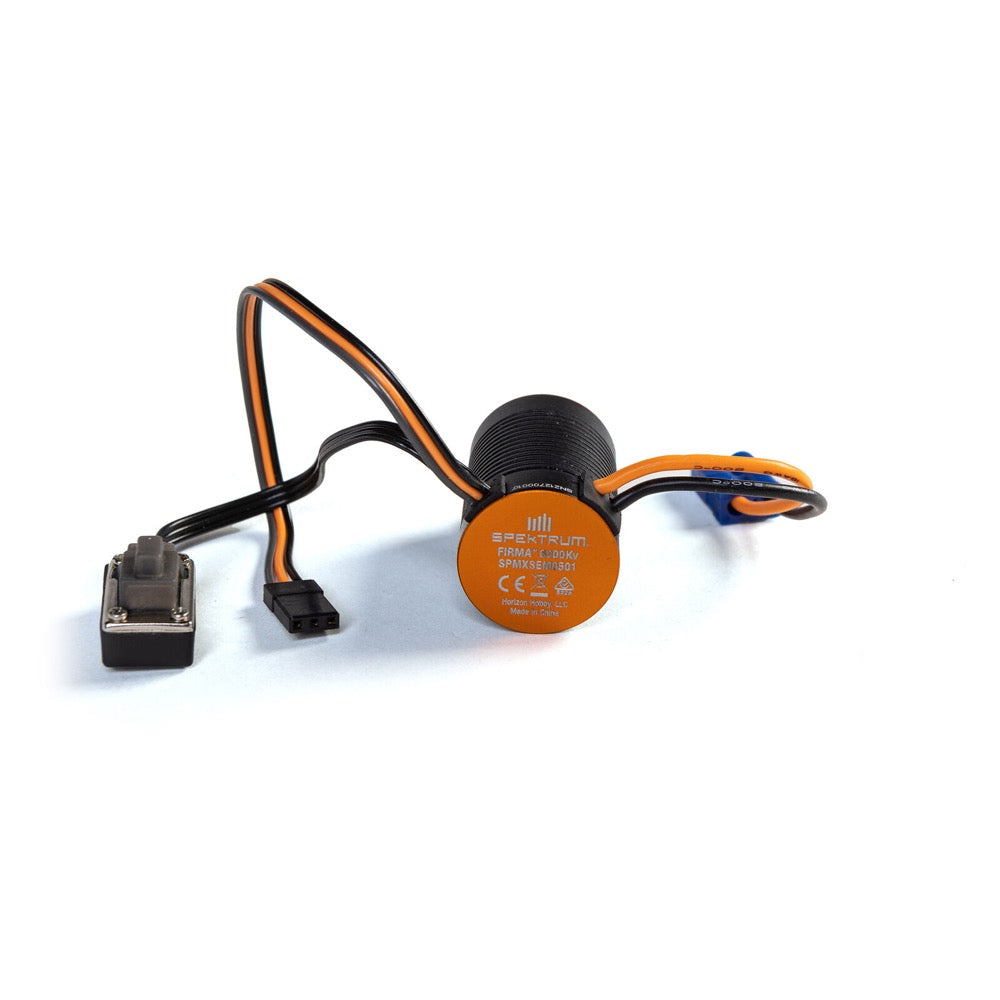

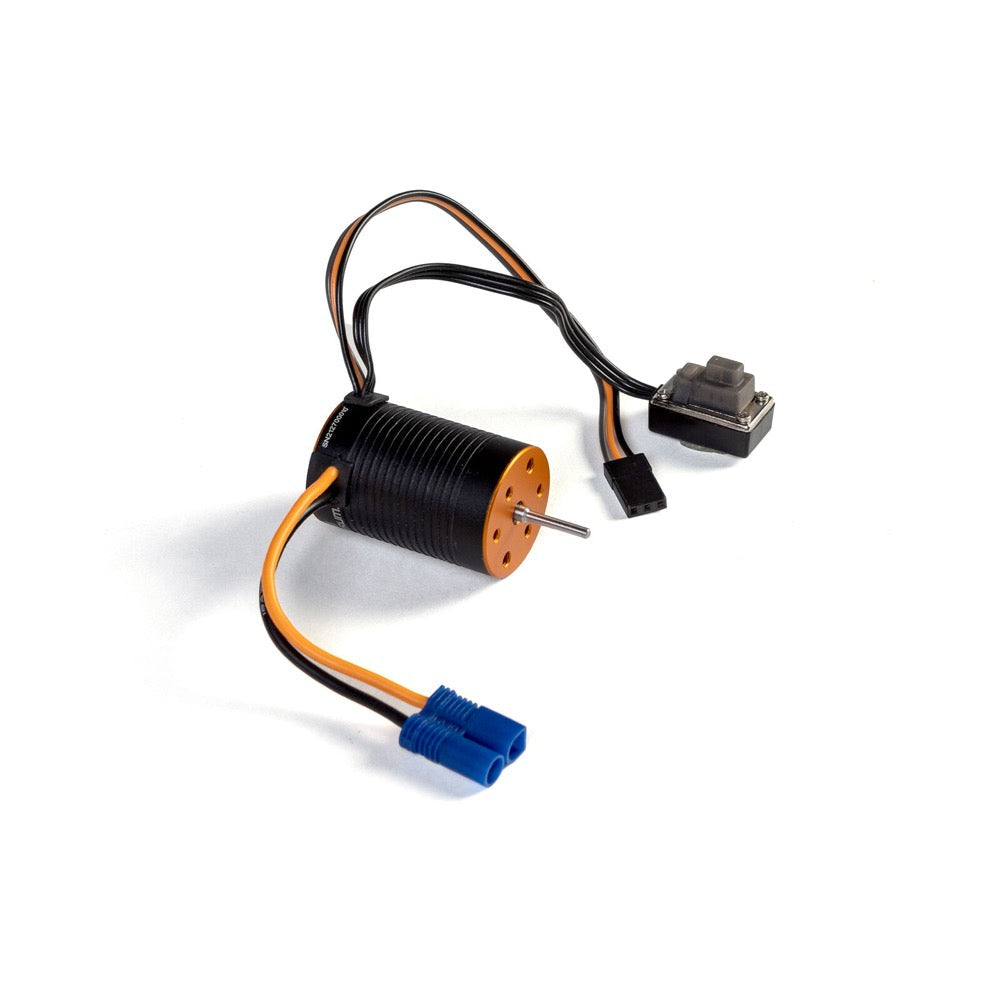

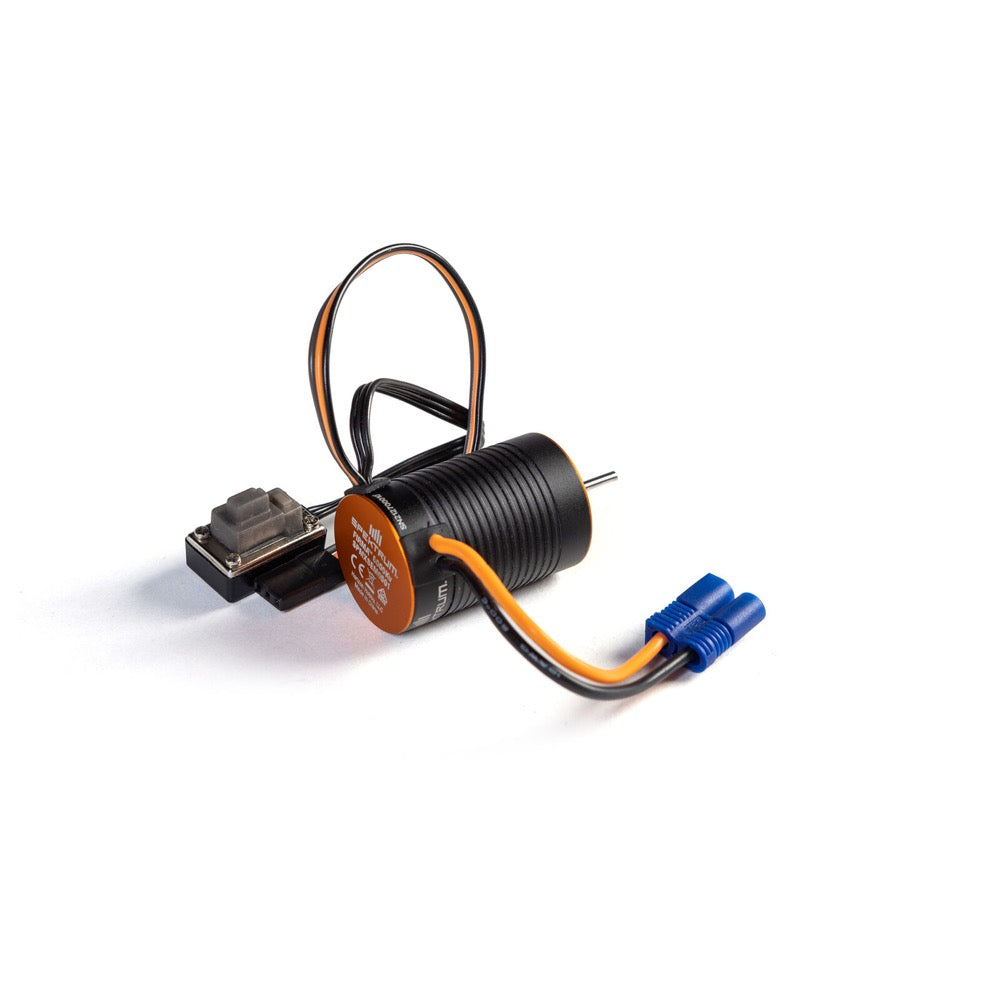

Spektrum SPMXAE2020 Dual Brushless ESC 150 S Smart

The Spektrum Firma 2 in 1 Brushless ESC and 6000kv motor is a powerful brushless upgrade for your 280 size and mini size models. These systems contain a high-torque and high speed 6000kv brushless sensorless motor that is designed for bashing and sport racing applications. The motor features the same basic dimensions and mounting patterns as industry-standard, 1/16 to 1/18, 280-size brushed motors, making it easy to install and setup. These motors also offer high performance over a longer lifetime with little to no maintenance.

Features

• Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2
• Integrated 20 amp ESC
• 2 in 1 design reduces space requirements
• EC2 connector that is compatible with popular battery types used in 1/18th scale models
• Perfect upgrade for brushed 280 motors with the same diameter
• Industry standard mounting hole patterns
• High torque and high RPM 6000kv Brushless Sensorless motor
• Counter-clockwise operation only
• Easy programming via one-button interface
• High-quality construction with ball bearings
• Hardened steel 2mm motor shaft
• Low maintenance design
• Easy installation

Specifications

• BEC: Yes
• Input Voltage: 2S LiPo
• RPM/Volt (Kv): 6000
• BEC Type: Switching
• Motor Design: Inrunner
• Outer Diameter: 0.94" (24 mm)
• Maximum Burst Current: 40A
• Maximum Continuous Current: 20A
• Motor Type: Brushless
• Speed Control: Included
• Product Length 1.41" (36 mm)
• Connector Type EC2
• Forward Yes
• Reverse Yes
• Overload Protection Yes
• Shaft Diameter 0.07" (2 mm)
• Auto Cutoff Yes
• BEC Continous Current 1A

Contents

• (1) Firma 2 in 1 Brushless ESC + 6000kv motor
• (1) Product Manual
