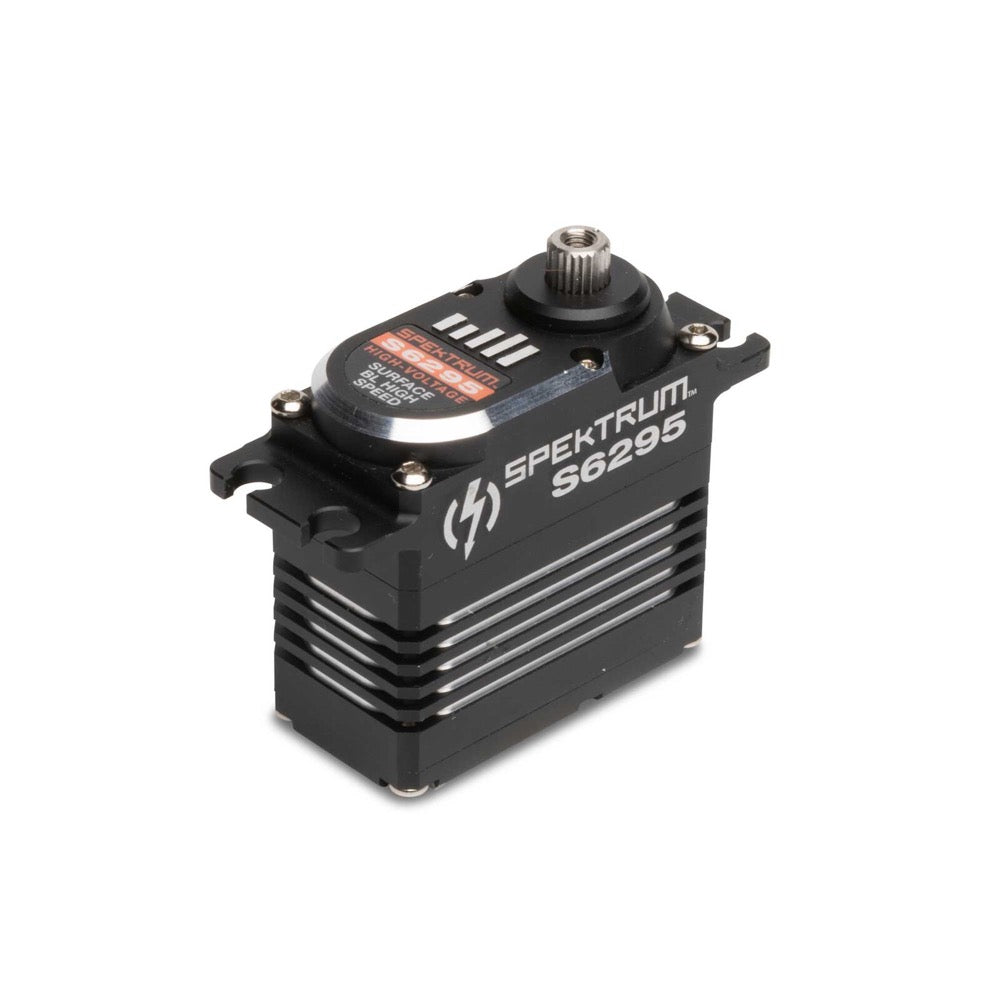

Spektrum SPMSS6295 1/8 High Speed Race Servo

Spektrum High-Voltage Brushless Servos deliver premium power, precision, and performance.

The S6295 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6295 also offers superior protections, such as soft start, over current protection and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6295 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.

Features

• Sleek black and silver anodized metal case

• Brushless power and reliability

• High Voltage (HV) Capable (6.0V-8.4V)

• 23T output Spline

• Water Resistant

• Hardened steel gears

• Precision engineered gear train for tight and low wear mesh

• Ultra-fast transit speed (0.062sec at 8.4V)

• Impressive torque (30kg-cm / 416oz-in at 8.4V)

• Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers

• Removable standard size servo connector for easy lead swaps

• Soft-Start puts less strain on steering components during start up

• Advanced failsafe and protections

Specifications

• Max Servo Torque: 350-499 oz-in

• Spline Count: 23 - Tooth

• Water-Resistant: Yes

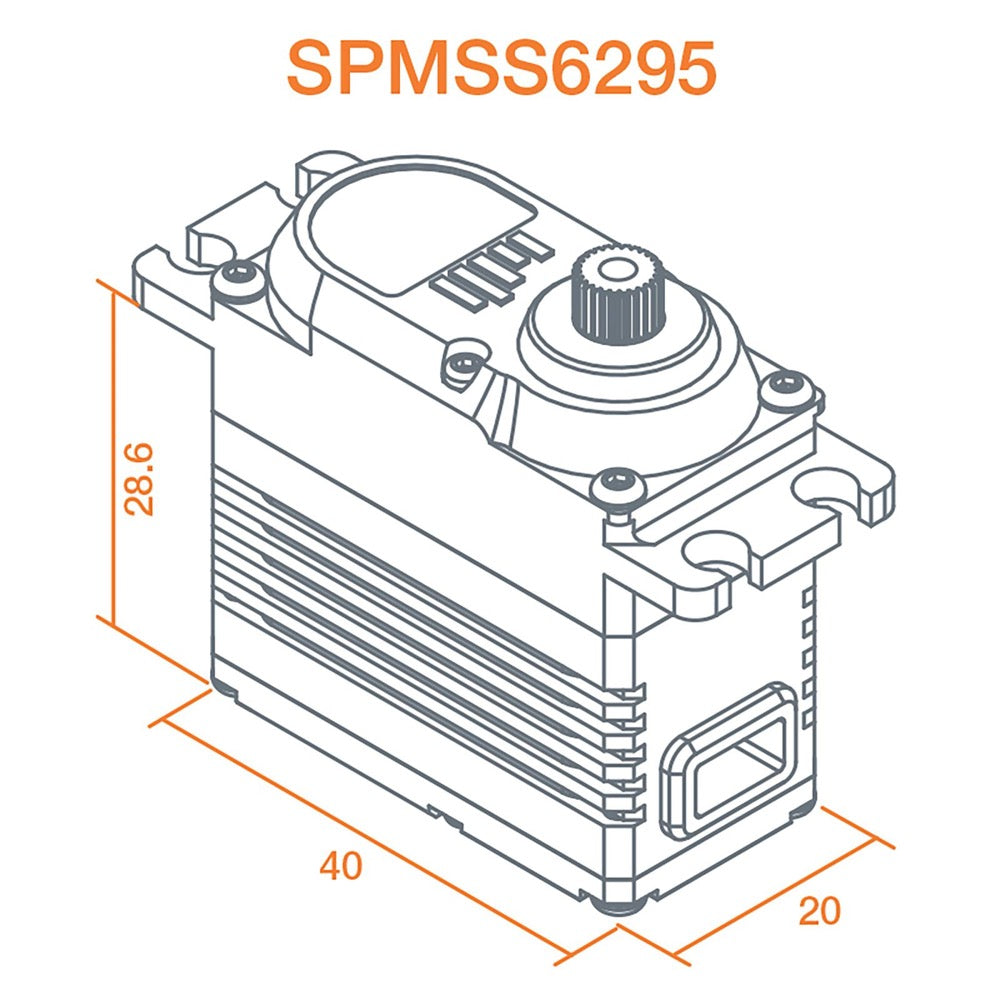

• Product Height: 1.12" (28 mm)

• Servo Type: Digital

• Torque: 416oz-in (30kg-cm) at 8.4V

• Connector Type: Universal

• Product Length: 1.57" (40 mm)

• Product Width: 0.78" (20 mm)

• Servo Operating Voltage: 6.0 - 8.4V (HV)

• Servo Size Category: Standard

• Gear Type: Metal

• Maximum Servo Speed: 0.050-0.099 sec
