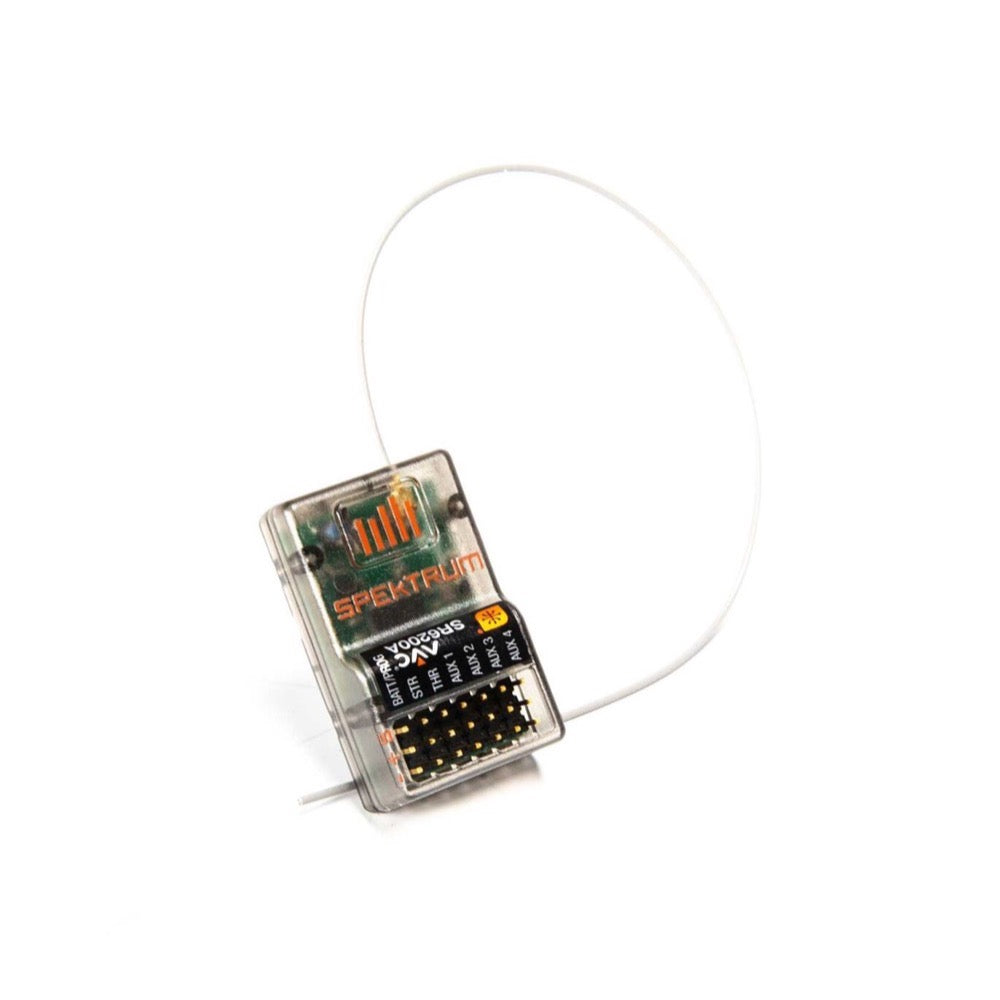

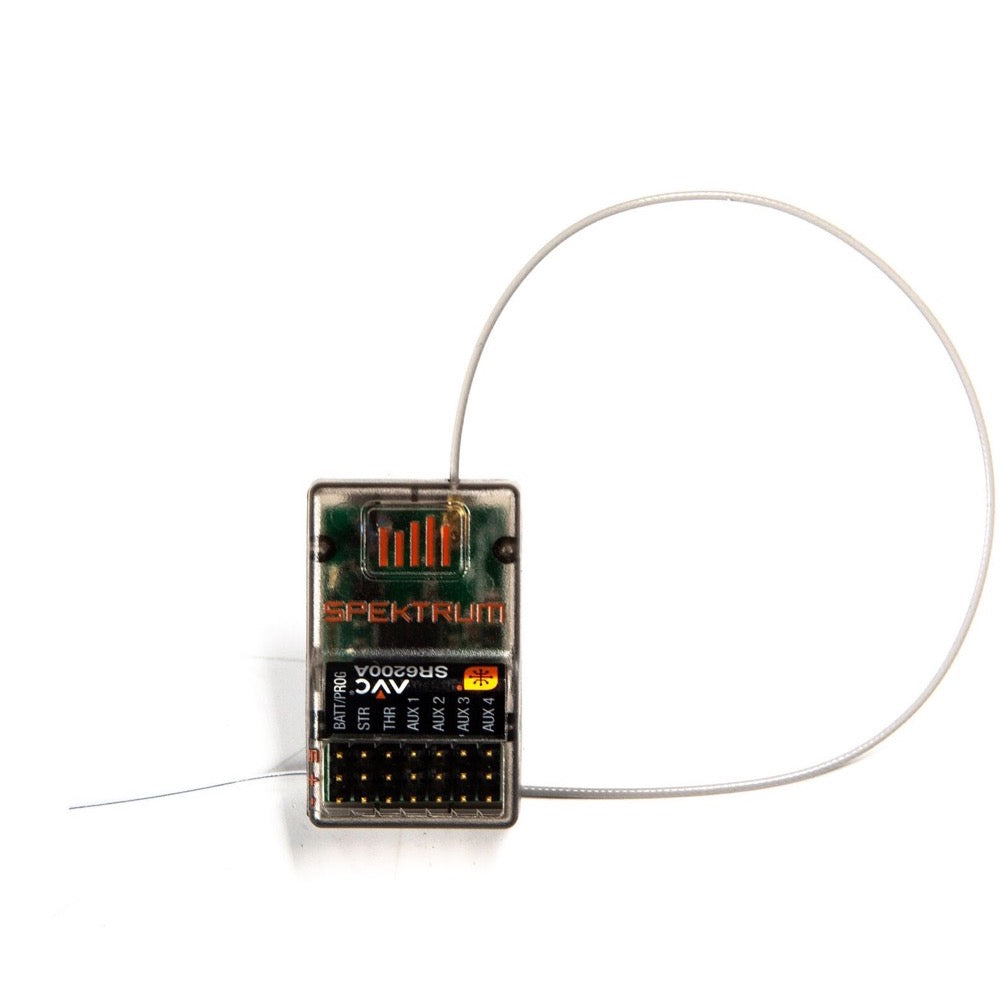

Spektrum SPMSR6200A SR6200A DSMR 6-Channel AVC Surface Receiver

SR6200A DSMR 6-Channel AVC Surface Receiver

Built around frequency-agile DSMR® technology, the Spektrum™ SR6200A 6-channel DSMR receiver delivers superb range and response along with unbeatable signal security in a compact, easy-to-install package. AVC® (Active Vehicle Control™) technology increases your stability on tough terrain. Compatible with innovative Smart Technology, the AR6200A receiver also provides real-time telemetry data when used with a Smart ESC and Smart battery.

Smart Throttle

The SR6200A receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Smart ESC and Spektrum Smart LiPo batteries, the SR6200A can pass along a multitude of helpful telemetry and battery data with no additional modules, sensors or wires. If a standard ESC or servo is plugged into the throttle port on the SR6100AT receiver, the throttle port will operate normally like any conventional receiver.

AVC Technology

With the SR6200A driver's get stability control for ANY vehicle in their collection! You can have the stability control of AVC™ (Active Vehicle Control) technology in any vehicle just by adding the SR6200A receiver and binding it to an AVC compatible transmitter. AVC technology creates a more enjoyable driving experience by managing the vehicle's driving characteristics and attitude. This translates into more control for you and a more manageable vehicle in all driving environments.

Features

• 6-channel DSMR / DSM2 receiver
• Compact size better fits in tight builds and setups
• Long antenna for better range and reception
• Drive By telemetry capabilities with Spektrum Firma Smart ESC
• Great for models that will benefit from AVC Technology that need additional channels for lights, shift servos and other accessories
• Steering priority puts the driver in complete control
• Fully adjustable-set the precise amount of stability you want or turn off if desired
• Water-resistant "Reliakote" coating protects electronics
• Works with any RC car, truck or buggy
• Compatible with all DSMR transmitters

Specification

• Part Number: SPMS614
• Modulation: DSMR
• Telemetry: Yes
• Antenna Length: 9" (229 mm)
• Product Width: 0.95" (24 mm)
• Technology: Smart
• Channels: 6
• Bind Method: Bind Button
• Range: Full
• Product Length: 1.53" (39 mm)
• Band: 2.4GHz
• Input Voltage: 3.5 - 9.6V
• Product Height: 0.54" (14 mm)
• Application: Surface
• Failsafe: Yes
• Product Weight: 0.328oz (9.3g)
