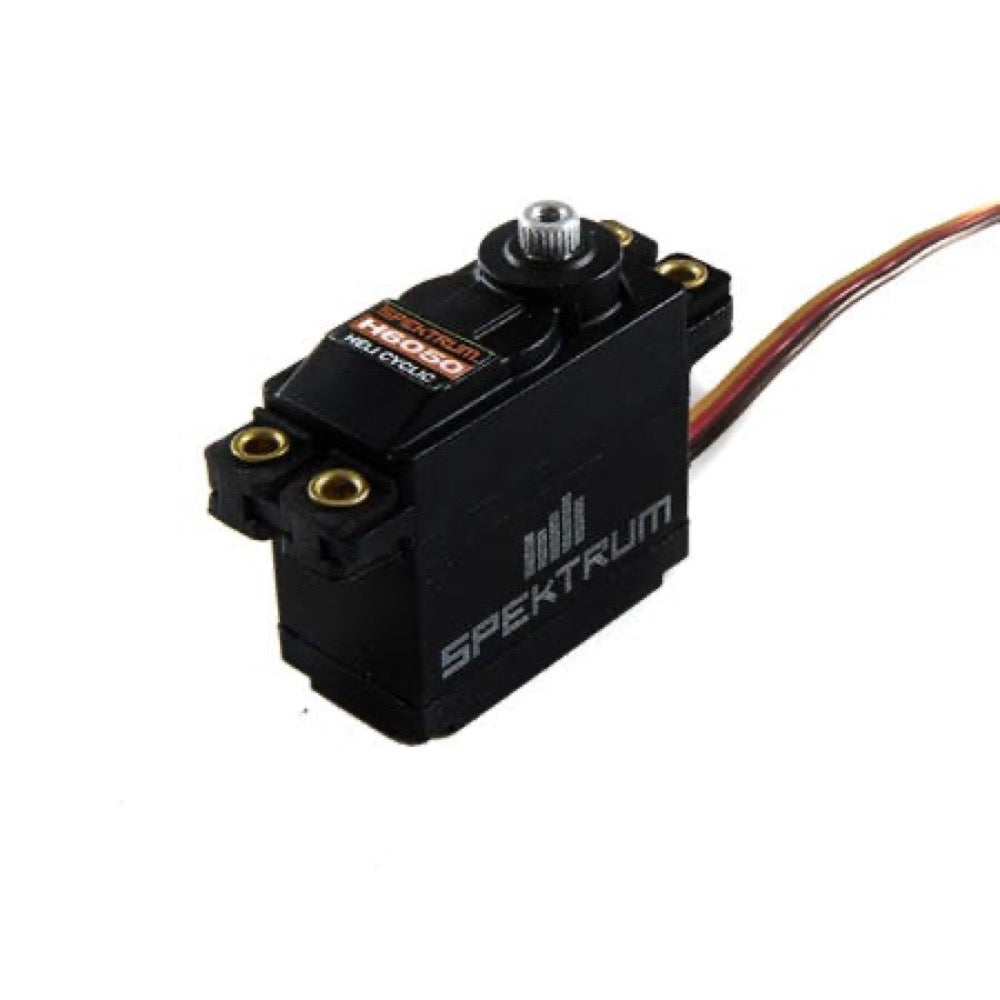

Spektrum SPMSH6050 H6050 Mid-Torque Mid-Speed Heli Cyclic/Tail Servo

The H6050 is a budget-friendly digital cyclic servo that is purpose-built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable full metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high-performance heli models.

Features

• Standard size servo for 500 size Helicopter models and smaller
• 160oz Torque and .103 sec speed at 6.0v
• 4.8v-6.0v input voltage
• Long 10 inch (255mm) connector wire to reduce the need for extensions
• 23 Tooth spline
• Bearing supported output spline

Specification

• Size Category: Standard
• Type: Digital
• Application: Heli Tail
• Torque: 160 oz-in (11.5 kg-cm) @ 6.0V
• Speed: 0.103 sec/60 deg @ 6V at no load
• Length: 1.57 in (39.9 mm)
• Width: 0.78 in (19.8 mm)
• Height: 1.57 in (39.9 mm)
• Weight: 2.2 oz (62g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Z-Connector
• Gear Type: Metal
• Gear Material: Alloy
• Voltage: 4.8-6.0V
• Deadband: Less than 1µs
