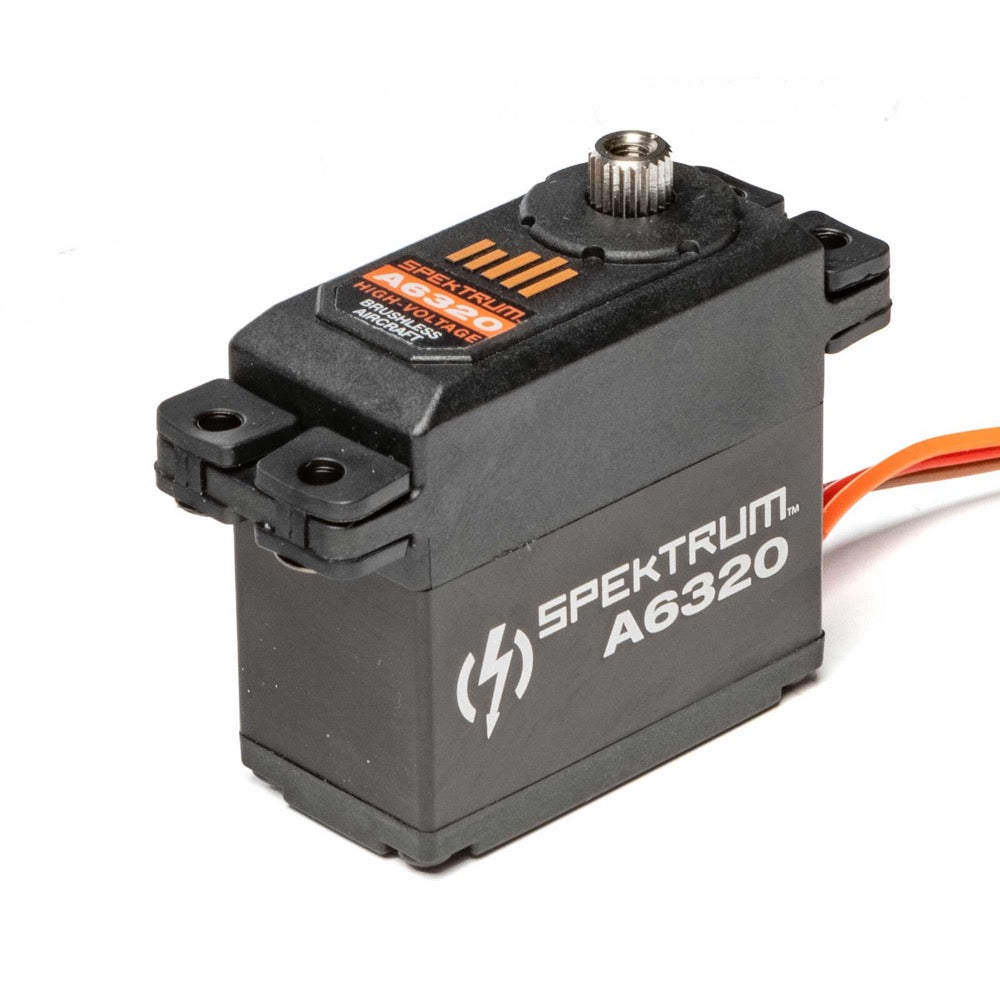

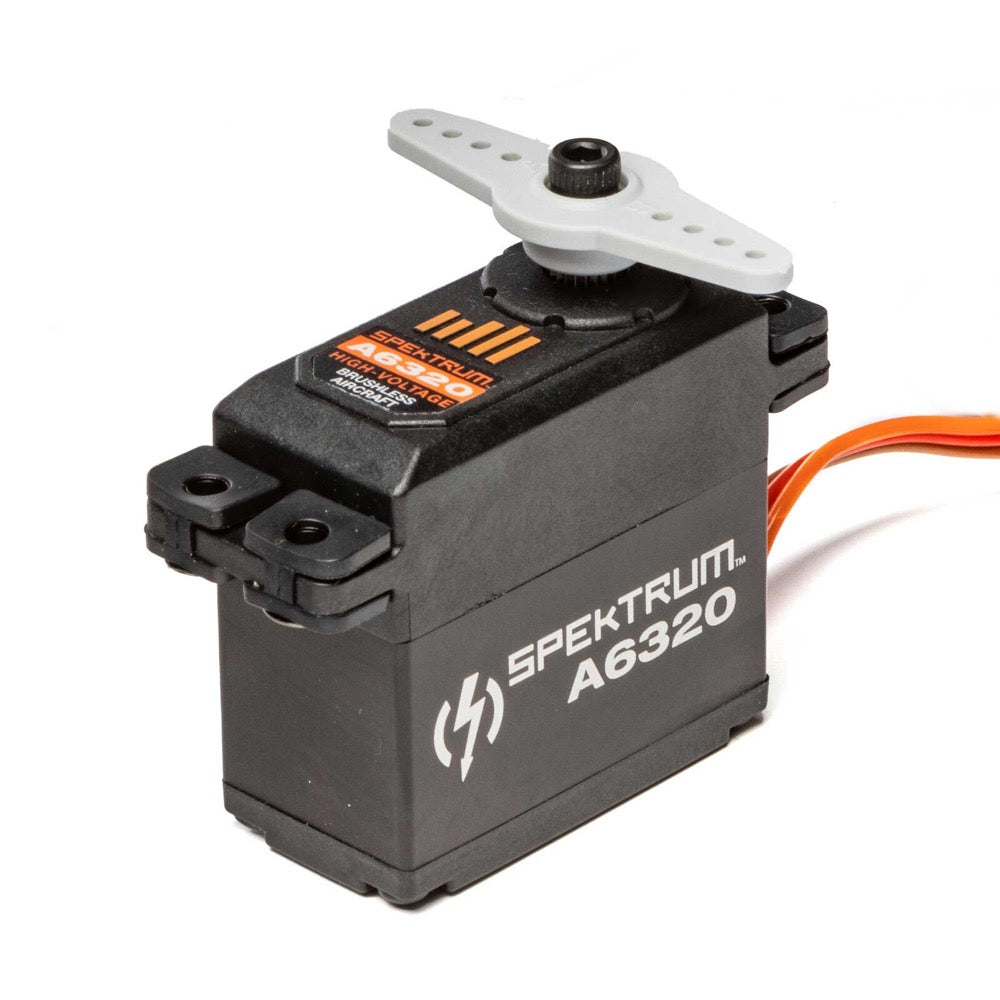

Spektrum SPMSA6320 SA6320 Brushless HV Metal Gear Digital Servo

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets

*Torque and Transit @ 8.4V

Features

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Specification

• Application: Airplane
• Bearing: Dual Ball Bearing
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Deadband: 3µs
• Gear Type: Metal
• Maximum Servo Speed:
  0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
• Maximum Servo Torque:
  150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
• Motor Type: Brushless
• Product Application: Air

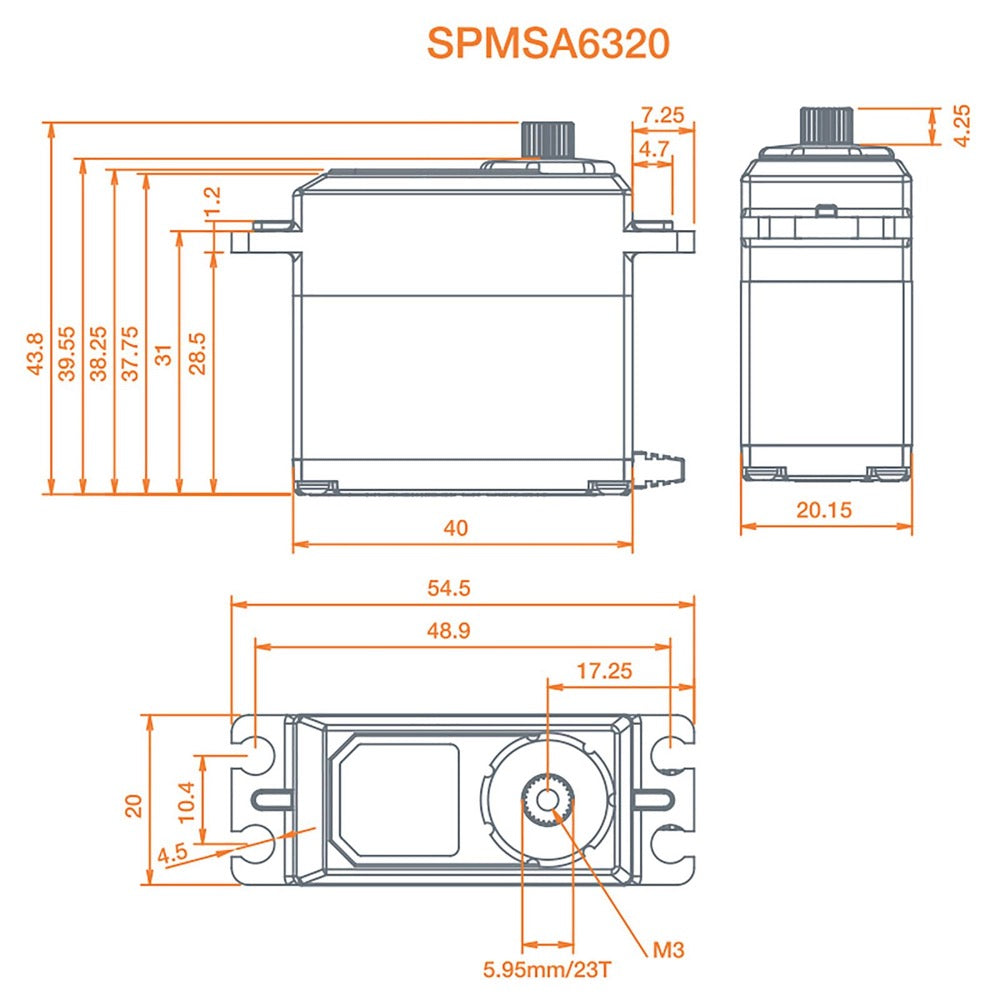

• Product Height: 1.49" (38 mm)
• Product Length: 1.57" (40 mm)
• Product Weight: 2.2 oz (62 g)
• Product Width: 0.79" (20 mm)
• Programmable: No
• Servo Operating Voltage: 6.0 - 8.4V (HV
• Servo Size Category: Standard
• Servo Type: Digital
• Spline Count: 23 Teeth
• Water-Resistant: No
• Wire Gauge: 22 AWG
