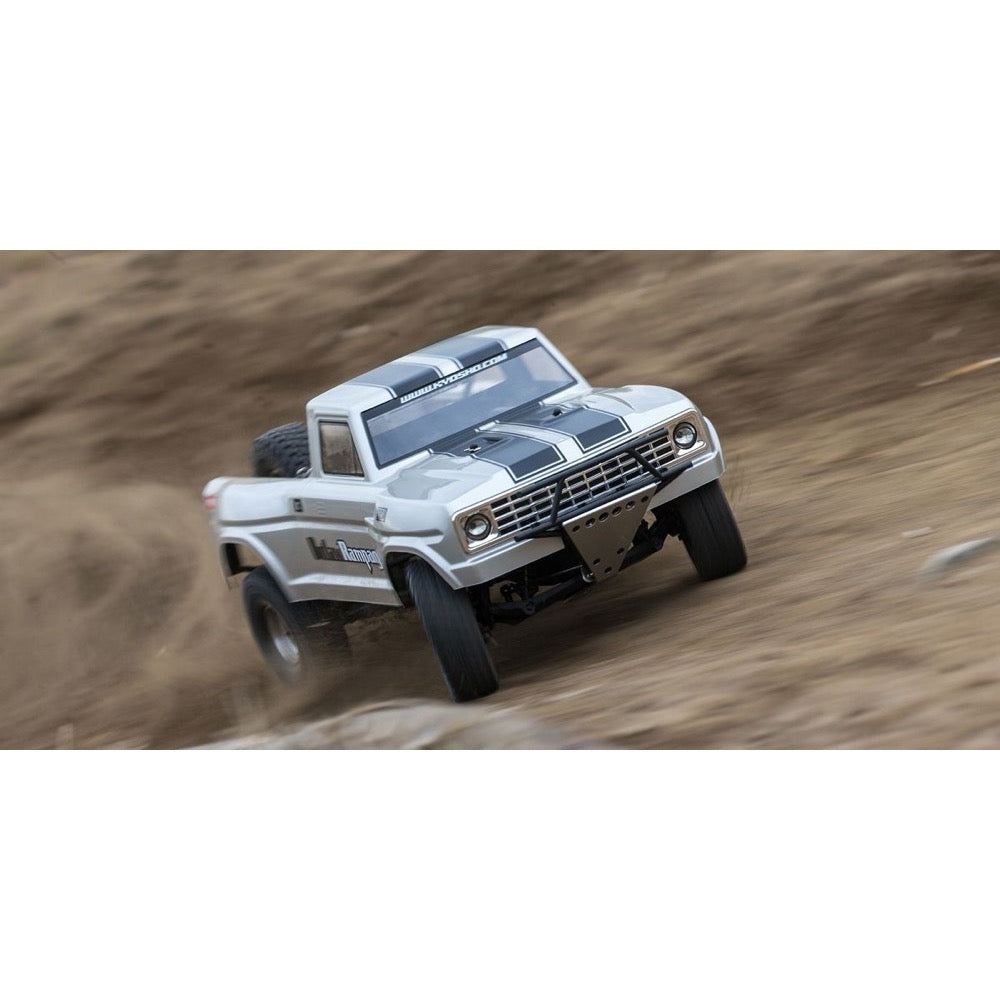

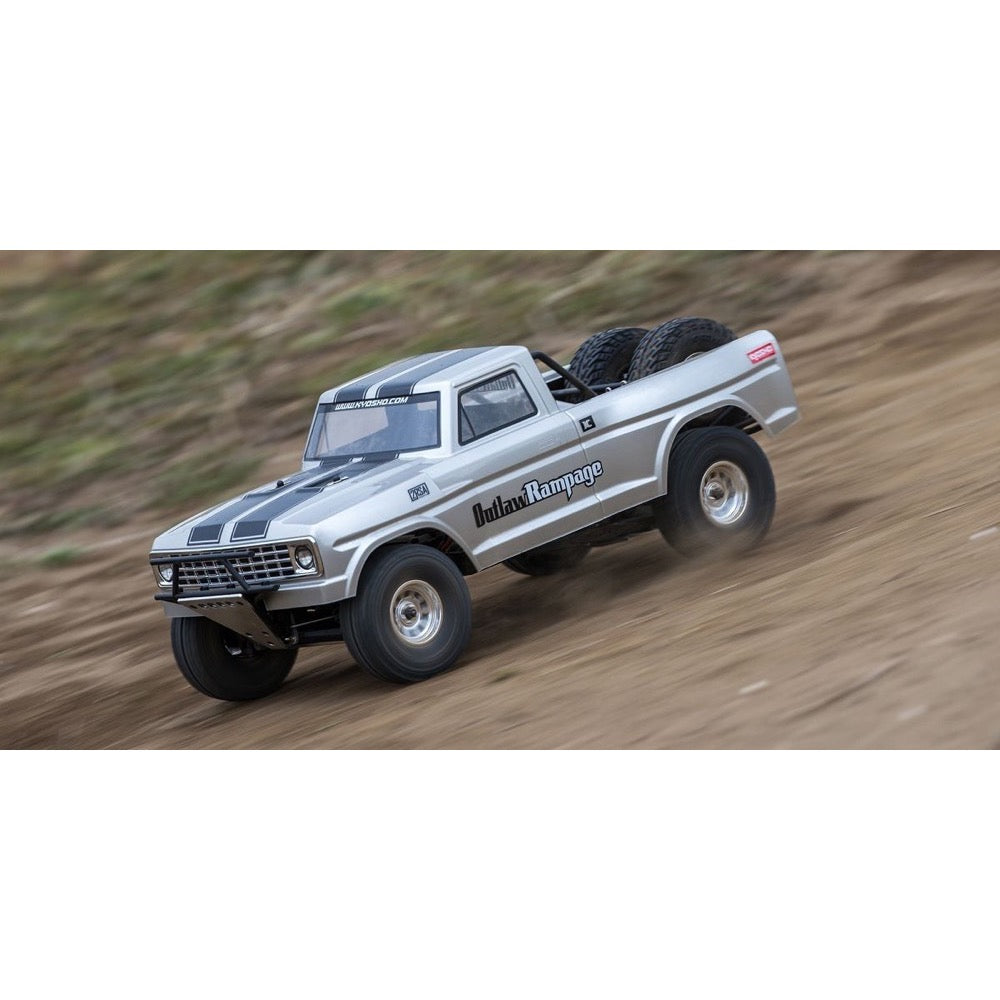

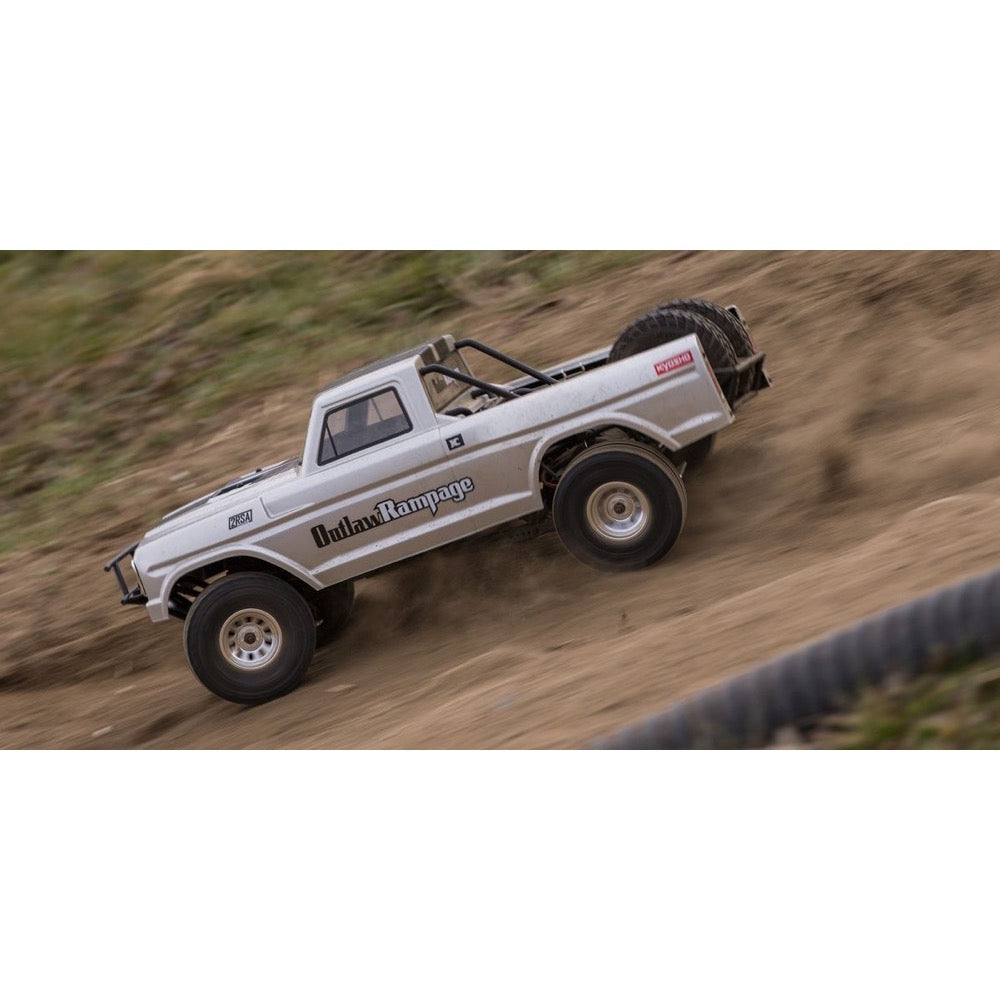

Experience the dynamic control of this 2WD trophy truck, packed with optional performance parts as standard.

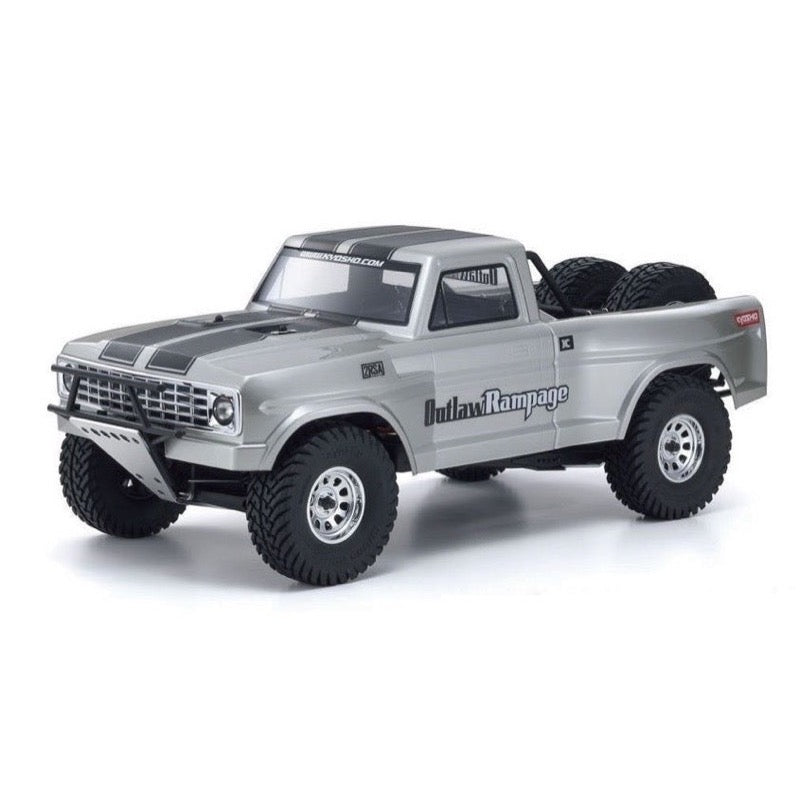

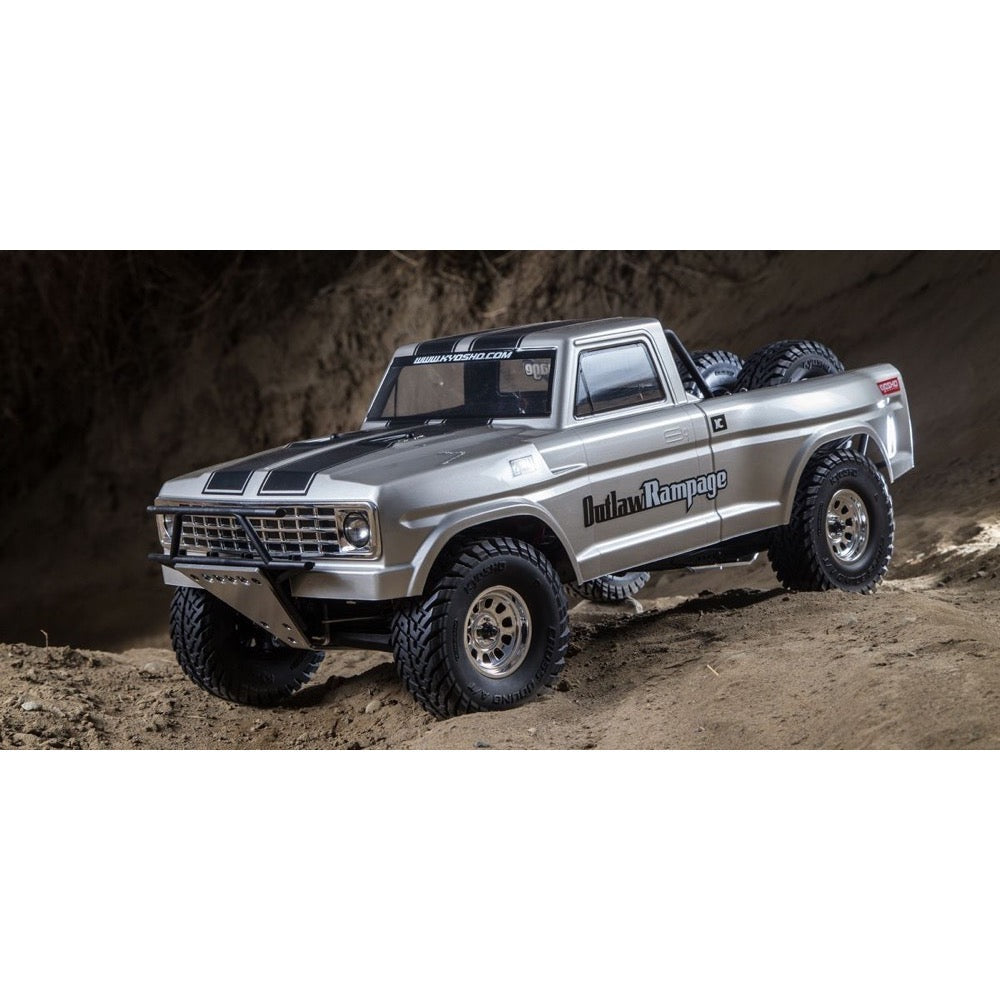

Embodying the defining mechanics of a real production model trophy truck, the scale 2WD Outlaw Rampage is about 80% pre-assembled in an ARR kit, including the optional upgrade components that mark this machine as a “PRO” version. While power and steering control is more challenging than a 4WD model, the superior running stability and overall functionality of this rear wheel 2WD is realized from the roll cage, long stroke aluminum oil shocks, stabilizers on front and rear with 3 different wire gauge settings, and aluminum skid pads that protect the chassis. With easy controllability and wider scope for setting adjustments, the true dynamic performance of 2WD truck racing is in your hands.

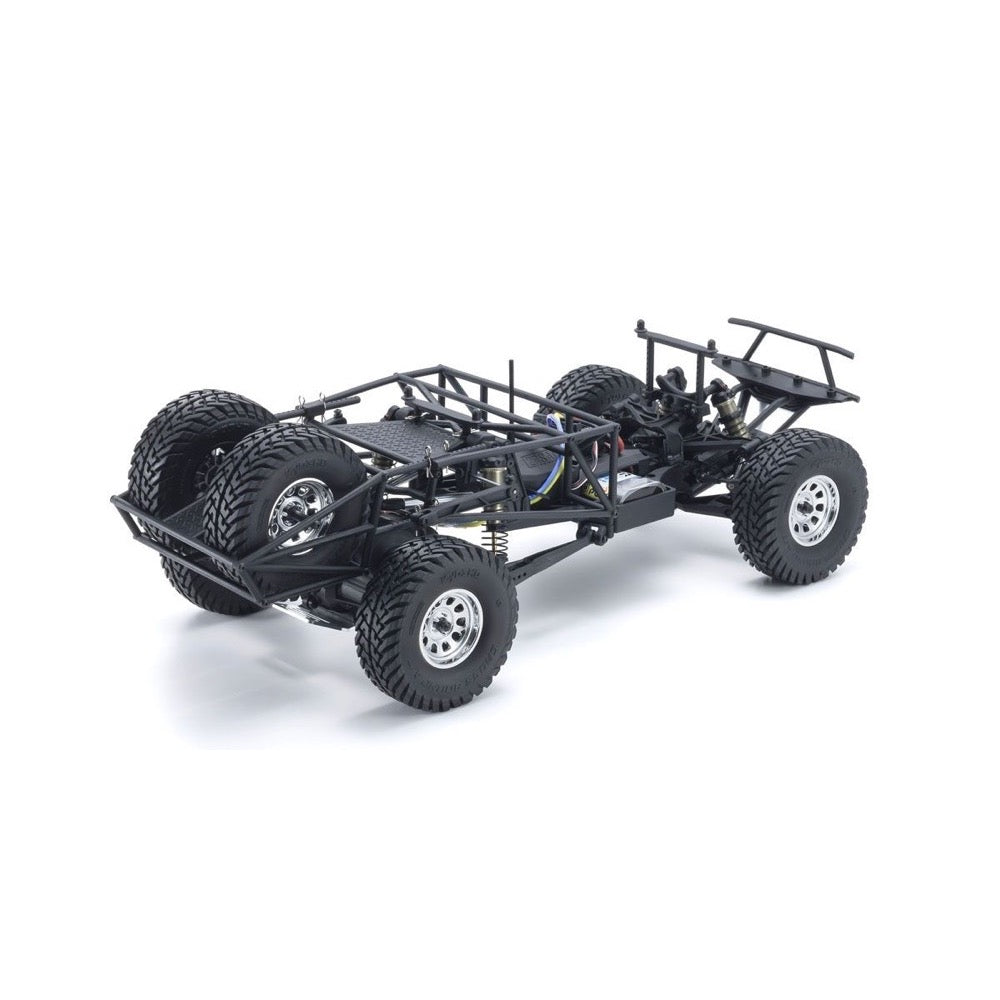

Chassis and Frame
High strength and easy maintenance of the bathtub type chassis combines with a reinforced frame and dustproof monocoque radio box for high durability in hard driving.

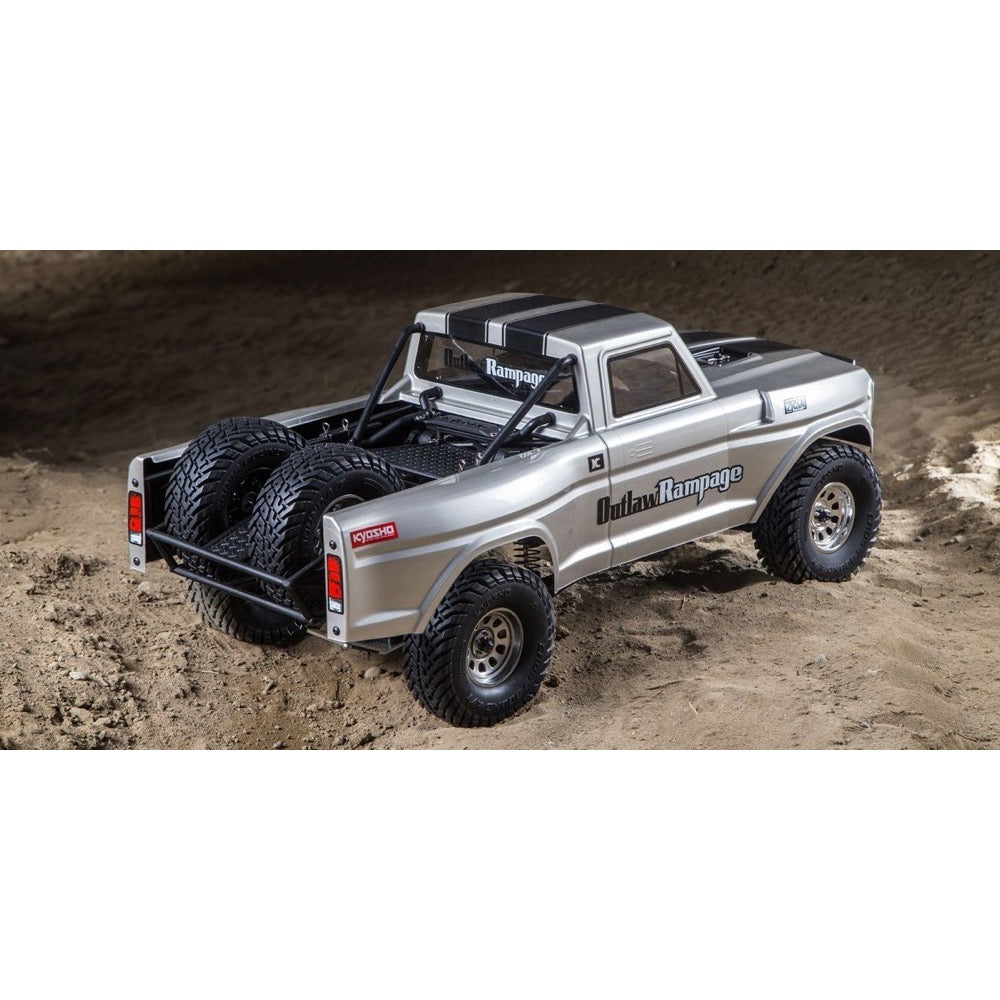

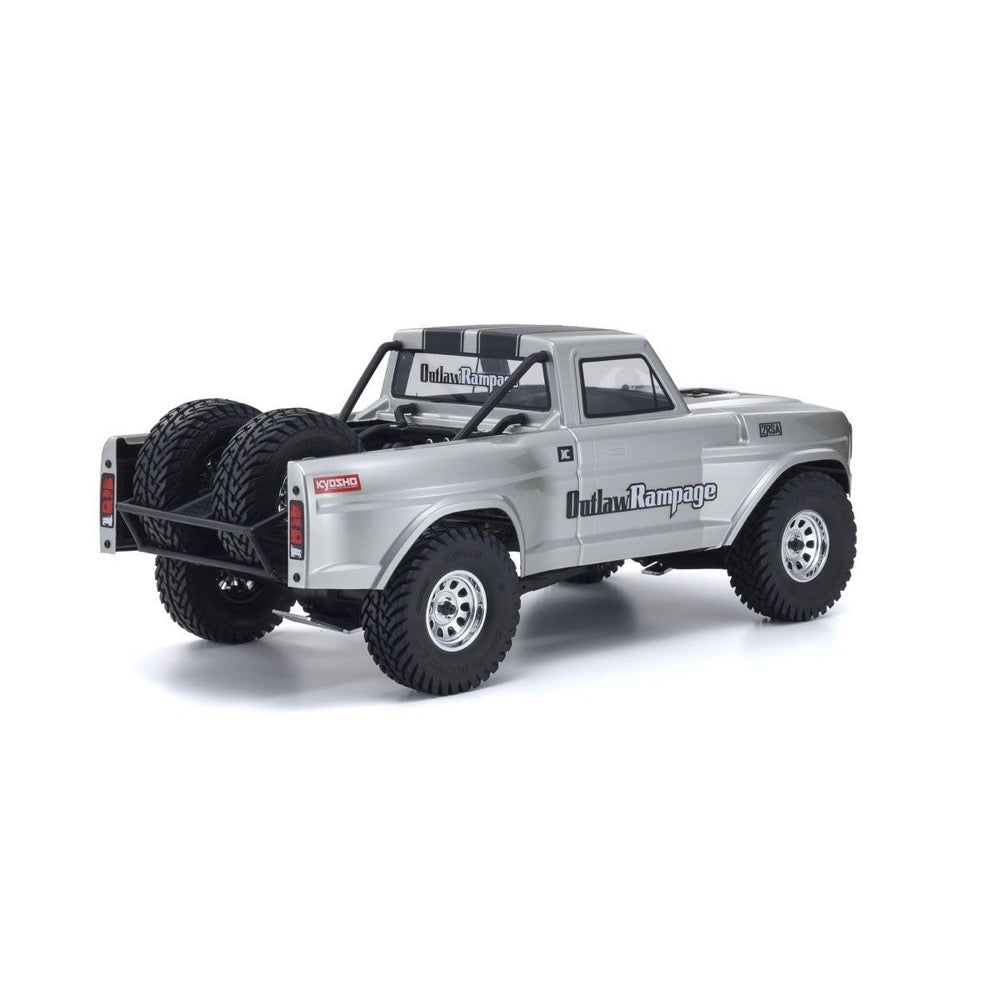

Roll Cage
Real roll cage with two spare tires not only delivers scale appearance but also provides structural and setting functionality. Changing from horizontally mounted tires to 1 vertically mounted and changing the length can alter the weight balance for adjustment of rear traction characteristics. Mounting 1 or 2 tires as well as changing the longitudinal length significantly influences rear grip. These parts play a functional role in enhancing driving stability.
Oil Shocks
Aluminum oil shocks feature scratch-resistant hard anodized cases that work in combination with titanium coated shafts for smooth shock movement. Large capacity aeration-type shock absorbers with long stroke promise superior performance over the roughest terrain.
Steering System
Wiper style steering system delivers improved durability and reliability for off-road performance. Turnbuckle tierods with front toe angle adjustment are included as standard. 6 ball bearings (4 in wiper post, 2 in steering plate) realize ultra smooth movement.
Stabilizer Bars
Stabilizer bars equipped on front and rear control chassis roll through cornering to improve driving stability. Three wire gauges are available for setting according to specific conditions: 1.8/2.2/2.6mm for front, 2.2/2.6/3.0mm for rear.

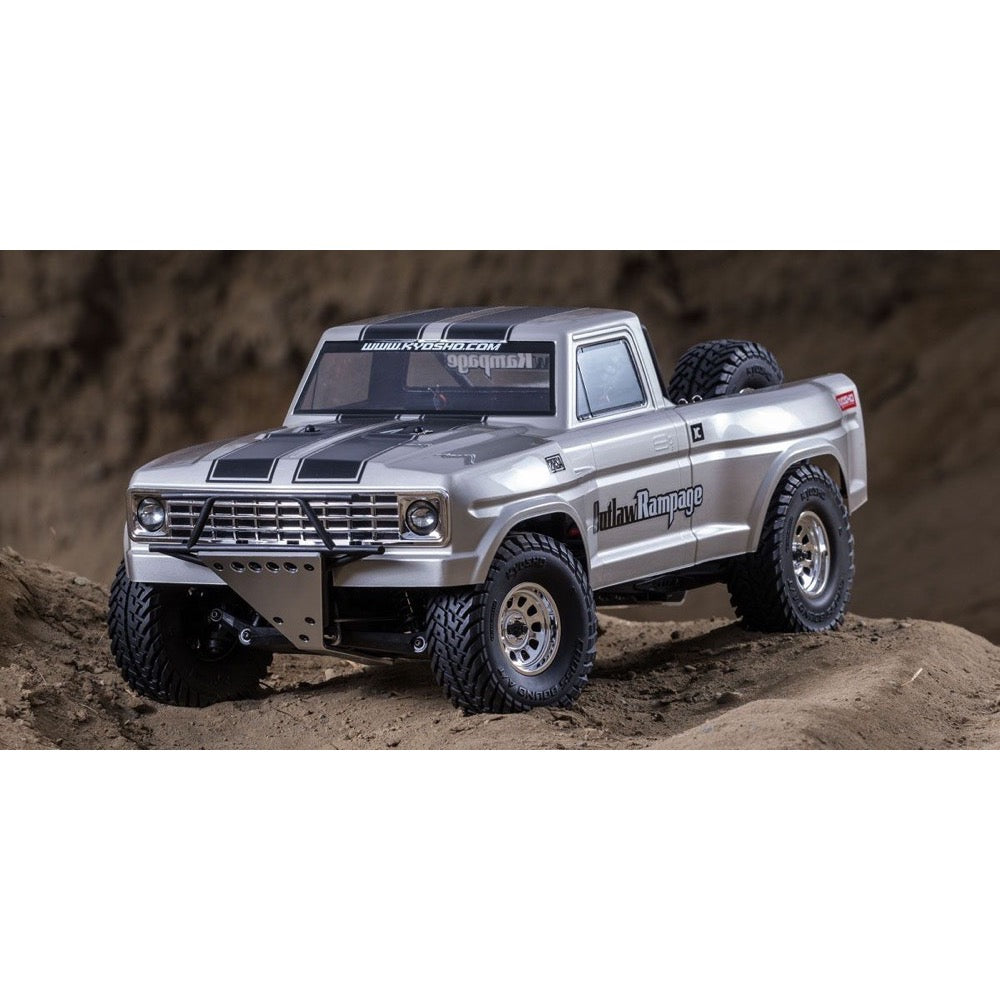

Front Skid Pad

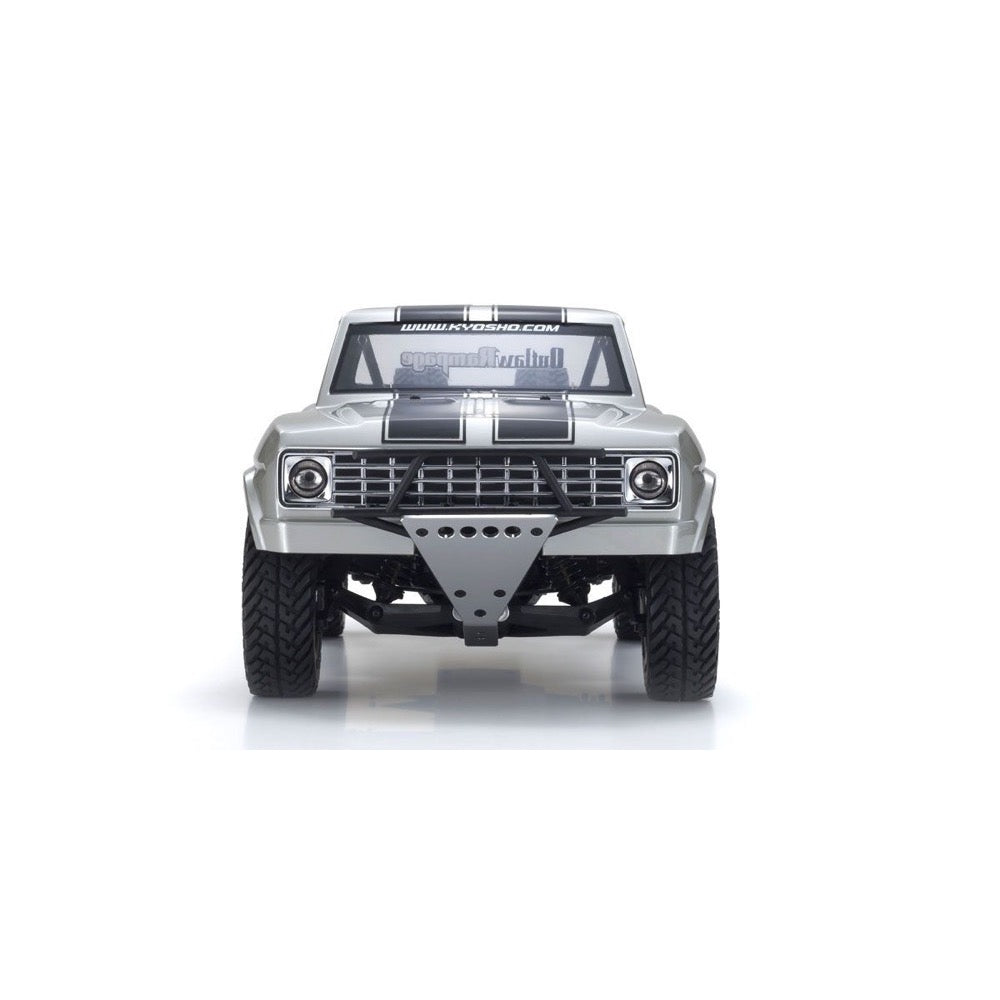

Aluminum front skid pad protects the front bumper and chassis and completes the powerful look and feel of a real trophy truck.
Rear Skid Pad
Aluminum rear skid pad not only protects the motor and gearbox over rough roads and jump landings, it adds weight to the underside of the chassis to lower the center gravity to improve running performance.
Tires
Original tread pattern tires match the body style to replicate real truck style while delivering dominant driving characteristics. 3-piece structure of the silver-plated wheels remove need to glue tires while recreating that real truck look. Can be disassembled to wash rubber tires.
Features
- ARR Kit is nearly fully pre-assembled and includes performance-enhancing optional parts as standard.
- Full ball bearing specifications (20 bearings) ensure smooth movement with minimal drive loss.
- 3-piece front bumper protects the chassis from hard crash damage.
- Front double-wishbone suspension with longer sus arms realizes excellent driving stability and traction.
- Rear suspension is linked to the rigid axle differential to deliver smooth movement and superior traction control.
- Lever lock holder allows easy removal of battery.
- Gearbox features 32-pitch module counter gear and diff gear. Reinforcement of both gears and large modules realizes increased strength (spur gear is 48-pitch).
- Connector holder allows connector to the radio plate to be removed with one hand.
- Hex screws are used throughout for easy maintenance.

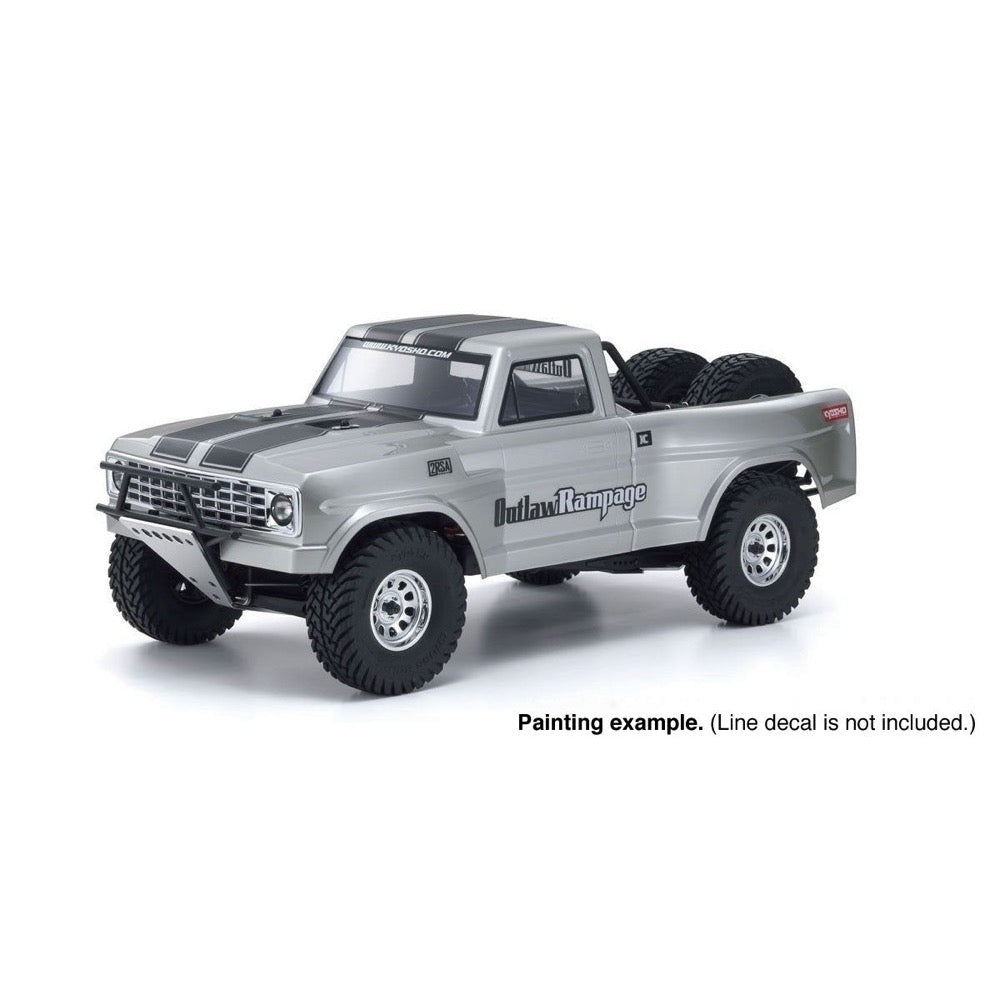

- Pre-cut clear scale body recreates 1970-80’s trophy truck style.
- Choose either square or round headlights with the two front grill styles included.
- Compatible with LED light unit (No. 97054-2: two lights, 97054-4: four lights) for easy installation.
Contents
- (1) 1/10 Outlaw Rampage PRO 2WD Kit
- (1) Pre-Cut Clear Body
- (1) Decal Sheet
- (1) Hex Wrench
- (1) Cross Wrench
- (1) Bottle of Shock Oil
- (1) Instruction Manual
Requires
- (1) 2+Channel Radio System
- (1) Standard-Size Steering Servo
- (1) 540-Size Motor
- (1) Electronic Speed Control
- (1) 7.2V - 7.4V Battery
- (1) Battery Charger
