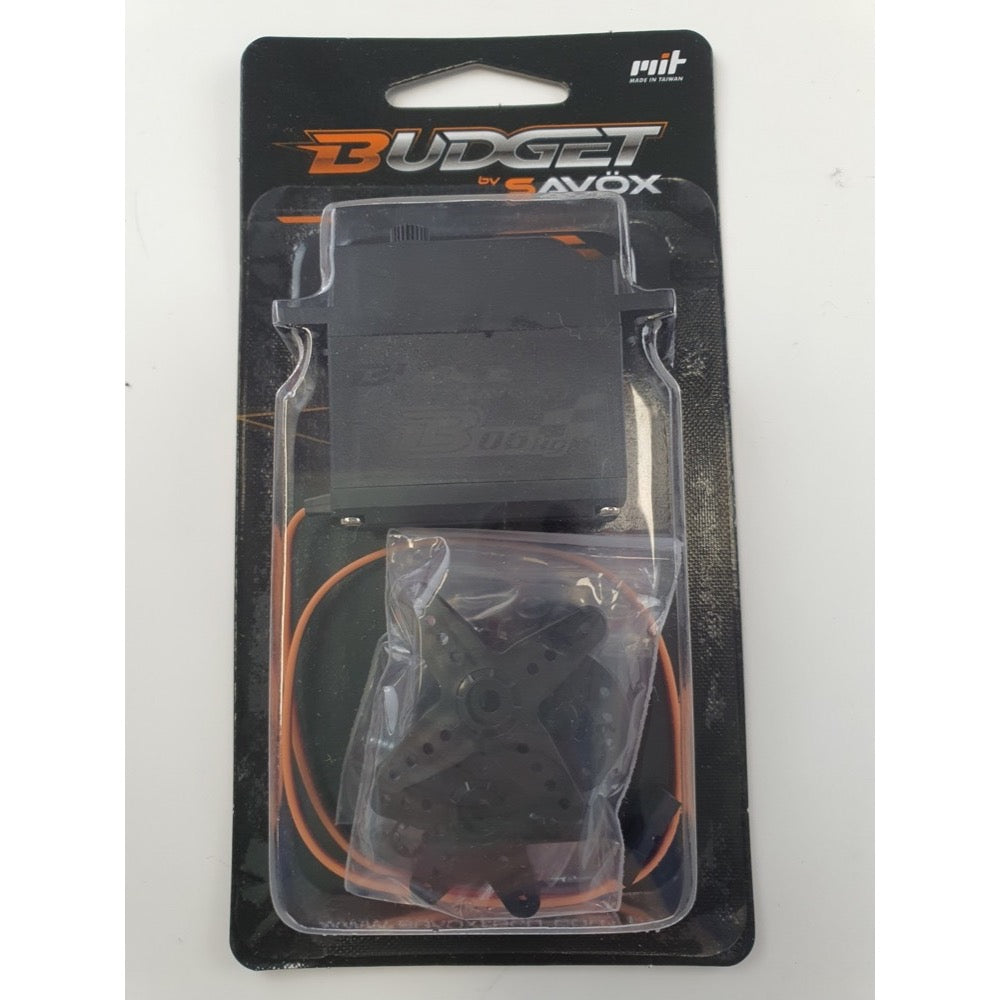

Savox Budget 6KG Metal Gear Servo

"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!

Specifications:

• Torque @ 4.8v - 4.2kg-cm / 58.3oz-in
• Torque @ 6v - 6.5kg-cm / 90.3oz-in
• Speed @ 4.8v - 0.14 sec / 60 deg
• Speed @ 6v - 0.11 sec / 60 deg

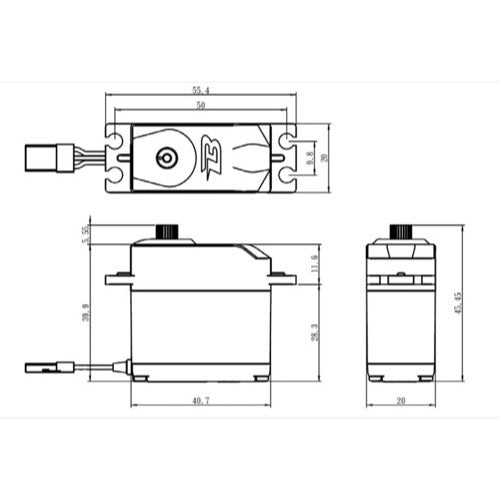

• Dimensions L x W x H (mm): 40.7 x 20 x 45.2
• Weight: 42.0g

Technical Details

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2100 µ second
• Maximum Travel: Appx 164° (700 → 2100 µ second)
• Refresh Rate: 333Hz
• Motor Type: Brushed
