SPEKTRUM (1004)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 30 amp ESC Perfect electric conversion upgrade for .10 size glow combustion power systems Important Specs Recommended Voltage Range – 7.4-11.1V / 2-3S LiPo Recommended Propeller Range – 10x4.5 to 10x7 Electric Prop Recommended Model Flying weight – 3D 905g (2 lbs) - Sport 1360g (3 lbs) Max Wattage – 220w Max Current – Max Burst Amps (35A) Max Continuous Amps (30A) Specs Adjustable Timing: No Connector Type: 3.5mm Bullet Constant Wattage: 0-250W Input Voltage: 7.4 - 11.1V (2 - 3S LiPo) Integrated ESC: No Kv Rating: 1250-1499Kv Maximum Burst Current: 35A Maximum Continuous Current: 30A Motor Class: Parkflyers Motor Design: Outrunner Motor Output Lead: 3.5 Motor Type: Brushless Number of Poles: 14 Outer Diameter: 1.38" (35 mm) Product Length: 1.18" (30 mm) Product Weight: 2.5oz (71g) Recommended Prop Range: 10x4.5 - 10x7 electric RPM/Volt (Kv): 1250 Sensor Type: Sensorless Shaft Diameter: 0.16" (4 mm) Shaft Length: 0.65" (17 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 45 amp ESC Perfect electric conversion upgrade for .15 size glow combustion power systems Important Specs Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo Recommended Propeller Range – 10x7 to 11x7 Electric Prop Recommended Model Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs) Max Wattage – 310w Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)

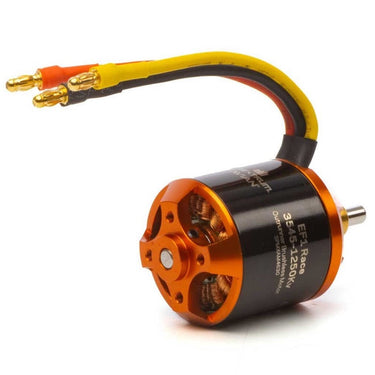

Avian EF1 Race 3545-1250kV Outrunner BL Motor

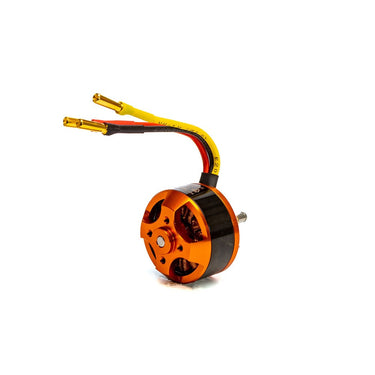

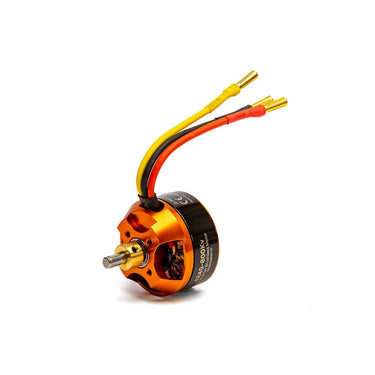

Avian 4240-800kV Outrunner Brushless Motor Specification Part Number: SPMXAM4670

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing ModelsThe combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 45 amp ESC Perfect electric conversion upgrade for .25 size glow combustion power systems Important Specs Recommended Voltage Range – 11.1-14.8V / 3-4S LiPo Recommended Propeller Range – 11x8.5 to 12x6 Electric Prop Recommended Model Flying weight – 3D 1360g (3 lbs) - Sport 2040g (4.5 lbs) Max Wattage – 375w Max Current – Max Burst Amps (50A) Max Continuous Amps (45A) Specs Adjustable Timing: No Application: Airplane Connector Type: 4mm Bullet Constant Wattage: 250-499W Input Voltage: 11.1-14.5V (3-4S LiPo) Integrated ESC: No Kv Rating: 1000-1249Kv Maximum Burst Current: 50A Maximum Continuous Current: 45A Motor Class: Parkflyers Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Number of Poles: 14 Outer Diameter: 1.7" (43 mm) Product Length: 1.6" (41 mm) Product Weight: 4.4oz (125g) RPM/Volt (Kv): 1000 Sensor Type: Sensorless Shaft Diameter: 0.2" (5 mm) Shaft Length: 0.67" (17 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 45 amp ESC Perfect electric conversion upgrade for .32 size glow combustion power systems Important Specs Recommended Voltage Range – 11.1-14.8V / 3-4S LiPo Recommended Propeller Range – 12x6 to 13x8 Electric Prop Recommended Model Flying weight – 3D 1845g (4 lbs) - Sport 2950g (6.5 lbs) Max Wattage – 600w Max Current – Max Burst Amps (50A) Max Continuous Amps (45A) Specs Adjustable Timing: No Application: Sport airplanes up to 6.5lbs (2950g) and 3D airplanes up to 4lbs (1814g) Connector Type: 4mm Bullet Constant Wattage: 500-749W Input Voltage: 11.1-14.8V (3-4S LiPo) Integrated ESC: No Kv Rating: 750-999Kv Maximum Burst Current: 1480W Maximum Continuous Current: 925W Motor Class: Mid Size Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Outer Diameter: 1.7" (43 mm) Product Length: 2" (51 mm) Product Weight: 7oz (198g) Recommended Prop Range: 12x6 - 13x8 electric RPM/Volt (Kv): 800 Sensor Type: Sensorless Shaft Diameter: 0.2" (5 mm) Shaft Length: 0.67" (17 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 60 amp ESC Perfect electric conversion upgrade for .55 size glow combustion power systems Important Specs Recommended Voltage Range – 18.5-22.2V / 5-6S LiPo Recommended Propeller Range – 13x10 to 15x8 Electric Propeller Recommended Model Flying weight – 3D 2720g (6 lbs) - Sport 4310g (9.5 lbs) Max Wattage – 810w Max Current – Max Burst Amps (105A) Max Continuous Amps (60A) Specs Adjustable Timing: No Application: Sport airplanes up to 9.5lbs (4310g) and 3D airplanes up to 6lbs (2720g) Connector Type: 4mm Bullet Constant Wattage: 750-999W Input Voltage: 18.5-22.2V (5-6S LiPo) Integrated ESC: No Kv Rating: 250-499Kv Maximum Burst Current: 1850W Maximum Continuous Current: 830W Motor Class: Mid Size Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Outer Diameter: 1.7" (43 mm) Product Length: 2.4" (61 mm) Product Weight: 9.5oz (268g) Recommended Prop Range: 13x10E - 15x8E RPM/Volt (Kv): 480 Sensor Type: Sensorless Shaft Diameter: 0.2" (5 mm) Shaft Length: 0.67" (17 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 60 amp ESC Perfect electric conversion upgrade for .46 size glow combustion power systems Important Specs Recommended Voltage Range – 18.5-22.2V / 5-6S LiPo Recommended Propeller Range – 10x5 to 11x5 Electric Propeller Recommended Model Flying weight – 3D 2210g (5 lbs) - Sport 3400g (7.5 lbs) Max Wattage – 810w Max Current – Max Burst Amps (100A) Max Continuous Amps (60A) Specs Adjustable Timing: No Application: Sport airplane up to 7.5lbs (3402g), & 3D airplane up to 5lbs (2268g)) Connector Type: 4mm Bullet Constant Wattage: 750-999W Idle Current (Io): 4.6A no load Input Voltage: 18.5-22.2V Integrated ESC: No Kv Rating: 750-999Kv Maximum Burst Current: 100A Maximum Continuous Current: 60A Motor Class: Mid Size Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Outer Diameter: 1.65" (42 mm) Product Length: 2.36" (60 mm) Product Weight: 9.5oz (268g) Recommended Prop Range: 10 x 5E-11 x 5E Recommended Speed Control: 60A RPM/Volt (Kv): 800 Sensor Type: Sensorless Shaft Diameter: 0.2" (5 mm) Shaft Length: 0.67" (17 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 60 amp ESC Perfect electric conversion upgrade for .80 size glow combustion power systems Important Specs Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo Recommended Propeller Range – 15x6 to 15x8 Electric Propeller Recommended Model Flying weight – 3D 3175g (7 lbs) - 5215g (11.5 lbs) Max Wattage – 900w Max Current – Max Burst Amps (65A) Max Continuous Amps (55A) Specs Adjustable Timing: No Connector Type: 4mm Bullet Constant Wattage: 750-999W Input Voltage: 18.5-22.2V (5-6S LiPo) Integrated ESC: No Kv Rating: 500-749Kv Motor Class: Mid Size Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Outer Diameter: 1.97" (50 mm) Product Length: 2.17" (55 mm) Product Weight: 10.5oz (298g) RPM/Volt (Kv): 500 Sensor Type: Sensorless Shaft Diameter: 0.32" (8 mm) Shaft Length: 0.79" (20 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 60 amp ESC Perfect electric conversion upgrade for 60 size glow combustion power systems Important Specs Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo Recommended Propeller Range – 12x6 to 13x4 Electric Propeller Recommended Model Flying weight – 3D 2950g (6.5 lbs) - Sport 4705g (10.5 lbs) Max Wattage – 900w Max Current – Max Burst Amps (85A) Max Continuous Amps (60A) Specs Adjustable Timing: No Connector Type: 4mm Bullet Constant Wattage: 750-999W Input Voltage: 18.5-22.2V (5-6S LiPo) Integrated ESC: No Kv Rating: 500-749Kv Maximum Burst Current: 2200 Watts Maximum Continuous Current: 65A Motor Class: Large Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Product Length: 2.17" (55 mm) Product Weight: 10.5 Recommended Prop Range: 12x6 - 13x4E RPM/Volt (Kv): 650 Sensor Type: Sensorless Shaft Diameter: 0.32" (8 mm) Shaft Length: 0.79" (20 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 100 amp ESC Perfect electric conversion upgrade for 20cc size gas combustion power systems Important Specs Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo Recommended Propeller Range – 16x6 to 17x8 Electric Propeller Recommended Model Flying weight – 3D 4080 g (9 lbs) - Sport 6520 g (14.5 lbs) Max Wattage – 1200w Max Current – Max Burst Amps (85A) Max Continuous Amps (80A) Specs Adjustable Timing: No Connector Type: 4mm Bullet Idle Current (Io): 2.3A Input Voltage: 18.5 - 22.1V Maximum Burst Current: 80A Maximum Continuous Current: 50A Motor Design: Outrunner Motor Type: Brushless Outer Diameter: 2" (51 mm) Product Length: 2.6" (66 mm) Product Weight: 14.1oz (400g) Recommended Speed Control: 80A RPM/Volt (Kv): 450 Shaft Diameter: 0.32" (8 mm) Shaft Length: 0.79" (20 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 120 amp HV ESC Perfect electric conversion upgrade for 30cc size gas size combustion power systems Important Specs Recommended Voltage Range – 33.3 - 44.4V / 9-12S LiPo Recommended Propeller Range – 16x8 to 18x8 Electric Propeller Recommended Model Flying weight – 3D 5445g (12 lbs) - Sport 9070g (20 lbs) Max Wattage – 1900w Max Current – Max Burst Amps (100A) Max Continuous Amps (60A) Specs Adjustable Timing: No Connector Type: 4mm Bullet Constant Wattage: 1500-1999W Input Voltage: 33.3 - 44.4V Integrated ESC: No Kv Rating: 250-499Kv Maximum Burst Current: 72A Maximum Continuous Current: 45A Motor Class: Large Motor Design: Outrunner Motor Output Lead: 4 Motor Type: Brushless Outer Diameter: 2" (51 mm) Product Length: 2.6" (66 mm) Product Weight: 22.2oz (634g) Recommended Speed Control: 80A RPM/Volt (Kv): 250 Sensor Type: Sensorless Shaft Diameter: 0.32" (8 mm) Shaft Length: 0.79" (20 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Excellent power and efficiency on 12S power when matched with a 18x10 size propeller Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold-plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 120 amp HV ESC Perfect electric conversion upgrade for 30cc size gas combustion power systems running 12S LiPo power Important Specs Recommended Voltage Range – 33.3 - 44.4V / 9-12S LiPo Recommended Propeller Range – 16x8 to 19x10 Electric Propeller Recommended Model Flying weight – 3D 5445g (12 lbs) - Sport 9070g (20 lbs) Max Wattage – 1900w Max Current – Max Burst Amps (100A) Max Continuous Amps (60A)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 120 amp HV ESC Perfect electric conversion upgrade for 50cc size gas combustion power systems Important Specs Recommended Voltage Range – 33.3-55.5V / 9-15S LiPo Recommended Propeller Range – 22x8 to 26x10 Propeller Recommended Model Flying weight – 3D 8.17kg (18 lbs) - Sport 12.7kg (28 lbs) Max Wattage – 3750w Max Current – Max Burst Amps (125A) Max Continuous Amps (110A) Specs Adjustable Timing: No Application: 3D Airplanes up to 18.0lb (8.17kg), Sport Planes up to 28.0lb (12.7kg) Connector Type: 4mm Bullet Constant Wattage: 3000W or more Input Voltage: 33.3 - 55.5V Integrated ESC: No Kv Rating: 0-250Kv Maximum Burst Current: 135A Maximum Continuous Current: 110A Motor Class: Giant Scale Motor Design: Outrunner Motor Output Lead: 6 Motor Type: Brushless Number of Poles: 14 Outer Diameter: 3.14" (80 mm) Product Length: 2.9" (74 mm) Product Weight: 44.1oz (1250g) Recommended Speed Control: 80 - 100A RPM/Volt (Kv): 230 Sensor Type: Sensorless Shaft Diameter: 0.39" (10 mm) Shaft Length: 0.79" (20 mm)

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models! Key Benefits Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight. Features Lightweight design Powerful and durable Rare-Earth Neodymium magnets 14-pole stator for smooth and precise propulsion Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors Perfect match for the Spektrum Smart Avian 120 amp HV ESC Perfect electric conversion upgrade for 65cc size gas combustion power systems Important Specs Recommended Voltage Range – 33.3-55.5V / 9-15S LiPo Recommended Propeller Range – 22x10 to 26x12 Propeller Recommended Model Flying weight – 3D 11.79kg (26 lbs) - Sport 19.1kg (42 lbs) Max Wattage – 4400w Max Current – Max Burst Amps (150A) Max Continuous Amps (135A) Specs Adjustable Timing: No Connector Type: 6mm Bullet Constant Wattage: 3000W or more Input Voltage: 33.3 - 55.5V Integrated ESC: No Kv Rating: 0-250Kv Maximum Burst Current: 150A Maximum Continuous Current: 135A at 12S Motor Class: Giant Scale Motor Design: Outrunner Motor Output Lead: 6 Motor Type: Brushless Number of Poles: 14 Outer Diameter: 3.14" (80 mm) Product Length: 3.35" (85 mm) Product Weight: 52.5oz (1480g) Recommended Speed Control: 160A RPM/Volt (Kv): 160 Sensor Type: Sensorless Shaft Diameter: 0.39" (10 mm) Shaft Length: 0.79" (20 mm)

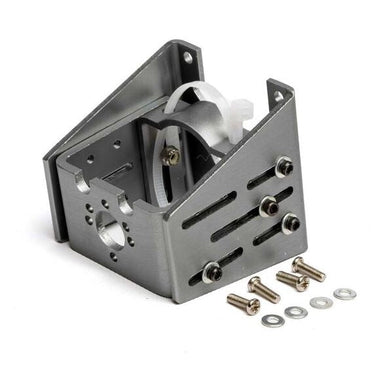

Brushless Motor Mount, Medium

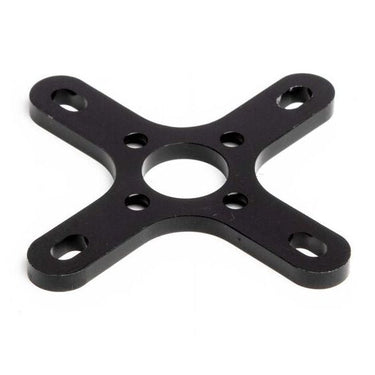

Avian Backplate Motor Mount, 35-42mm

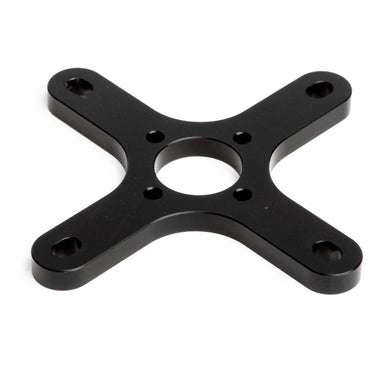

Avian Backplate Motor Mount 50-63mm

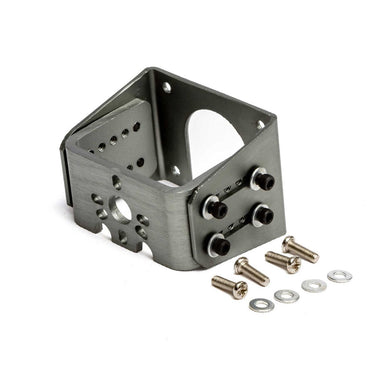

Brushless Motor Mount Small Motors

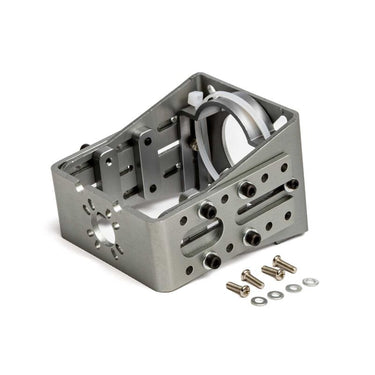

Brushless Motor Mount, Large

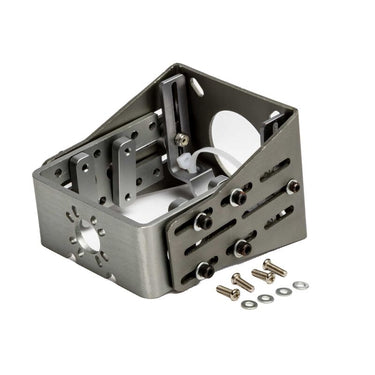

Brushless Motor Mount, X-Large

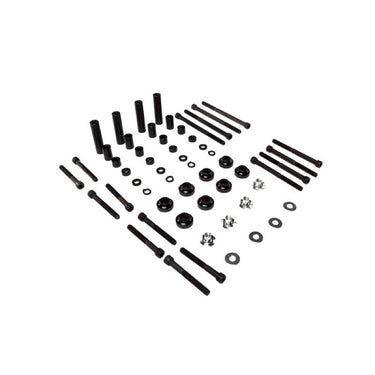

Includes Four 50mm (2") Aluminum Spacers Four 20mm (25/32")Aluminum Spacers Four 10mm (13/32") Aluminum Spacers Four 5mm (3/16") Aluminum Spacers Four 2.5mm (3/32") Aluminum Spacers Eight 10mm (13/32") Mount Bases Four 127mm (1/4-20x5") Socket Head Cap Screws Four 102mm (1/4-20x4") Socket Head Cap Screws Four 95mm (1/4-20x3") Socket Head Cap Screws Four 51mm (1/4-20x2") Socket Head Cap Screws Four 1/4-20 Blind Nuts Four 6.4mm (1/4") Flat Washers Four 6.4mm (1/4") Split Lock Washers

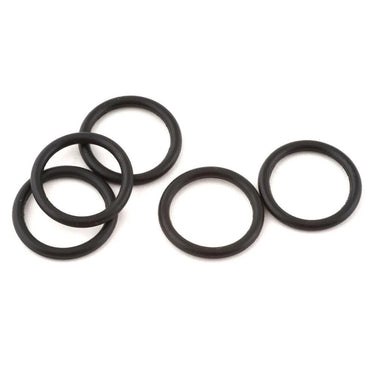

Spektrum RC Prop Saver O-Rings. These replacement O-rings are intended for the Park 250 or Park 300 brushless motor. Package includes five O-rings.

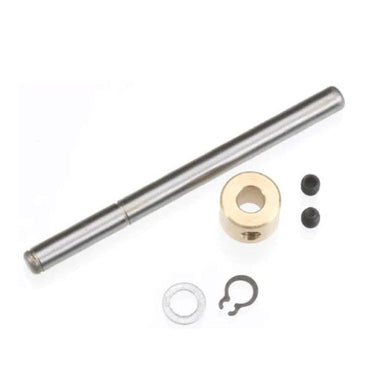

This is the Replacement Shaft Kit: Avian 3536 by Spektrum.
