SPEKTRUM (1053)

This replacement flight controller is intended for the Blade Fusion 180. Package includes one flight controller and one bind plug.

This replacement flight control unit is intended for the Blade 150 S Smart Helicopter. Package includes one flight control unit.

Replacement Flight Control: Infusion 180

DSMX 6-Channel Receiver with AS3X/SAFE, Dual BL ESC Specification Channels: 6 Programmable: Yes

Spektrum Synapse AS3X+ & SAFE Stabilization Module OverviewThe Spektrum™ AS6000 Flight Stabilization Module is more than just a gyro for the giant-scale pilot. First and foremost, the Synapse is compatible with the AR10410T, AR14410T and AR20410T PowerSafe Telemetry Receivers. It is tiny, with a footprint the size of a quarter that also features advanced telemetry sensing that lets you integrate real-time Variometer, G-Force, Altitude, and Gyro-Rate data to your flight status parameters. The Synapse is simple to add to your model, allowing for a clean and efficient install that eliminates an additional point of failure that an inline gyro can introduce. Installation is easy. NEXT GENERATION IN FLIGHT STABILIZATION The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning. Key AS3X+ improvements include: Stop Lock and Release Rate parameters Heading Hold improvements Improved gryo filtering Canard and Thrust Vectoring Support DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse and AS3X+ algorithm with turbine and giant scale aircraft in mind. We've vastly improved the flying characteristics, designed the system to operate flawlessly in noisy turbine environments and given you 20 stabilized outputs. Now, you can genuinely set your new model's gyro up in less than 5 minutes without a PC, cables or stick position commands. It's so easy, anyone can do it! NOW WITH SAFE You now have access to our SAFE technology at the flip of a switch which can potentially turn any disastrous situation into a complete recovery. Have the confidence and seconds you need to regroup after an orientation loss or distraction at the field. SAFE can even be selected for the failsafe position with predefined bank and pitch angles. SAFE has saved thousands of aircraft and can potentially save yours. ALUMINUM CASE The Synapse case is machined aluminum with three grommeted hard mounts for easy installation in most aircraft. ACOUSTIC ISOLATION Synapse's gyro sensor is encased in a sound and vibration reduction insulation designed for turbine applications. While other systems require third party sound damping, we've designed Synapse to work flawlessly in most turbine applications. LOCKING SENSOR CABLE Synapse's sensor cable is now designed with a locking connector on the RX side and the sensor side is internally mounted inside Synapse. This ensures that your synapse remains connected to your receiver regardless of in-flight vibrations. Spektrum Synapse AS3X+ & SAFE Stabilization Module Features The all-new AS3X+ stabilization algorithm provides the ultimate in-flight performance and feel Thrust vector and canard support with Spektrum's new multi-gyro system (up to four independent gyro systems in one device) Intuitive forward programming makes Synapse the easiest system to set up without the need for any external device New parameters and new menus with forward programming Gyro sensor is encased in sound and vibration reduction insulation designed for turbine applications Machined aluminum and anodized case housing with three grommeted hard mounts Internally mounted locking cable design prevents any possible in-flight disconnection Specifications Product Height: 0.363" (9 mm) Product Length: 1.016" (26 mm) Product Weight: 0.1 oz (2.83g) Product Width: 1.016" (26 mm) Technology: AS3X+

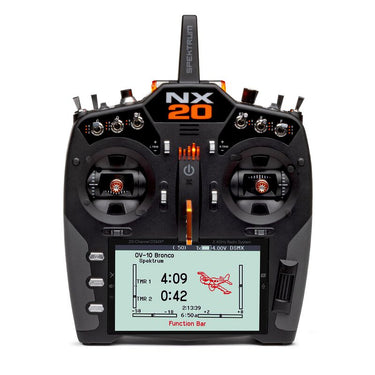

Long Lasting and High capacity 10,500mAh 1S Lithium-Ion Transmitter Battery - This is the replacement battery for the Spektrum iX20, iX20SE and NX20 Air Transmitters. Specs Application: Spektrum NX20, iX20 Transmitters Input Voltage: 3.7V Number of Cells: 1

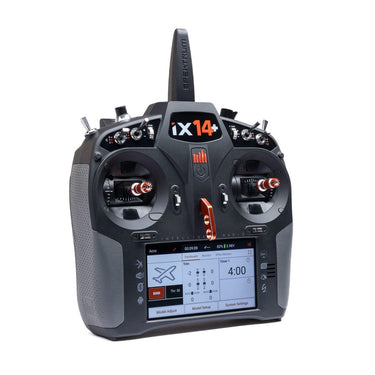

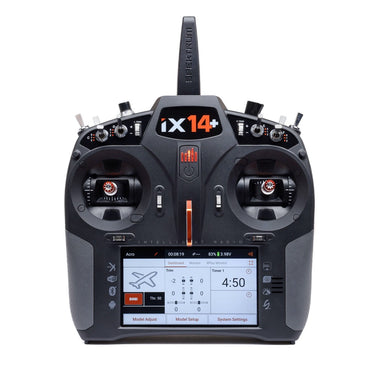

This is the stock replacement 10500mAh LiIon battery for the Spektrum iX14+ Transmitter.

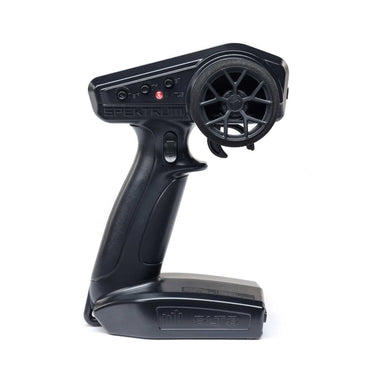

This Spektrum 3.7V 1S 10500mAh Li-Ion Transmitter Battery is compatible with the Spektrum iXSR 6-Channel DSMR Surface Transmitter (SPM6420).

This is the stock replacement battery for the Spektrum iXSR+ Surface Transmitter. Specifications Type: LiIon (3.3V per cell) Battery Voltage: 3.7V Capacity: 10,500mAh Number of Cells: 1

7.4V 1300mAh 2S 5C Li-Po Receiver Battery; JST-RCY Specification Battery Balance Connector: JST-XH Battery Type: LiPo (3.7V per cell) Battery Voltage: 7.4V Capacity: 1300mAh Cell Configuration: 2S1P Connector Type: JST Maximum Continuous Discharge Current: 6.5 Amps Maximum Continuous Discharge Rate: 5C Normal/Standard Charge Current: 1.3 Amps Normal/Standard Charge Rate: 1C Number of Cells: 2 Product Height: 0.63" (16 mm) Product Length: 2.52" (64 mm) Product Weight: 1.94 oz (55 g) Product Width: 1.1" (28 mm)

6.6V 1450mAh 2S LiFe Receiver Battery: Universal Receiver Specification Application: Aircraft Receiver, Aircraft Ignition Balance Lead Length: 50mm Battery Balance Connector: JST_XH Battery Type: LiFe (3.3V per cell) Battery Voltage: 6.6V Capacity: 1450mAh Cell Configuration: 2S1P Charge Protection Circuitry: No Connector Type: JR Discharge Lead Length: 150mm Hard Case: No Maximum Charge Current: 1450mA Maximum Charge Rate: 1C Maximum Continuous Discharge Current: 29A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 290mA Normal/Standard Charge Rate: 0.2C Product Height: 18mm Product Length: 86mm Product Weight: 84 g (2.9 oz) Product Width: 32mm Watt Hours: 9.57Wh Wire Gauge: 20 AWG

7.4V 2000mAh 2S LiPo Receiver Battery: Universal Receiver, EC3 Specification Application: Receiver Balance Lead Length: 7.5cm Battery Balance Connector: JST_XH Battery Voltage: 7.4V Capacity: 2000mAh Charge Protection Circuitry: No Connector Type: EC3 Discharge Lead Length: 22cm Hard Case: No Maximum Charge Current: 6A Maximum Charge Rate: 3C Maximum Continuous Discharge Current: 2.0A Maximum Continuous Discharge Rate: 15C Normal/Standard Charge Current: 2A Normal/Standard Charge Rate: 1C Number of Cells: 2 Product Height: 0.59 in (15mm) Product Length: 2.62 in (66.75mm) Product Weight: 3.8 oz (108 g) Product Width: 1.84 in (46.75mm) Watt Hours: 14.8Wh Wire Gauge: 16 AWG

6.6V 2200mAh 2S LiFe Receiver Battery: Universal Receiver, EC3 Specification Application: Aircraft Receiver, Aircraft Ignition Balance Lead Length: 50mm Battery Balance Connector: JST_XH Battery Type: LiFe (3.3V per cell) Battery Voltage: 6.6V Capacity: 2200mAh Cell Configuration: 2S1P Charge Protection Circuitry: No Connector Type: EC3 Discharge Lead Length: 150mm Hard Case: No Maximum Charge Current: 2.20A Maximum Charge Rate: 1C Maximum Continuous Discharge Current: 44A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 440mA Normal/Standard Charge Rate: 0.2C Product Height: 21mm Product Length: 70mm Product Weight: 132g (4.6 oz) Product Width: 49mm Watt Hours: 14.52Wh Wire Gauge: 16 AWG

Spektrum's 3000mAh 3S ECU battery is a high-quality 9.9V Li-Fe battery designed specifically for turbine Electronic Control Unit (ECU) use. Today's turbine engines require reliable ECU power to ensure optimum performance from startup to shutdown. Features 9.9V nominal voltage is specific to modern turbine engine ECU requirements without risking over-voltage, or the inconvenience of a failed start from a low 2S Li-Po pack High discharge capability (continuous 60A) makes the pack suitable for the high current draw of the turbine start sequence Long lifespan Li-Fe battery chemistry provides excellent working lifespan Convenient size is easy to place in a model and will provide up to 6 starts of todays modern turbine engines Specification Application: Turbine Engine Electronic Control Unit (ECU) Battery Balance Connector: JST_XH Battery Voltage: 9.9V Capacity: 3000mAh Connector Type: EC3 Discharge Lead Length: 5.91 in (150mm) Hard Case: No Maximum Charge Current: 3A Maximum Charge Rate: 1C Maximum Continuous Discharge Current: 60A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 3A Normal/Standard Charge Rate: 1C Product Height: 1.73 in (44mm) Product Length: 2.91 in (74mm) Product Weight: 9.6 oz (270g) Product Width: 1.81 in (46mm) Watt Hours: 29.7Wh

6.6V 3000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3 Specification Application: Aircraft Receiver, Aircraft Ignition Balance Lead Length: 50mm Battery Balance Connector: JST_XH Battery Type: LiFe (3.3V per cell) Battery Voltage: 6.6V Capacity: 3000mAh Charge Protection Circuitry: No Connector Type: EC3 Discharge Lead Length: 150mm Hard Case: No Maximum Charge Current: 3.0A Maximum Charge Rate: 1C Maximum Continuous Discharge Current: 60A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 600mA Normal/Standard Charge Rate: 0.2C Product Height: 21mm Product Length: 70mm Product Weight: 4.6 oz (132g) Product Width: 50mm Watt Hours: 19.8Wh Wire Gauge: 16 AWG

6.6V 300mAh 2S LiFe Receiver Battery: Universal Receiver Specification Balance Lead Length: 1.97 in (50mm) Battery Balance Connector: JST_XH Battery Type: LiFe (3.3V per cell) Battery Voltage: 6.6V Capacity: 300mAh Discharge Lead Length: 5.91 in (150mm) Maximum Charge Current: 300mA Maximum Continuous Discharge Current: 6A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 60mA Normal/Standard Charge Rate: 1C Product Height: 0.55 in (14mm) Product Length: 1.97 in (50mm) Product Weight: 0.8 oz (24 g) Product Width: 0.79 in (20mm) Watt Hours: 1.98 Wh Wire Gauge: 20 AWG

6.6V 4000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3 Specification Application: Receiver Pack Balance Lead Length: 1.97 in (50mm) Battery Balance Connector: JST_XH Battery Type: LiFe (3.3V per cell) Battery Voltage: 6.6V Capacity: 4000mAh Connector Type: EC3 Discharge Lead Length: 5.91 in (150mm) Maximum Charge Current: 4.0A Maximum Continuous Discharge Rate: 20C Normal/Standard Charge Current: 800mA Normal/Standard Charge Rate: 1C Product Height: 1.54 in (39mm) Product Length: 2.87 in (73mm) Product Weight: 235 g (8.2 oz) Product Width: 1.89 in (48mm) Watt Hours: 26.4 Wire Gauge: 16 AWG

4000mah LiIon Battery: DX6R Specification Battery Type: LiIon (3.3V per cell) Battery Voltage: 3.6V Capacity: 4000mAh Cell Configuration: 1S2P Connector Type: White 2-Pin Number of Cells: 2 Product Height: 0.75" (19 mm) Product Length: 2.64" (67 mm) Product Weight: 3.35 oz (95 g) Product Width: 1.5" (38 mm) Transmitter (Tx) Battery Type: LiIon
