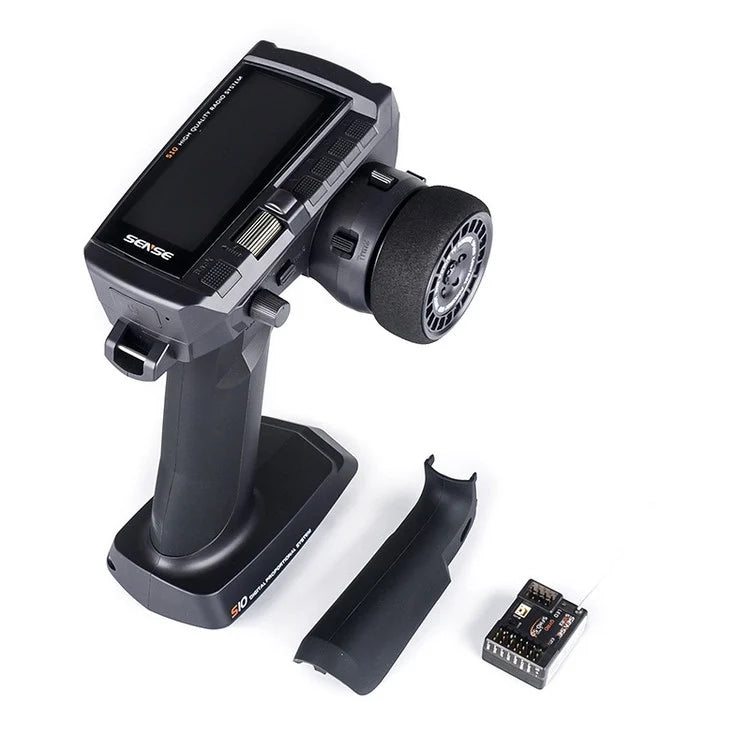

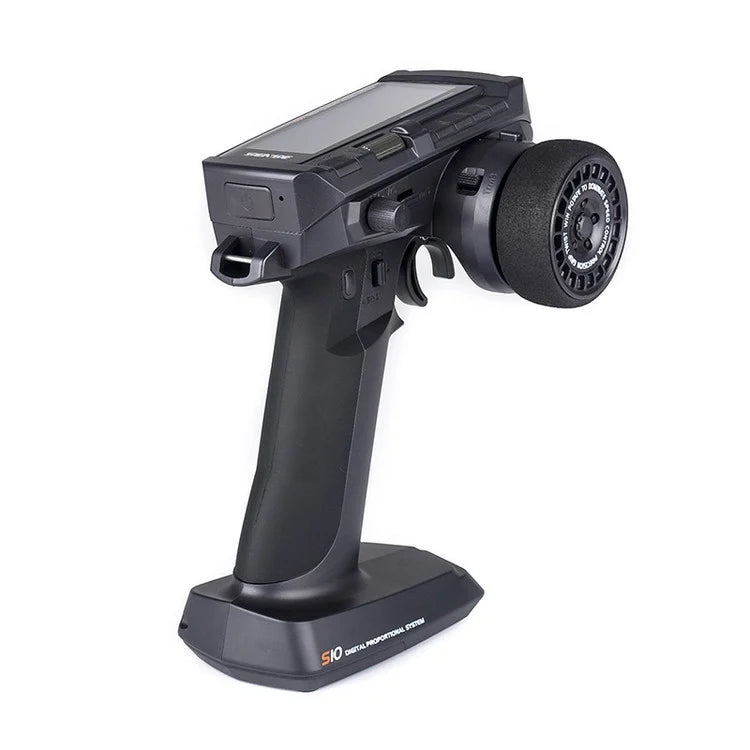

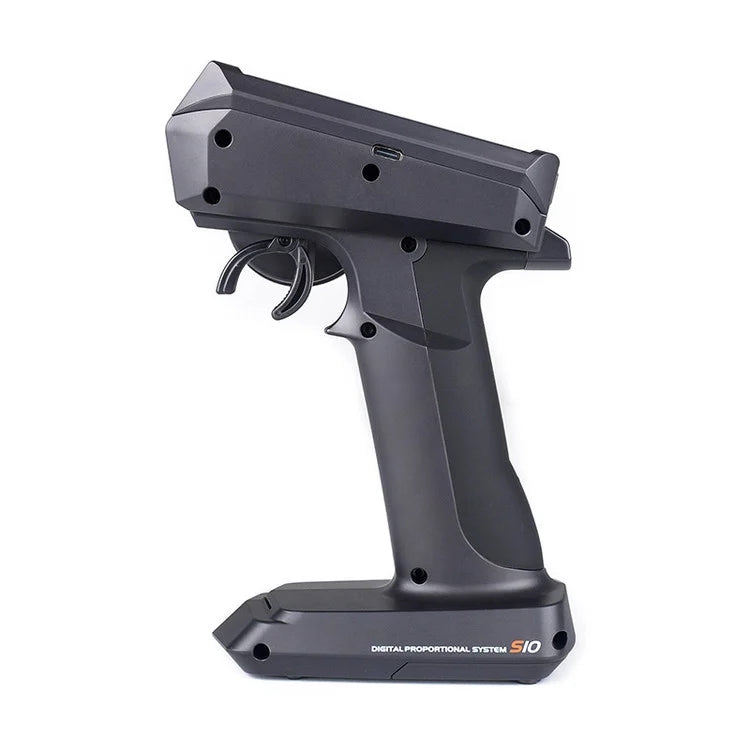

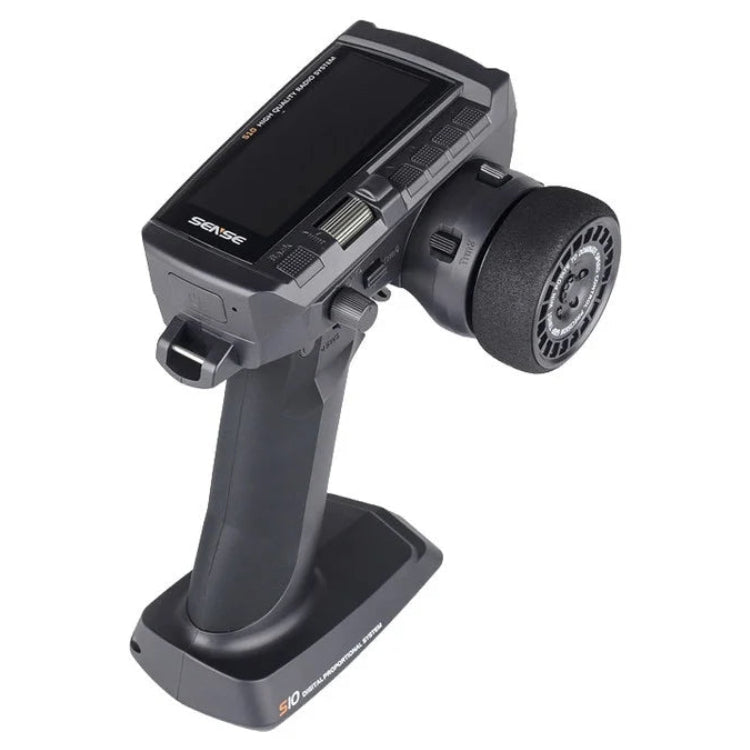

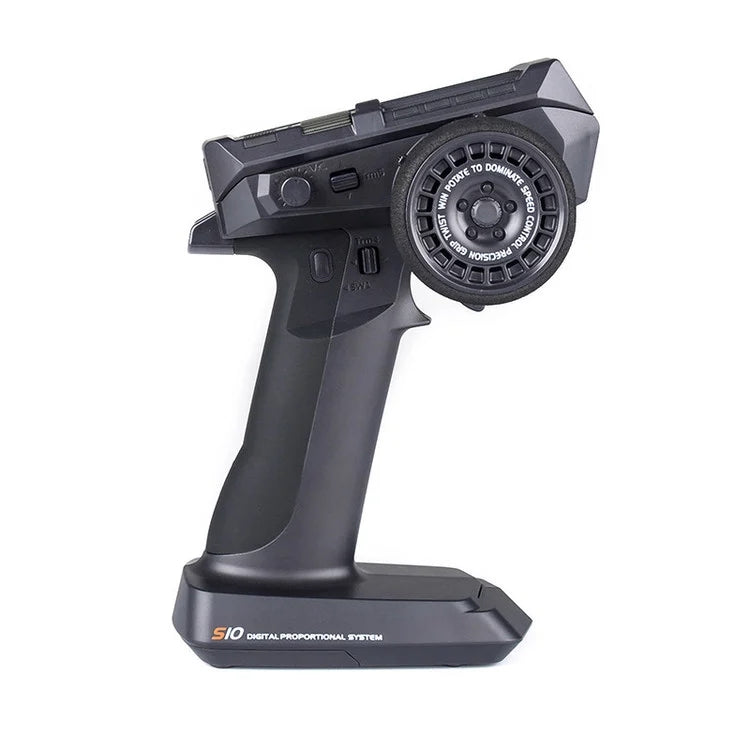

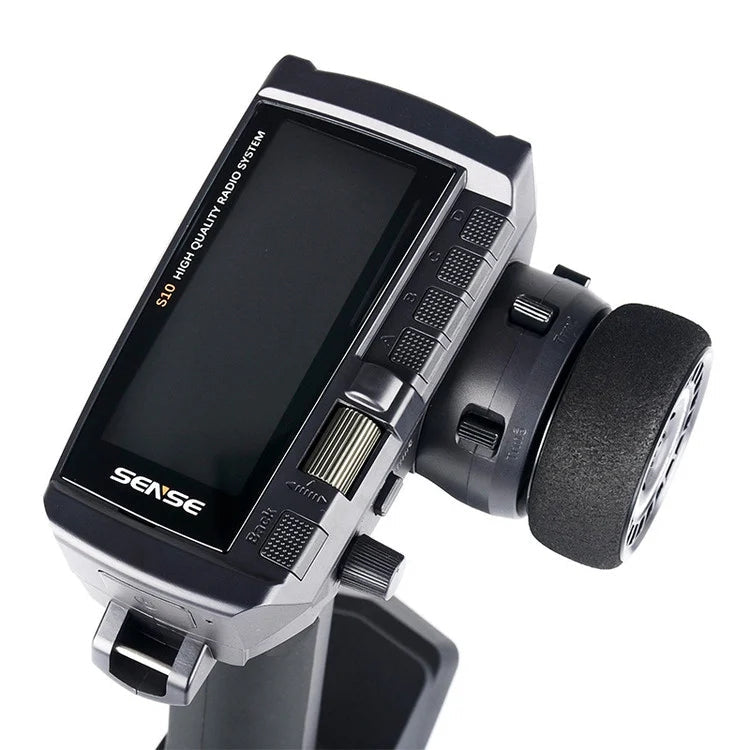

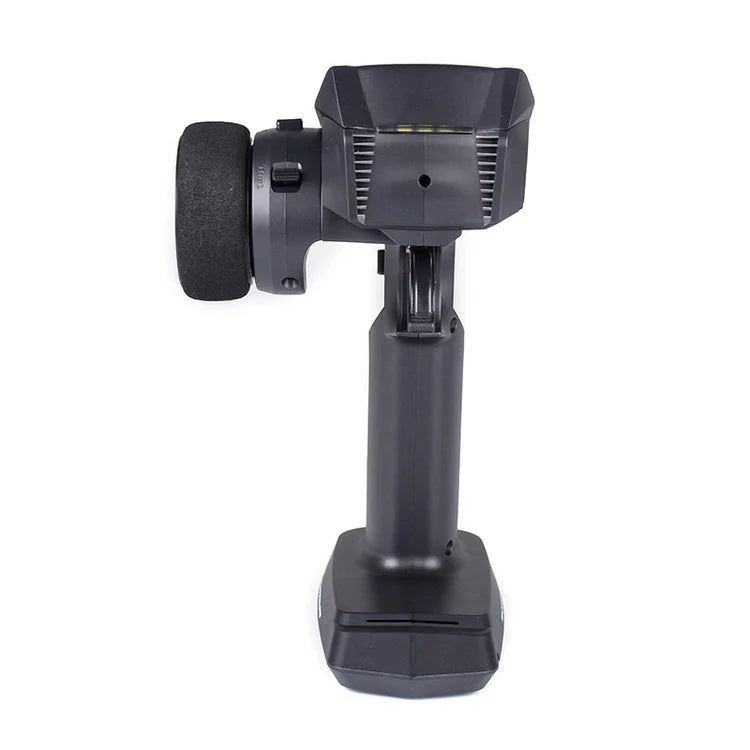

The Sense S10 transmitter and S10RX receiver features the 2.4GHz automatic frequency-hopping system with support for up to 10 channels, including four ultra-fast response channels for precise control. Equipped with a high-resolution display and user-friendly interface, the S10 offers simple setup, real-time monitoring, and built-in presets for Crawlers, Nitro Cars, Electric Cars, and Boats.
Features
- Uni/ bidirectional transmission
- Built-in data passthrough
- Independent identification system
- User-freindly interface design
- Wi-Fi firmware updates
- Dual battery power and backup
- 376x960 IPS LCD screen with wide viewing angles
- Accent LED lights with 5 user adjustable colours
- 40 model memory
- Audio/ vibe alerts
- Customisable model setup
- USB-C compatible
- Powerful programming capabilities with 12 switch/ trim/ knob options available
Uni/Bidirectional Transmission
The system supports flexible unidirectional and bi-directional data transmission modes. In unidirectional mode, the receiver only receives control commands from the transmitter. In bidirectional mode, a full-duplex data link is established, enabling the receiver to not only receive commands but also transmit real-time status and sensor data (e.g temperature, voltage, attitude/acceleration, and vehicle speed) back to the transmitter, facilitating data monitoring and system feedback.
Built-In Data Passthrough
The dedicated transparent data link function is deeply integrated into the RF system. Using a single RF transceiver link, it supports parameter configuration and firmware updates for the receiver system, simplifying the overall architecture.
Independent Identification System
Each transmitter and receiver possesses a unique identification code. Successful binding establishes this identity link. During operation, the system first performs identity verification; operation will not proceed if verification fails, thereby enhancing the system's active anti-interference capability and operational stability.
User-Friendly Interface Design

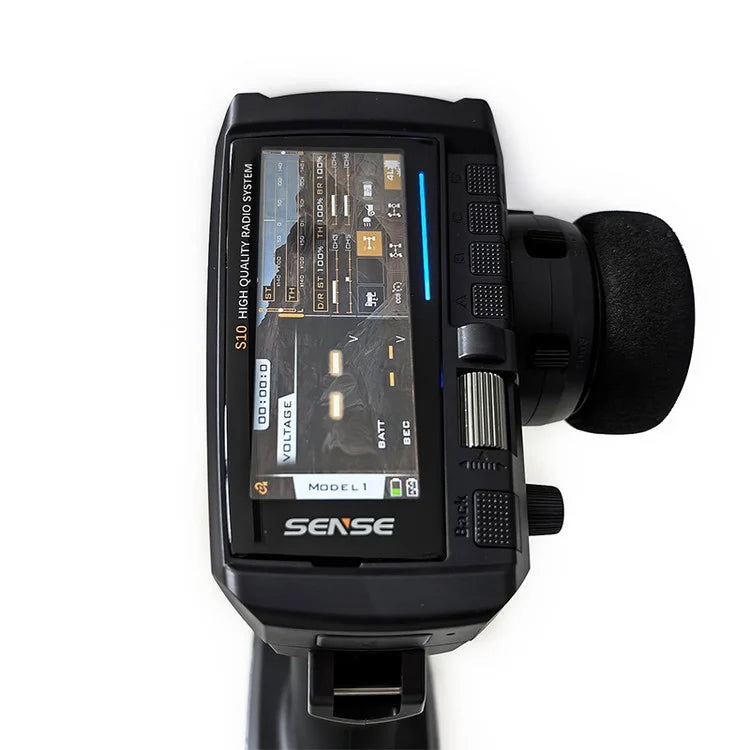

The device features an intuitive interface and a high-resolution display. All function settings are clearly presented, device status is monitored in real time, and operation is smooth and convenient.
Wi-Fi Firmware Updates
Supports over-the-air firmware updates for both the transmitter and receiver via WI-FI, enabling continuous access to new features and enhancing the product experience and long-term value.
Dual Battery Power and Backup
The system provides a dual power supply configuration utilizing both 18650 and AAA batteries, featuring seamless battery switching and backup functionality. This design effectively eliminates range anxiety and ensures extended operating time.
Contents
- (1) Sense Innovations S10 10-Channel Transmitter
- (1) 18650 Lithium Battery (installed)
- (1) Small Silicone Grip (installed)
- (1) S10RX 10-Channel Receiver with Gyro
- (2) Receiver Antenna Protectors
- (1) Type-C USB Cable
- (1) Battery Voltage Detector Cable (BVD)
- (1) Wrist Strap
- (1) Medium Silicone Grip
- Quick Start Guide
